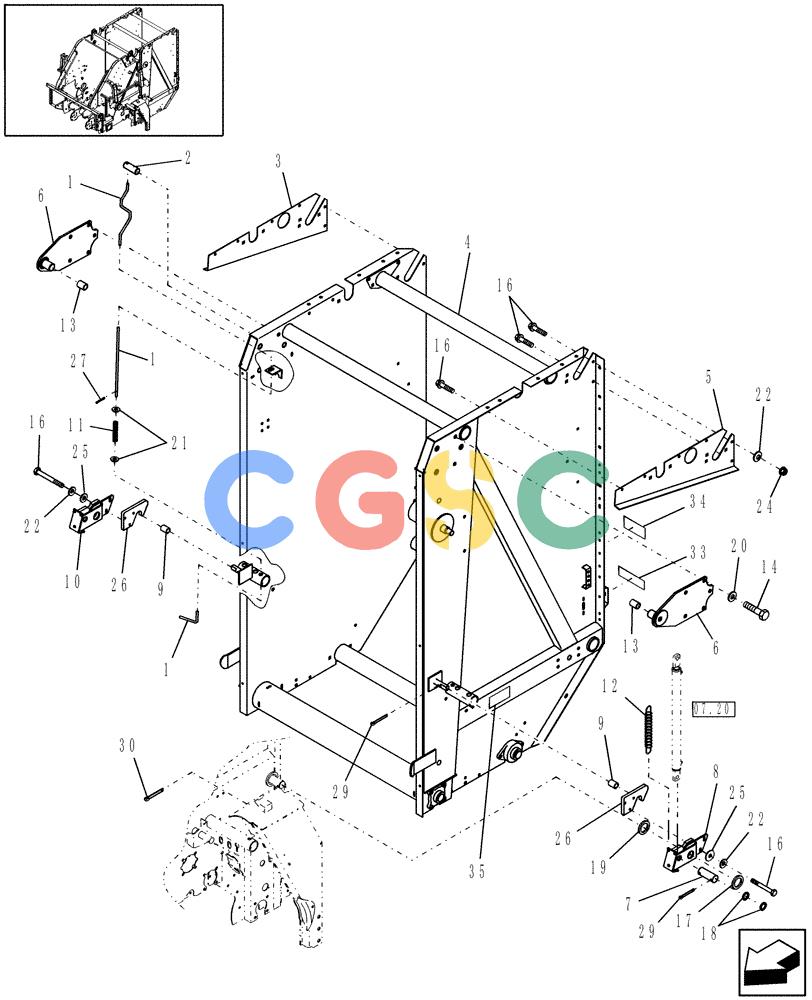

| 1. |
86637214
|
[1] |
ROD
|
NH
|
| 2. |
9845448
|
[1] |
PIN,31.7mm OD x 83.7mm L
|
NH
|
| 3. |
86624701
|
[1] |
SUPPORT
|
PA
RH
|
| 4. |
87019779
|
[1] |
TAILGATE
|
PA
North America
|
| 4. |
86624584
|
[1] |
TAILGATE
|
NH
Europe & R.O.W.
|
| 5. |
86624699
|
[1] |
SUPPORT
|
PA
LH
|
| 6. |
86637243
|
[2] |
PLATE ASSY.
|
NH
Superseded by part number: 47798993
|
| 7. |
166065
|
[2] |
PIN,25.4mm OD x 66.5mm L
|
NH
Clevis, 1" x 2-5/8"
|
| 8. |
86613584
|
[1] |
LATCH
|
PA
LH
|
| 8. |
84216964
|
[1] |
LATCH
|
NH
LH, Serial Range: -Y9N043141 Superseded by part number: 47748162
|
| 9. |
9829271
|
[2] |
SPACER
|
NH
|
| 10. |
86624248
|
[1] |
LATCH
|
PA
RH
|
| 10. |
84216997
|
[1] |
LATCH
|
NH
RH, Serial Range: -Y9N043141
|
| 11. |
86628108
|
[1] |
SPRING
|
NH
Compression
|
| 12. |
86572215
|
[2] |
SPRING,Extension, 25.58mm OD x 240.18mm L
|
NH
Extension
|
| 13. |
86514470
|
[2] |
BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L
|
NH
|
| 14. |
614-16040
|
[10] |
BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86509867
|
| 15. |
844-10025
|
[8] |
BOLT,Hex, M10 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804261
|
| 16. |
43139
|
[12] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 17. |
86636633
|
[1] |
WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk
|
NH
|
| 18. |
495-11106
|
[2] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 19. |
86603125
|
[4] |
WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk
|
NH
2-3/8" OD
|
| 20. |
273127
|
[10] |
WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk
|
NH
Special, 1-1/8" OD
|
| 21. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 22. |
140045
|
[12] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 24. |
825-1410
|
[12] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 25. |
285072
|
[6] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
|
| 26. |
87709060
|
[2] |
LATCH
|
NH
, Serial Range: -Y9N043141
|
| 26. |
84217007
|
[2] |
HOOK
|
NH
, Start Serial: Y9N043142
|
| 27. |
432-812
|
[1] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 29. |
432-1228
|
[6] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 30. |
88182
|
[2] |
COTTER PIN,1/4" OD x 2" L
|
NH
|
| 33. |
86547781
|
[2] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
| 34. |
86631516
|
[1] |
WARNING DECAL
|
NH
English
|
| 34. |
86632799
|
[1] |
DANGER DECAL
|
NH
WARNING, French
|
| 35. |
86631519
|
[3] |
DANGER DECAL
|
NH
English
|
| 35. |
86632802
|
[3] |
DECAL
|
NH
DANGER, French
|
