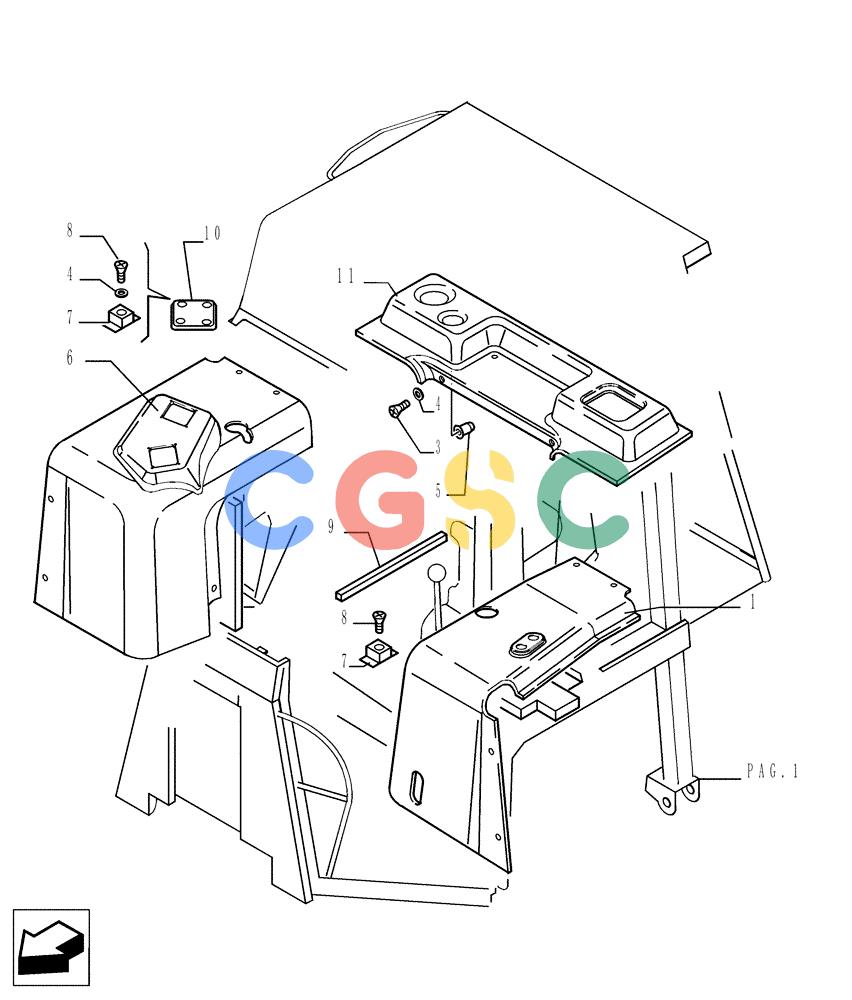

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[12]) - ROPS CANOPY - COVERING - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
678 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067623 | [1] | SOFT TRIM | LEC- UPPER LEFT |
| 2. | 76067345 | [1] | ADJUSTING SLEEVE | LEC- FRONT LEFT |
| 3. | 79105220 | [16] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 4. | 76067309 | [20] | CUP WASHER | LEC |
| 5. | 15629711 | [16] | THREADED INSERT | BURM6 x 9.5 |
| 6. | 76067622 | [1] | SOFT TRIM | LEC- UPPER RIGHT |
| 7. | 76047274 | [8] | NUT,M6 x 1 | LEC |
| 8. | 13313217 | [8] | SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd | LEC |
| 9. | 76067665 | [1] | SEAL | LEC |
| 10. | 76067471 | [1] | SOFT TRIM | LEC- CONTROLS |
| 11. | 76067621 | [1] | SOFT TRIM | LEC- REAR |
