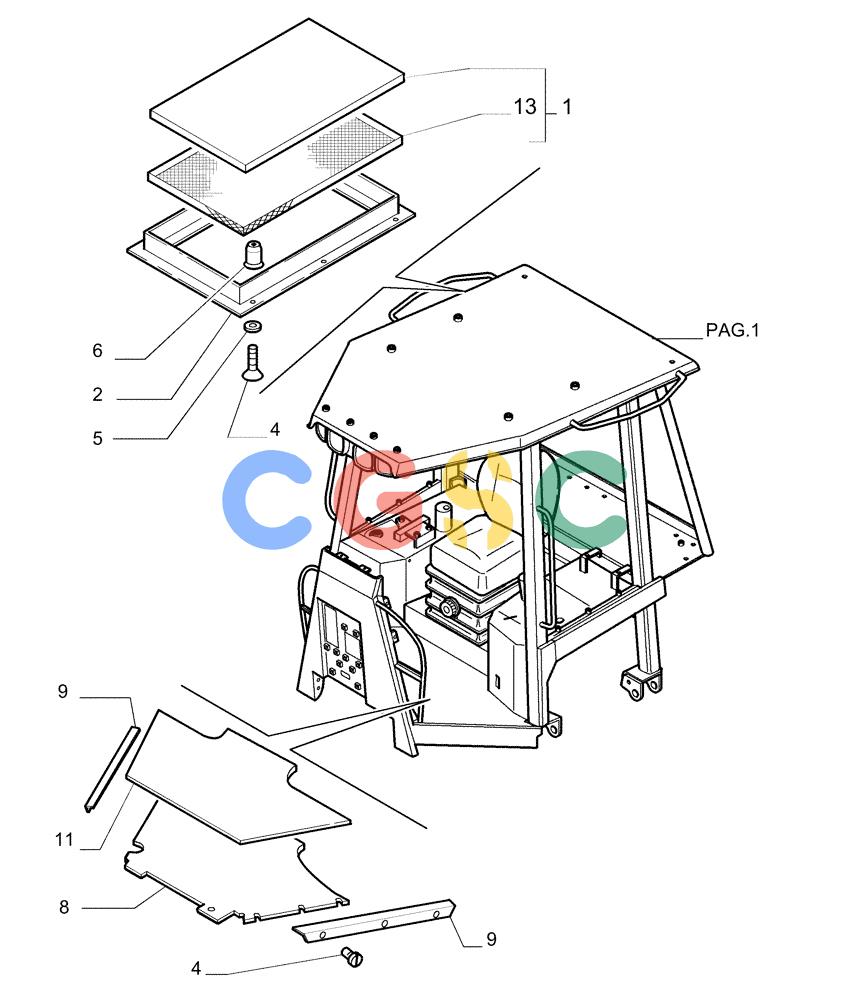

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[11]) - ROPS CANOPY - COVERING - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067720 | [1] | SOFT TRIM | LEC- UPPER ASSY |
| 2. | 76067620 | [1] | CAPPING | LEC |
| 4. | 79105220 | [22] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 5. | 76067309 | [22] | CUP WASHER | LECNylon |
| 6. | 15629711 | [6] | THREADED INSERT | BURM6 x 9.5 |
| 8. | 76067624 | [1] | MAT | LECPVC |
| 9. | 76067625 | [2] | RETAINER | LEC- LEFT |
| 11. | 76067747 | [1] | FLOOR MAT | LEC |
| 13. | 76067619 | [1] | RETAINER | LEC- COVERING |
