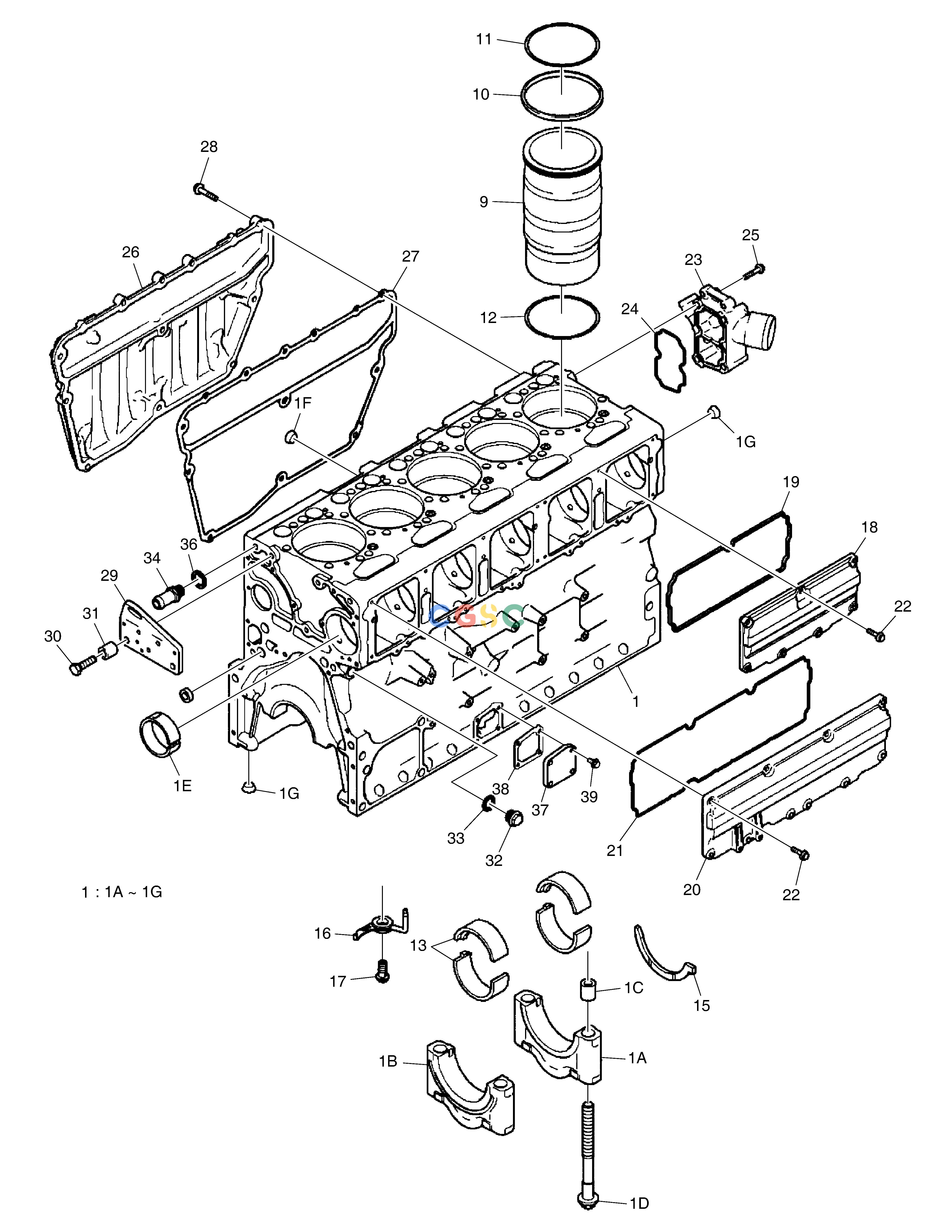

斗山零件查询CYLINDER BLOCK DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
847 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00701
|
[1] |
BLOC
|
|
| 10. |
401003-00356
|
[5] |
ANNEAU
|
|
| 11. |
401002-01344
|
[5] |
JOINT
|
|
| 12. |
401002-00699
|
[5] |
JOINT
|
|
| 13. |
140111-00016
|
[6] |
ROULEMENT
|
|
| 15. |
120816-00155
|
[4] |
RON DE LLE
|
|
| 16. |
430218-00176
|
[1] |
INJECTEUR
|
|
| 17. |
120705-00685
|
[1] |
VIS
|
|
| 18. |
110508-08924
|
[1] |
COUVERCLE
|
|
| 19. |
400602-00455
|
[1] |
GARNITURE
|
|
| 1A. |
NA02317
|
[5] |
PAC
|
|
| 1B. |
NA02317
|
[1] |
PAC
|
|
| 1C. |
110949-00316
|
[12] |
MANCHE
|
|
| 1D. |
120705-00835
|
[12] |
VIS
|
|
| 1E. |
131002-00381
|
[6] |
DOUILLE
|
|
| 1F. |
430221-00642
|
[1] |
BOUCHON
|
|
| 1G. |
430221-00583
|
[5] |
BOUCHON
|
|
| 20. |
110508-09994
|
[1] |
COUVERCLE
|
|
| 21. |
400602-00522
|
[1] |
GARNITURE
|
|
| 22. |
120705-00747
|
[14] |
VIS
|
|
| 23. |
NA00456
|
[1] |
FLANGE
|
|
| 24. |
400602-00467
|
[1] |
GARNITURE
|
|
| 25. |
120705-00735
|
[4] |
VIS
|
|
| 26. |
110508-19457
|
[1] |
COUVERCLE
|
|
| 27. |
400602-00726
|
[1] |
|
|
| 28. |
120705-00753
|
[7] |
VIS
|
|
| 29. |
110411-00221
|
[1] |
SUPPORT
|
|
| 30. |
120705-00703
|
[3] |
VIS
|
|
| 31. |
110949-00647
|
[3] |
MANCHON
|
|
| 32. |
430221-00586
|
[1] |
BOUCHON
|
|
| 33. |
120808-00541
|
[1] |
RON DE LLE
|
|
| 34. |
430208-00232
|
[1] |
|
|
| 36. |
120808-00541
|
[2] |
RON DE LLE
|
|
| 37. |
110508-19458
|
[1] |
COUVERCLE
|
|
| 38. |
400602-00456
|
[1] |
GARNITURE
|
|
| 39. |
120705-00730
|
[4] |
VIS
|
|
| 9. |
150117-00039
|
[5] |
CHEMISE DE CYLINDRE
|
|
