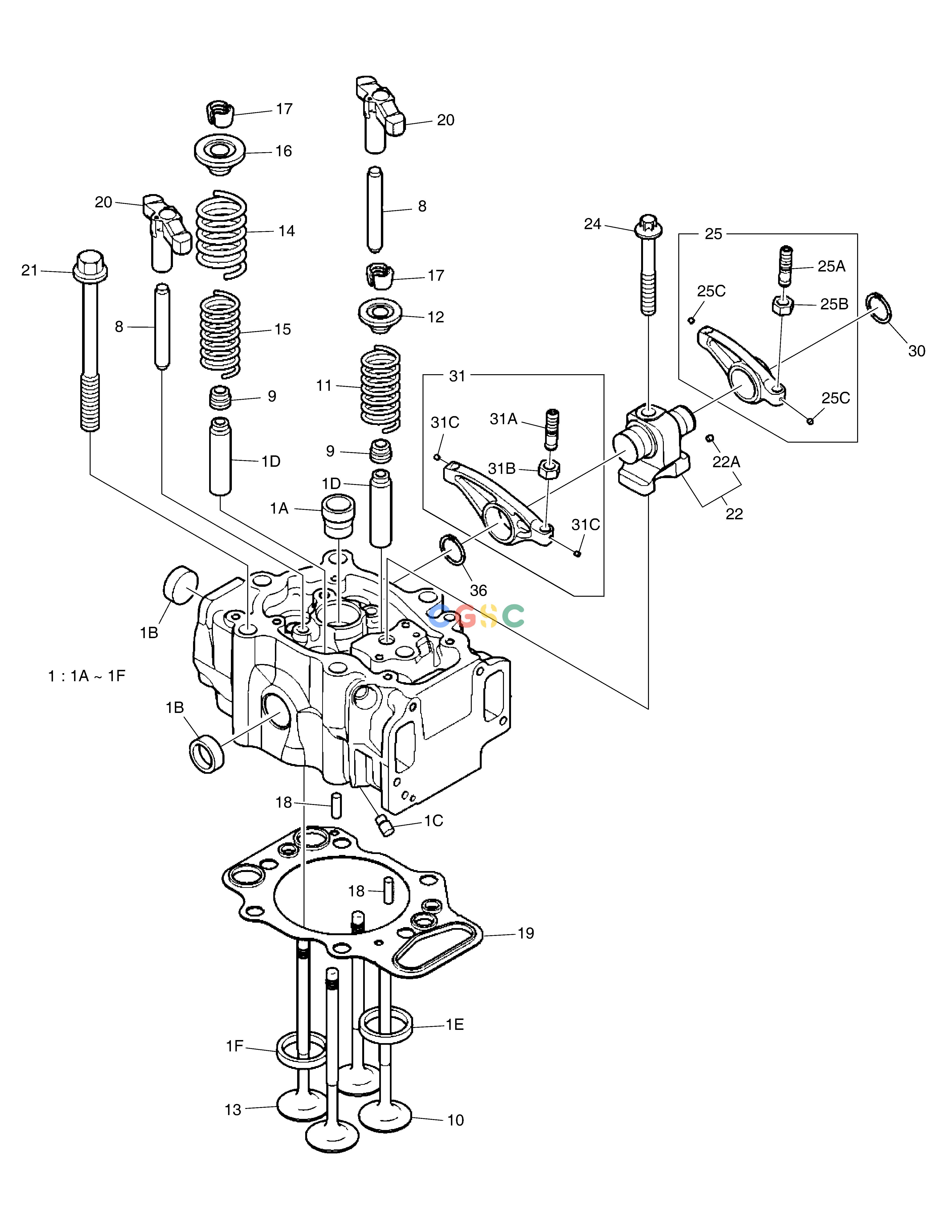

斗山零件查询CYLINDER HEAD DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150113-00262
|
[5] |
|
|
| 10. |
410112-00047
|
[2] |
|
|
| 11. |
111601-00429
|
[2] |
|
|
| 12. |
110917-00291
|
[2] |
COLLIER
|
|
| 13. |
410112-00057
|
[2] |
SOUPAPE
|
|
| 14. |
111601-00431
|
[2] |
|
|
| 15. |
111601-00430
|
[2] |
|
|
| 16. |
110917-00292
|
[2] |
|
|
| 17. |
410201-00032
|
[8] |
|
|
| 18. |
120501-02043
|
[2] |
|
|
| 19. |
400602-00473
|
[1] |
|
|
| 1A. |
110949-00587
|
[1] |
|
|
| 1B. |
430221-00582
|
[2] |
|
|
| 1C. |
120407-00033
|
[2] |
|
|
| 1D. |
110922-00468
|
[4] |
GUI DE -SOUPAPE
|
|
| 1E. |
401107-01143
|
[2] |
|
|
| 1E. |
401107-01144
|
[2] |
|
|
| 1F. |
401107-01145
|
[2] |
JOINT
|
|
| 1F. |
401107-01146
|
[2] |
JOINT
|
|
| 20. |
160606-00005
|
[2] |
|
|
| 21. |
120705-00708
|
[6] |
|
|
| 22. |
110411-00137
|
[1] |
|
|
| 22A. |
430221-00592
|
[1] |
|
|
| 24. |
120705-00710
|
[1] |
|
|
| 25. |
150101-00040
|
[1] |
|
|
| 25A. |
120702-00031
|
[1] |
|
|
| 25B. |
120307-00114
|
[1] |
ECROU
|
|
| 25C. |
430221-00593
|
[2] |
|
|
| 30. |
401003-00354
|
[1] |
|
|
| 31. |
150101-00039
|
[1] |
|
|
| 31A. |
120702-00031
|
[1] |
|
|
| 31B. |
120307-00114
|
[1] |
ECROU
|
|
| 31C. |
430221-00593
|
[2] |
|
|
| 36. |
401003-00355
|
[1] |
|
|
| 8. |
120501-02048
|
[2] |
|
|
| 9. |
401107-01142
|
[4] |
JOINT
|
|
