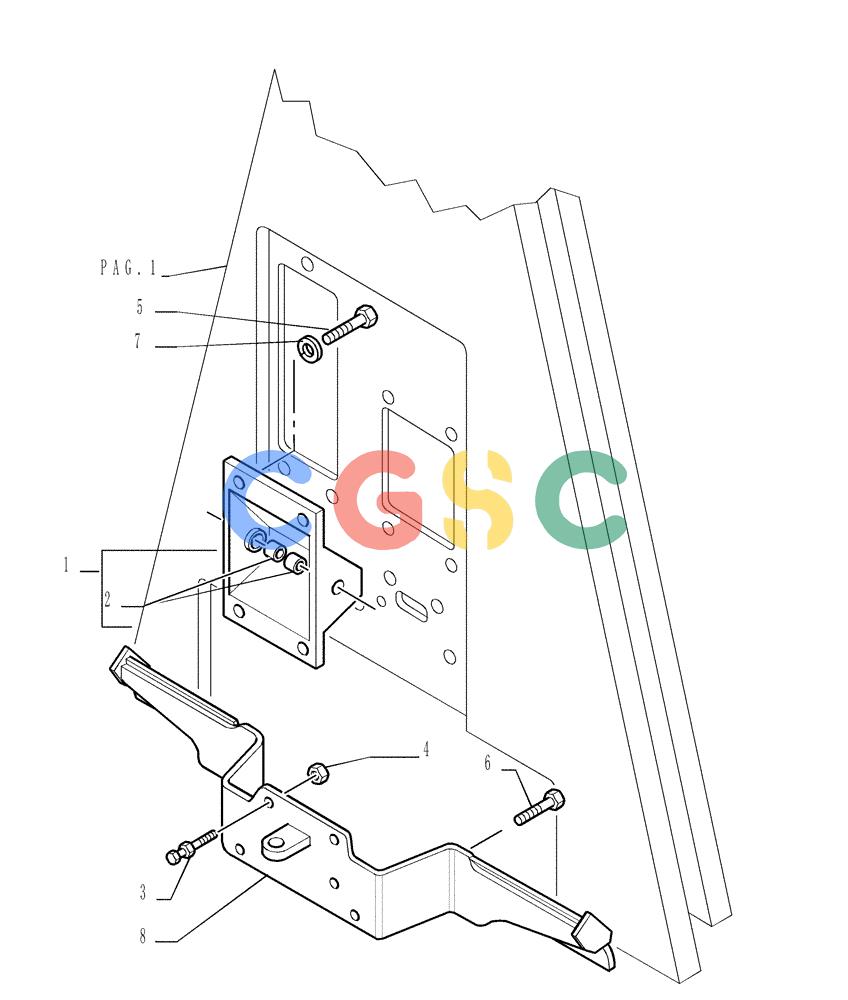

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[14]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
427 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046806 | [1] | SUPPORT | LEC- ASSY |
| 2. | 79048068 | [2] | ROLLER BEARING,20 mm ID x 26 mm OD x 16 mm | LEC20X26X16 Superseded by part number: 5188063 |
| 3. | 79102461 | [1] | PIN | LEC |
| 4. | 12575621 | [1] | NUT | TTF10X1,5 Superseded by part number: 12574521 |
| 5. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 6. | 11106424 | [3] | SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd | IMO Superseded by part number: 9515003 |
| 8. | 76046804 | [1] | FOOTREST | LEC16X1,5X5 |
