纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[15]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
672 次

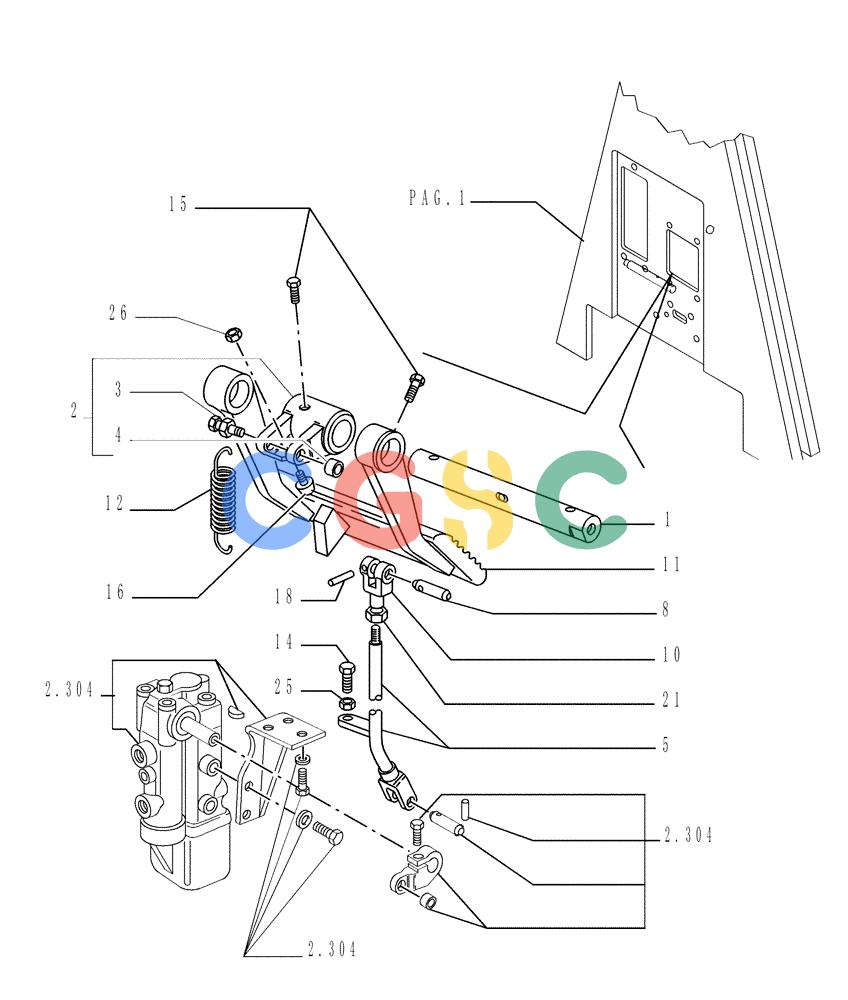

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103849 | [1] | PIN,20mm OD x 200mm L | LEC |
| 2. | 79103841 | [1] | HUB | LEC- ASSY |
| 3. | 79087266 | [1] | PIN | LEC |
| 4. | 79087112 | [1] | BUSHING,Needle, 10mm ID x 14mm OD x 10mm W | LEC |
| 5. | 76046982 | [1] | TIE-ROD | LEC |
| 8. | 79103848 | [1] | PIN,10mm OD x 38mm L | LEC |
| 10. | 79103837 | [1] | YOKE | LEC |
| 11. | 79089497 | [1] | PEDAL | LEC |
| 12. | 79097662 | [1] | SPRING | LEC |
| 14. | 76031346 | [1] | SCREW,Rd Slotted, M8 x 1.25 x 47mm | LEC |
| 15. | 569475 | [3] | SCREW | LEC Superseded by part number: 4968815 |
| 16. | 76037282 | [1] | BLOCK | LEC |
| 18. | 14163170 | [1] | LOCK PIN,M4 x 24, Slotted | TTF Superseded by part number: 73172188 |
| 21. | 11701714 | [1] | NUT | LEC10X1,5 Superseded by part number: 17038131 |
| 25. | 16102321 | [1] | THIN NUT,Thin, M8 x 1.25, Cl 05 | TTF Superseded by part number: 103889 |
| 26. | 12575621 | [1] | NUT | TTF10X1,25X12,3 Superseded by part number: 12574521 |
