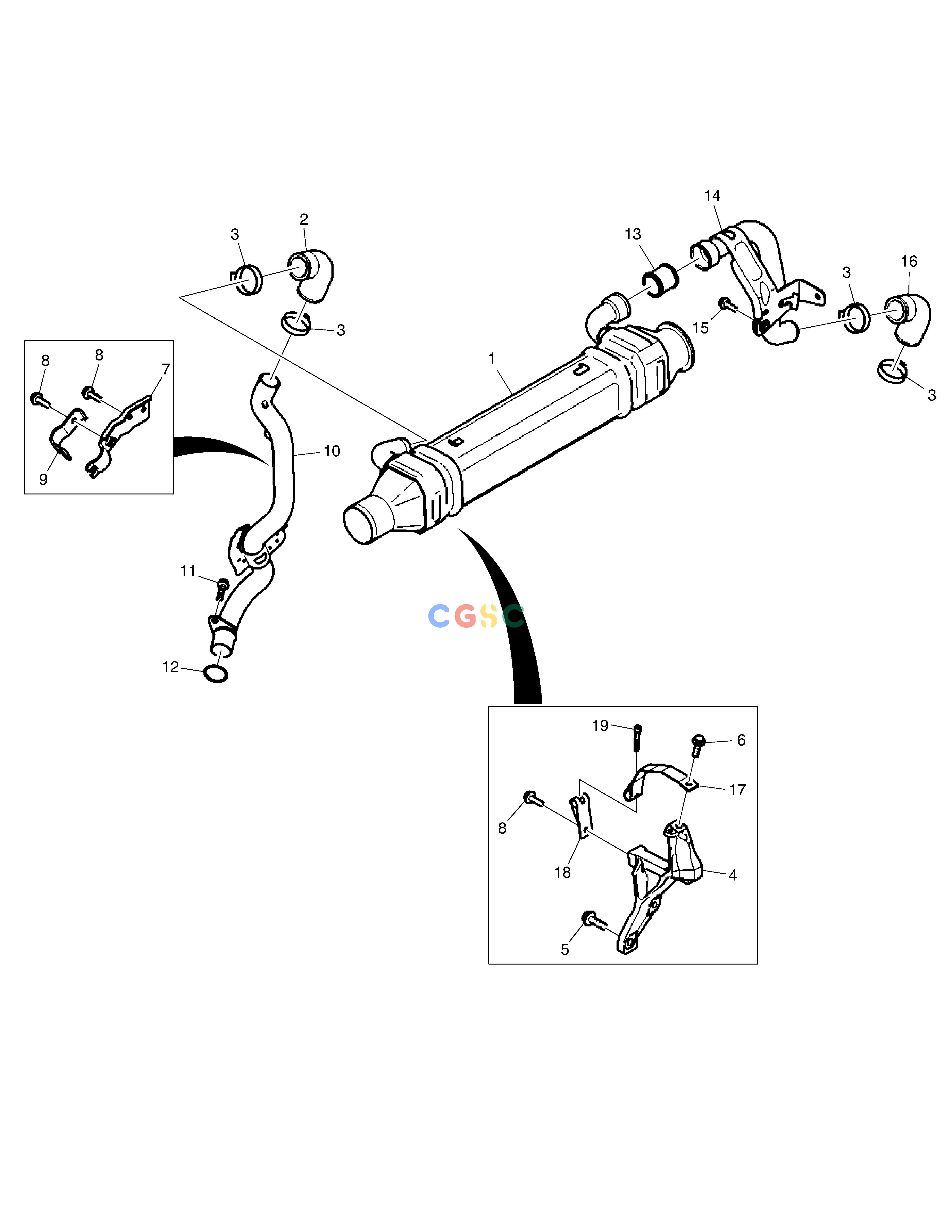

斗山零件查询EGR COOLER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
377 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400202-00162
|
[1] |
|
|
| 10. |
120202-00275
|
[1] |
|
|
| 11. |
120705-00730
|
[3] |
VIS
|
|
| 12. |
401002-00687
|
[1] |
JOINT
|
|
| 13. |
420211-00646
|
[1] |
|
|
| 14. |
120202-00276
|
[1] |
|
|
| 15. |
120705-00742
|
[3] |
|
|
| 16. |
430208-00532
|
[1] |
|
|
| 17. |
120203-00593
|
[2] |
|
|
| 18. |
120402-00458
|
[2] |
|
|
| 19. |
120106-00660
|
[2] |
|
|
| 2. |
430208-00532
|
[1] |
|
|
| 3. |
120202-00222
|
[4] |
|
|
| 4. |
110411-00234
|
[2] |
|
|
| 5. |
MX351906
|
[4] |
|
|
| 6. |
120705-00733
|
[2] |
VIS
|
|
| 7. |
120202-00273
|
[1] |
|
|
| 8. |
120705-00687
|
[7] |
VIS
|
|
| 9. |
120202-00274
|
[1] |
|
|
