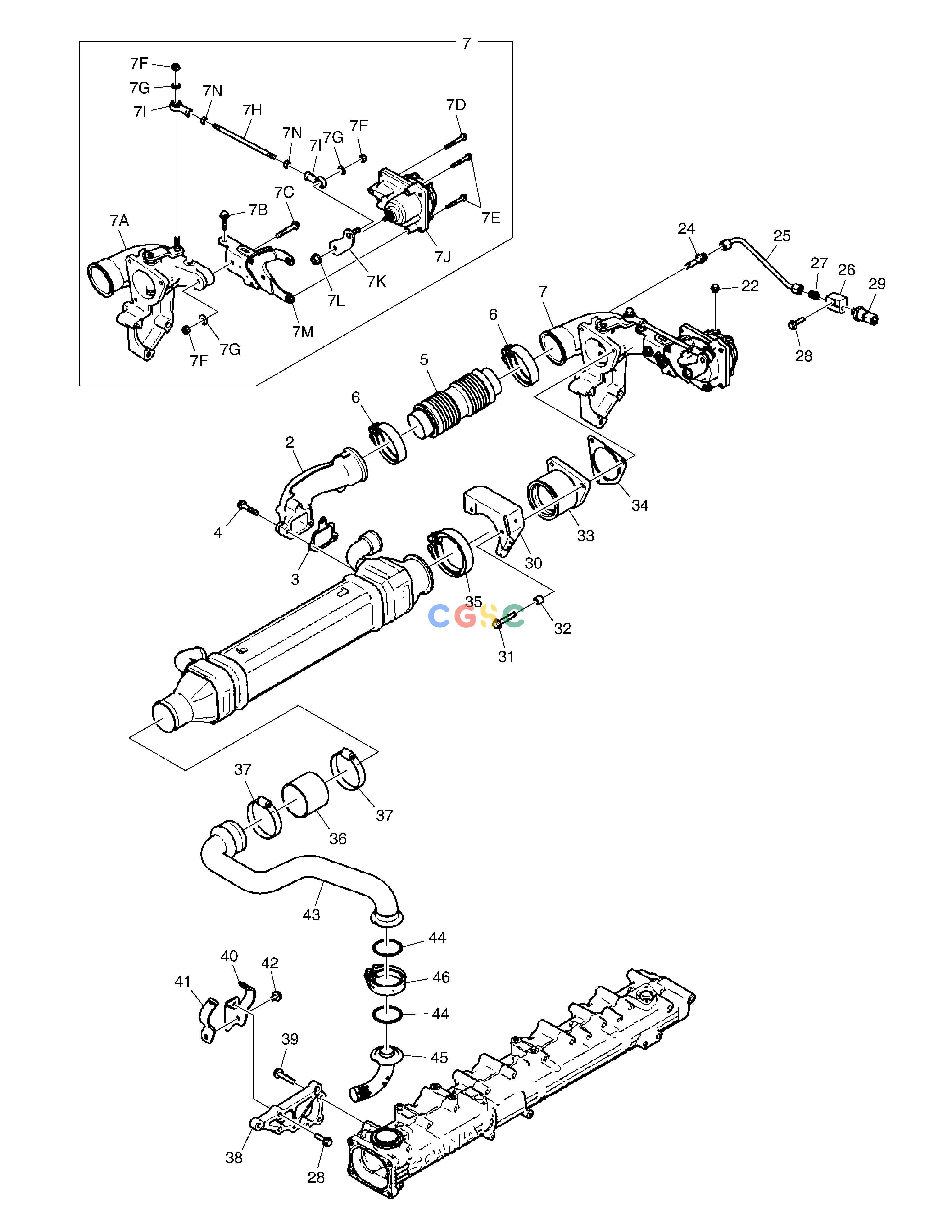

斗山零件查询EGR SYSTEM DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
185 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
420203-00469
|
[1] |
|
|
| 22. |
430221-00589
|
[2] |
BOUCHON
|
|
| 24. |
430208-00533
|
[1] |
|
|
| 25. |
420218-00362
|
[1] |
|
420210-02822
|
| 25. |
420210-02822
|
[1] |
|
|
| 26. |
430201-01267
|
[1] |
|
|
| 27. |
430208-00534
|
[1] |
|
|
| 28. |
120705-00731
|
[3] |
VIS
|
|
| 29. |
301309-00164
|
[1] |
|
|
| 3. |
400602-00731
|
[1] |
|
|
| 30. |
111002-00175
|
[1] |
|
|
| 31. |
120106-00653
|
[3] |
|
|
| 32. |
110949-00650
|
[3] |
|
|
| 33. |
420211-00647
|
[1] |
|
|
| 34. |
400602-00732
|
[1] |
|
|
| 35. |
120203-00594
|
[1] |
|
|
| 36. |
430208-00535
|
[1] |
|
|
| 37. |
120202-00277
|
[2] |
|
|
| 38. |
110411-00236
|
[1] |
|
|
| 39. |
120705-00732
|
[3] |
VIS
|
|
| 4. |
120106-00653
|
[3] |
|
|
| 40. |
110411-00237
|
[1] |
|
|
| 41. |
110411-00238
|
[1] |
|
|
| 42. |
120705-00729
|
[1] |
VIS
|
|
| 43. |
420203-00471
|
[1] |
|
|
| 44. |
401002-01348
|
[2] |
|
|
| 45. |
420218-00363
|
[1] |
|
|
| 46. |
120203-00595
|
[1] |
|
|
| 5. |
420203-00470
|
[1] |
|
|
| 6. |
120203-00294
|
[2] |
COLLIER
|
|
| 7. |
410116-00874
|
[1] |
|
|
| 7A. |
NA00528
|
[1] |
CARTER
|
|
| 7B. |
120705-00836
|
[1] |
VIS
|
|
| 7C. |
120705-00734
|
[1] |
VIS
|
|
| 7D. |
120106-00661
|
[1] |
|
|
| 7E. |
120106-00662
|
[2] |
|
|
| 7F. |
120311-00195
|
[3] |
|
|
| 7G. |
120808-00784
|
[3] |
RONDELLE
|
|
| 7H. |
130712-01558
|
[1] |
REMARQUES
|
|
| 7I. |
101539-00309
|
[2] |
ARTICULATION
|
|
| 7J. |
410116-00875
|
[1] |
|
|
| 7K. |
111601-00760
|
[1] |
|
|
| 7L. |
120311-00196
|
[1] |
ECROU
|
|
| 7M. |
110411-00235
|
[1] |
|
|
| 7N. |
120312-00390
|
[2] |
ECROU
|
|
