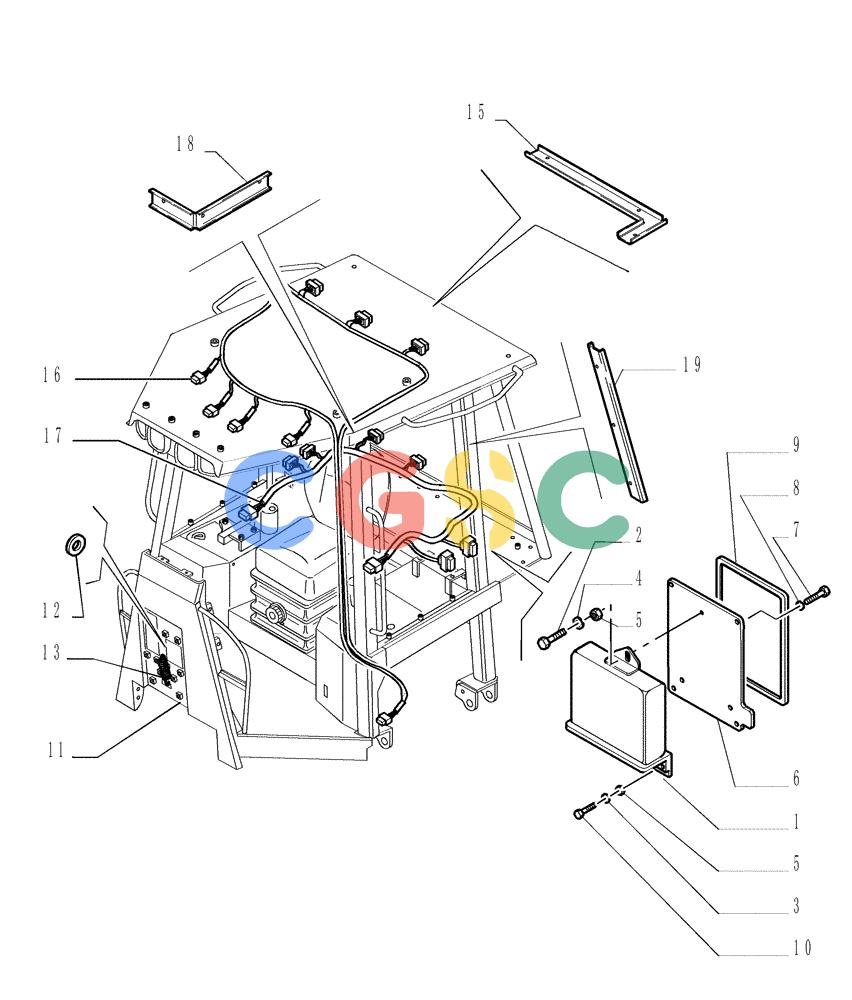

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[18]) - ROPS CANOPY - ELECTRIC COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
595 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092397 | [1] | CONTROLLER | LEC |
| 1. | 76092397R | [1] | REMAN-ELECTRONIC CONTROL UNIT | RACD150 CRAWLER DOZER (1/05-) |
| 1. | 76092397C | [1] | CORE-ELECTRONIC CONTROL UNIT | RACReturn Number |
| 2. | 14305221 | [1] | HEX SOC SCREW,M6 x 16mm, Cl 12.9 | IMO |
| 3. | 14496431 | [6] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 4. | 10571574 | [3] | LOCK WASHER | LEC6,1X1,6 Superseded by part number: 17798174 |
| 5. | 15896211 | [3] | NUT,M6, Cl 8 | JES Superseded by part number: 17037821 |
| 6. | 76067615 | [1] | COVER | LEC |
| 7. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 8. | 14496501 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | TTF Superseded by part number: 86624184 |
| 9. | 76067456 | [1] | SEAL | LEC |
| 10. | 14303931 | [2] | HEX SOC SCREW,M6 x 70mm, Cl 10.9 | TOR Superseded by part number: 14303930 |
| 11. | 76067318 | [1] | PLATE | LEC |
| 12. | 11069476 | [2] | SNAP RING,M52, Ext | LEC |
| 13. | 9434187 | [3] | SPRING | LEC |
| 15. | 76079031 | [1] | SOFT TRIM | LEC |
| 16. | 76067800 | [1] | ELECTRIC CABLE | LEC- RIGHT |
| 17. | 76067614 | [1] | ELECTRIC CABLE | LEC- CAB |
| 18. | 76079032 | [1] | SOFT TRIM | LEC |
| 19. | 76079030 | [1] | SOFT TRIM | LEC |
