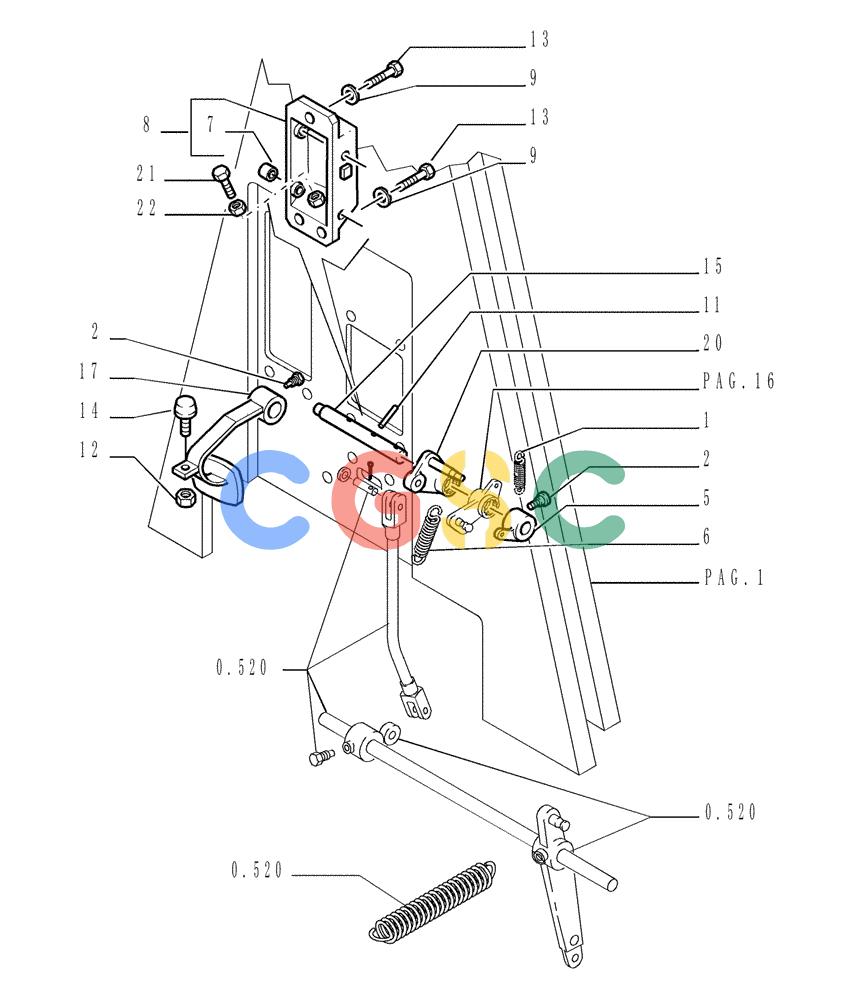

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[17]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
869 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 547515 | [1] | SPRING | LEC |
| 2. | 569475 | [4] | SCREW | LEC Superseded by part number: 4968815 |
| 5. | 79089244 | [1] | LEVER | LEC |
| 6. | 79093725 | [2] | SPRING | LEC |
| 7. | 79060774 | [2] | BUSHING | LEC |
| 8. | 76046977 | [1] | SUPPORT | LEC- ASSY |
| 9. | 14496631 | [8] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 11. | 14604270 | [1] | LOCK PIN,M6 x 32, Slotted | LEC |
| 12. | 11701714 | [1] | NUT | LEC Superseded by part number: 17038131 |
| 13. | 11106031 | [6] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 14. | 14420631 | [1] | HEX SOC SCREW,M10 x 1.5 x 50mm, Cl 10.9 | LEC |
| 15. | 79078966 | [1] | SHAFT | LEC |
| 17. | 76054843 | [1] | PEDAL | LEC |
| 20. | 79080389 | [1] | IDLER LEVER | LEC |
| 21. | 79086637 | [1] | SCREW,Rd Slotted, M8 x 1.25 x 32mm L | LEC |
| 22. | 16100814 | [1] | NUT,M8, Cl 8, DAC | LEC Superseded by part number: 16100811 |
