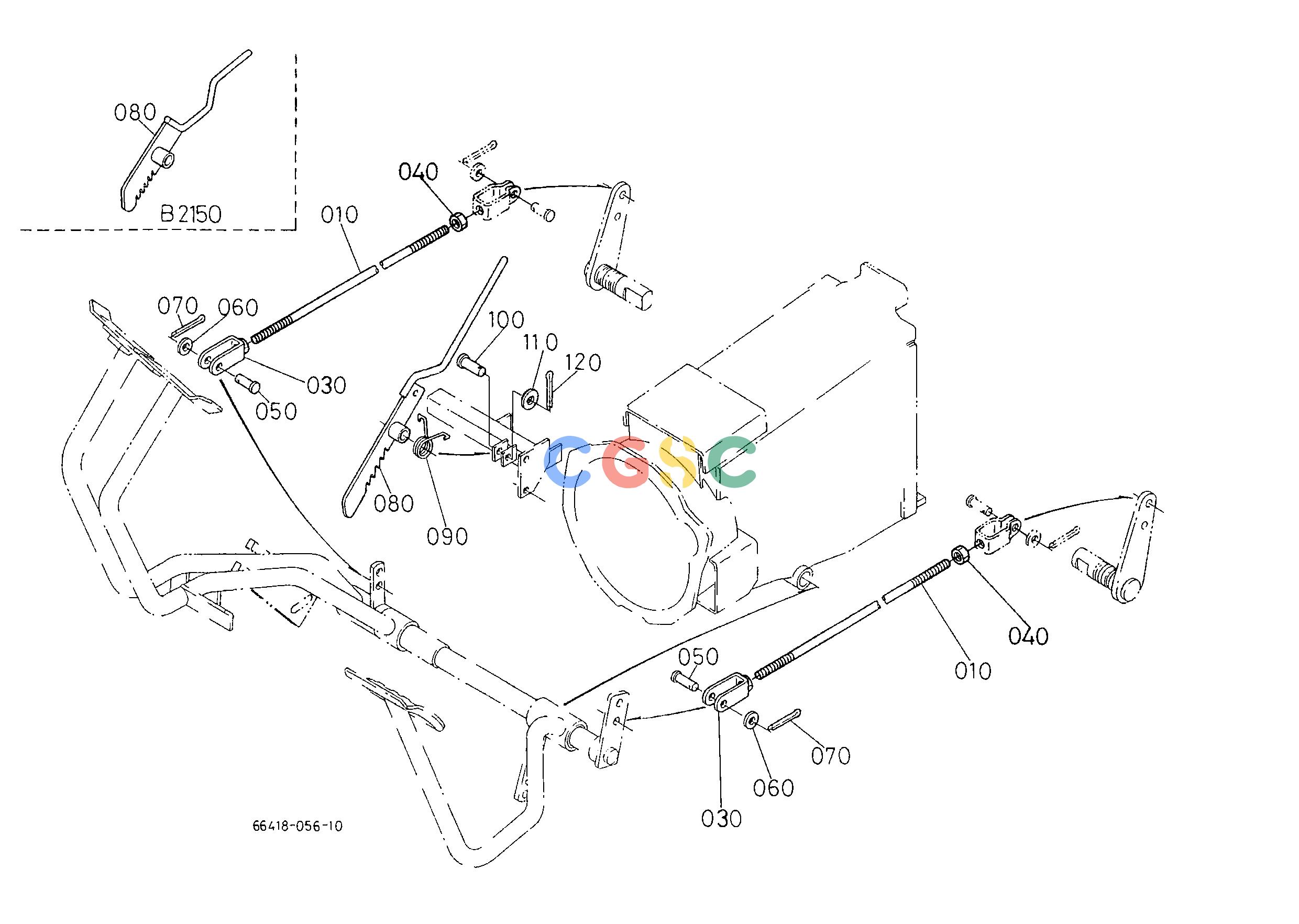

久保田零件查询T08100 BRAKE ROD BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780044510
|
[2] |
ROD BRAKE
|
0.4620(lbs); 0.210
|
| 030. |
6711144530
|
[2] |
U-JOINT
|
0.1056(lbs); 0.048
|
| 040. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 050. |
0512250822
|
[2] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 060. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
6780044555
|
[1] |
LEVER BRAKE LOCK
|
0.3300(lbs); 0.150
|
| 090. |
6780044560
|
[1] |
SPRING BRAKE LOCK
|
0.0330(lbs); 0.015
|
| 100. |
0512251235
|
[1] |
PIN JOINT
|
0.0748(lbs); 0.034
|
| 110. |
0401150120
|
[1] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 120. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
