久保田零件查询T08200 BRAKE PEDAL BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次

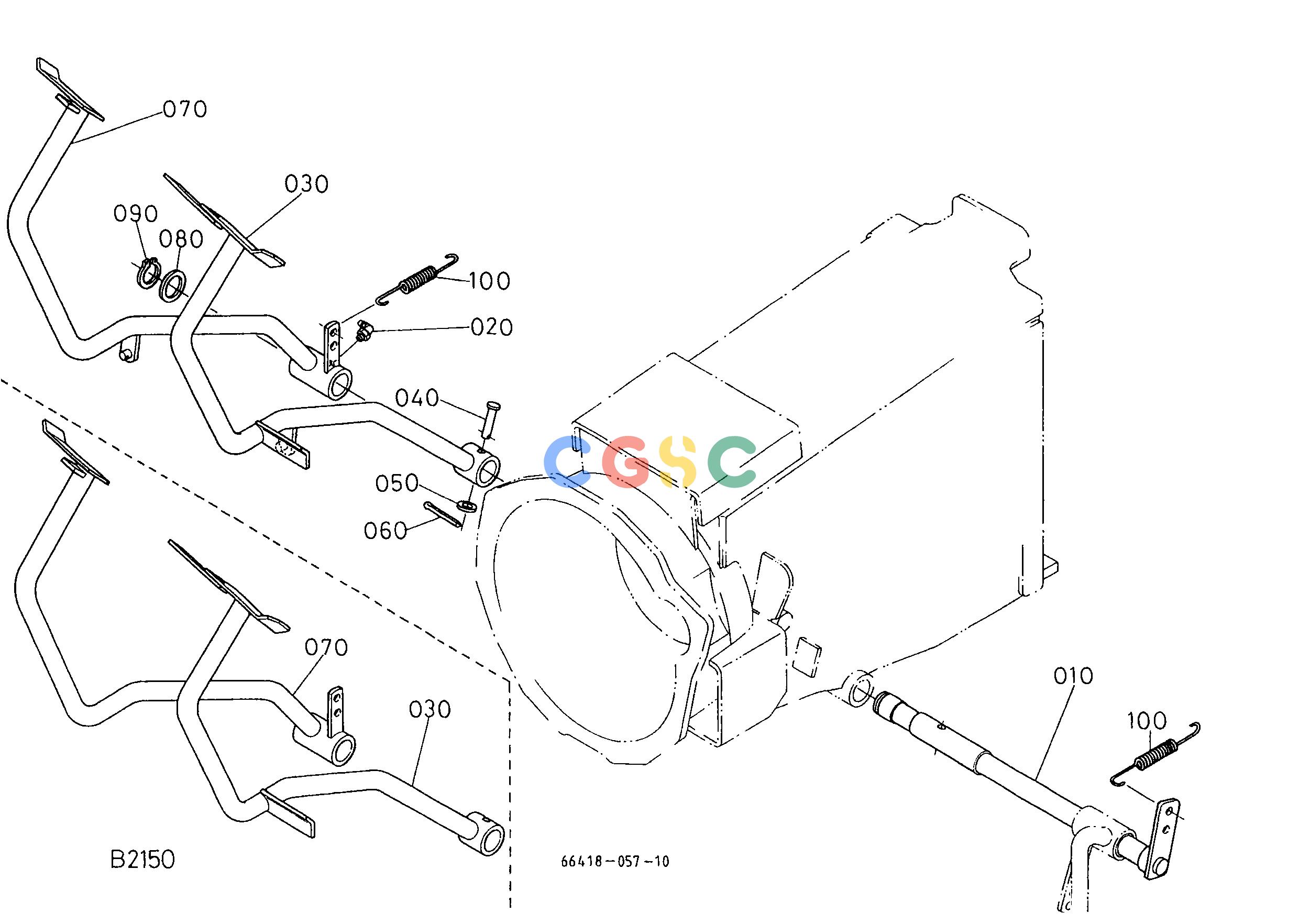

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6711144210
|
[1] |
SHAFT BRAKE PEDAL
|
3.4320(lbs); 1.560
|
| 020. |
6711144250
|
[2] |
NIPPLE GREASE
|
0.0110(lbs); 0.005
|
| 020. |
H666099100
|
[2] |
NIPPLE,GREASE
|
0.0110(lbs); 0.005
|
| 030. |
6641844310
|
[1] |
PEDAL BRAKE LH
|
3.9600(lbs); 1.800
|
| 040. |
0512250840
|
[1] |
PIN JOINT
|
0.0374(lbs); 0.017
|
| 050. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
6641844320
|
[1] |
PEDAL BRAKE RH
|
4.1800(lbs); 1.900
|
| 080. |
6659143233
|
[1] |
COLLAR
|
0.0088(lbs); 0.004
|
| 090. |
0461200240
|
[1] |
CIRCLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 100. |
6780044540
|
[2] |
SPRING BRAKE RETURN
|
0.0990(lbs); 0.045
|
