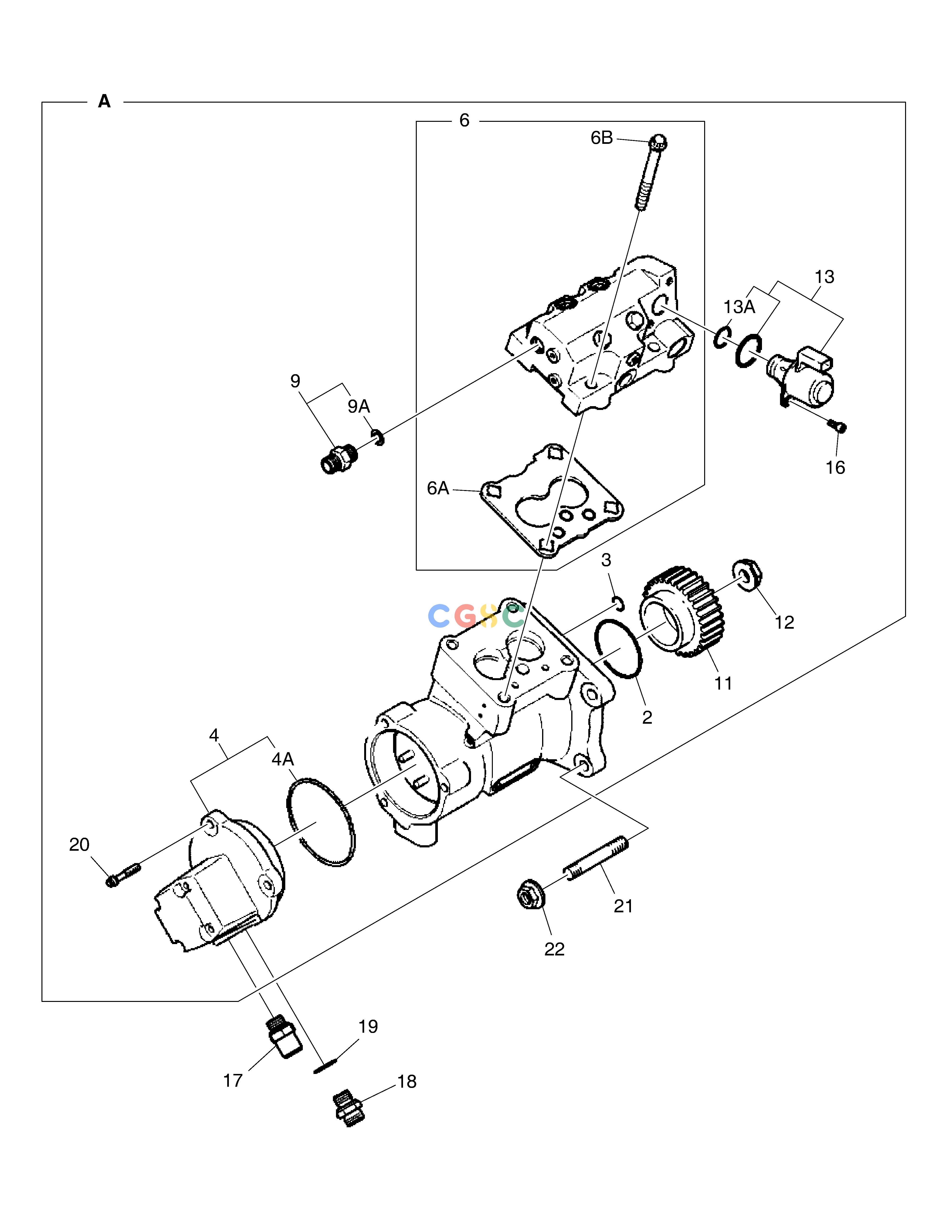

斗山零件查询FEED PUMP DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
640 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 11. |
130418-00363
|
[1] |
|
|
| 12. |
120305-00029
|
[1] |
|
|
| 13. |
410116-00515
|
[1] |
|
|
| 13A. |
401002-00713
|
[1] |
|
|
| 16. |
120705-00692
|
[2] |
|
|
| 17. |
430208-00441
|
[1] |
|
|
| 18. |
430208-00227
|
[1] |
CONNECTEUR
|
|
| 19. |
120808-00540
|
[1] |
RONDELLE
|
|
| 2. |
401002-00685
|
[1] |
|
|
| 20. |
120705-00731
|
[3] |
VIS
|
|
| 21. |
120408-00127
|
[4] |
GOUJON
|
|
| 22. |
120311-00111
|
[4] |
ECROU
|
|
| 3. |
401002-00707
|
[1] |
|
|
| 4. |
400908-00019
|
[1] |
|
|
| 4A. |
401107-01136
|
[1] |
|
|
| 6. |
150113-00504
|
[1] |
|
|
| 6A. |
400602-00466
|
[1] |
|
|
| 6B. |
120705-00709
|
[4] |
|
|
| 9. |
430208-00230
|
[1] |
|
|
| 9A. |
401107-01139
|
[1] |
|
|
| A. |
400909-00168
|
[1] |
POMPE
|
|
