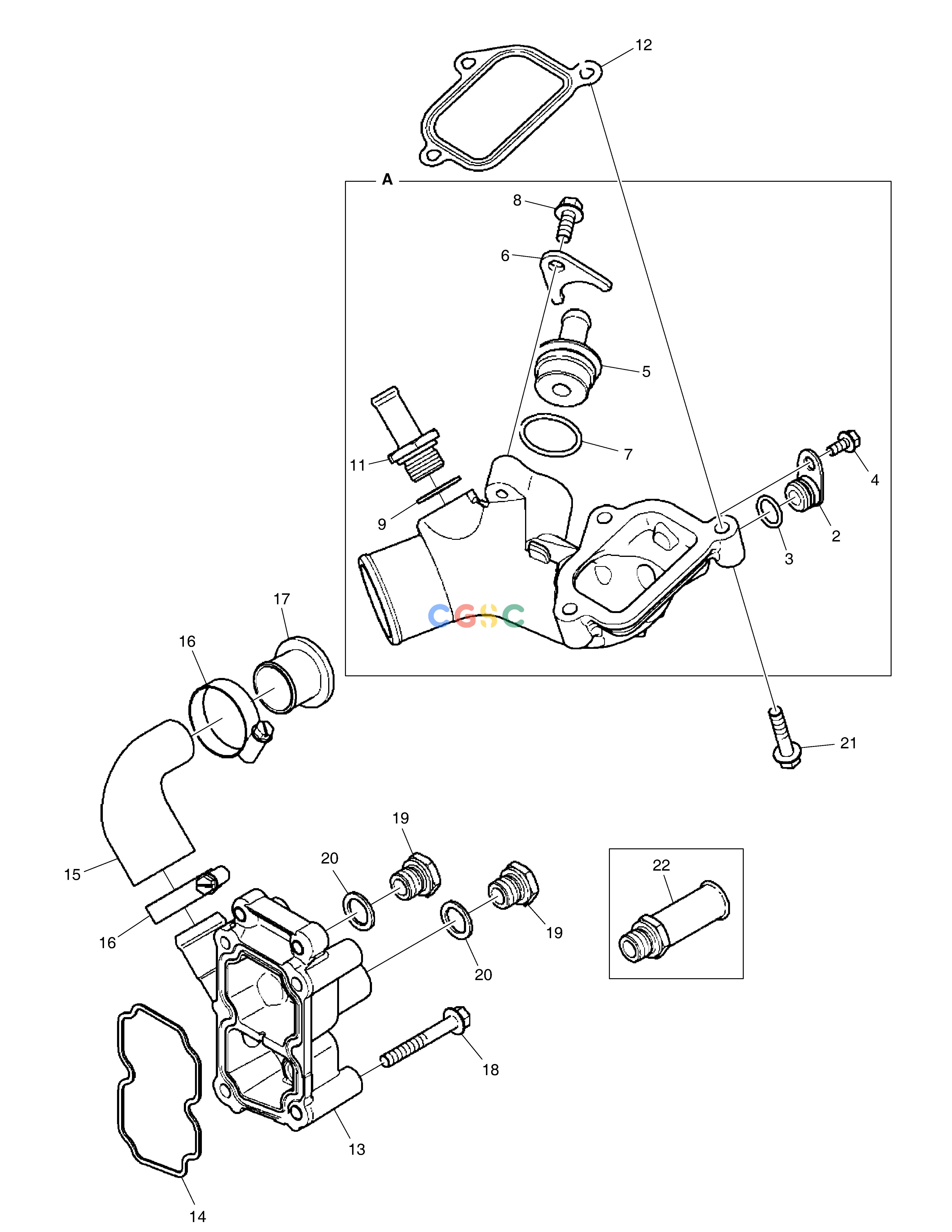

斗山零件查询FLANGE PIPE DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 11. |
430208-00228
|
[1] |
CONNECTEUR
|
|
| 12. |
400602-00462
|
[1] |
GARNITURE
|
|
| 13. |
110931-01235
|
[1] |
|
|
| 14. |
400602-00467
|
[1] |
GARNITURE
|
|
| 15. |
420108-00573
|
[1] |
|
|
| 16. |
120202-00144
|
[2] |
COLLIER DE LA CONDUITE
|
|
| 17. |
420210-00854
|
[1] |
|
|
| 18. |
120705-00735
|
[4] |
VIS
|
|
| 19. |
430221-00586
|
[2] |
BOUCHON
|
|
| 2. |
430221-00575
|
[1] |
BOUCHON
|
|
| 20. |
120808-00541
|
[2] |
RON DE LLE
|
|
| 21. |
120705-00732
|
[3] |
VIS
|
|
| 22. |
430208-00231
|
[1] |
CONNECTEUR
|
|
| 3. |
401002-00695
|
[1] |
JOINT
|
|
| 4. |
120705-00694
|
[1] |
VIS
|
|
| 5. |
430208-00229
|
[1] |
CONNECTEUR
|
|
| 6. |
110411-00121
|
[1] |
SUPPORT
|
|
| 7. |
401002-00687
|
[1] |
JOINT
|
|
| 8. |
120705-00730
|
[1] |
VIS
|
|
| 9. |
120808-00542
|
[1] |
RONDELLE
|
|
| A. |
420210-00866
|
[1] |
CONDUITE
|
|
