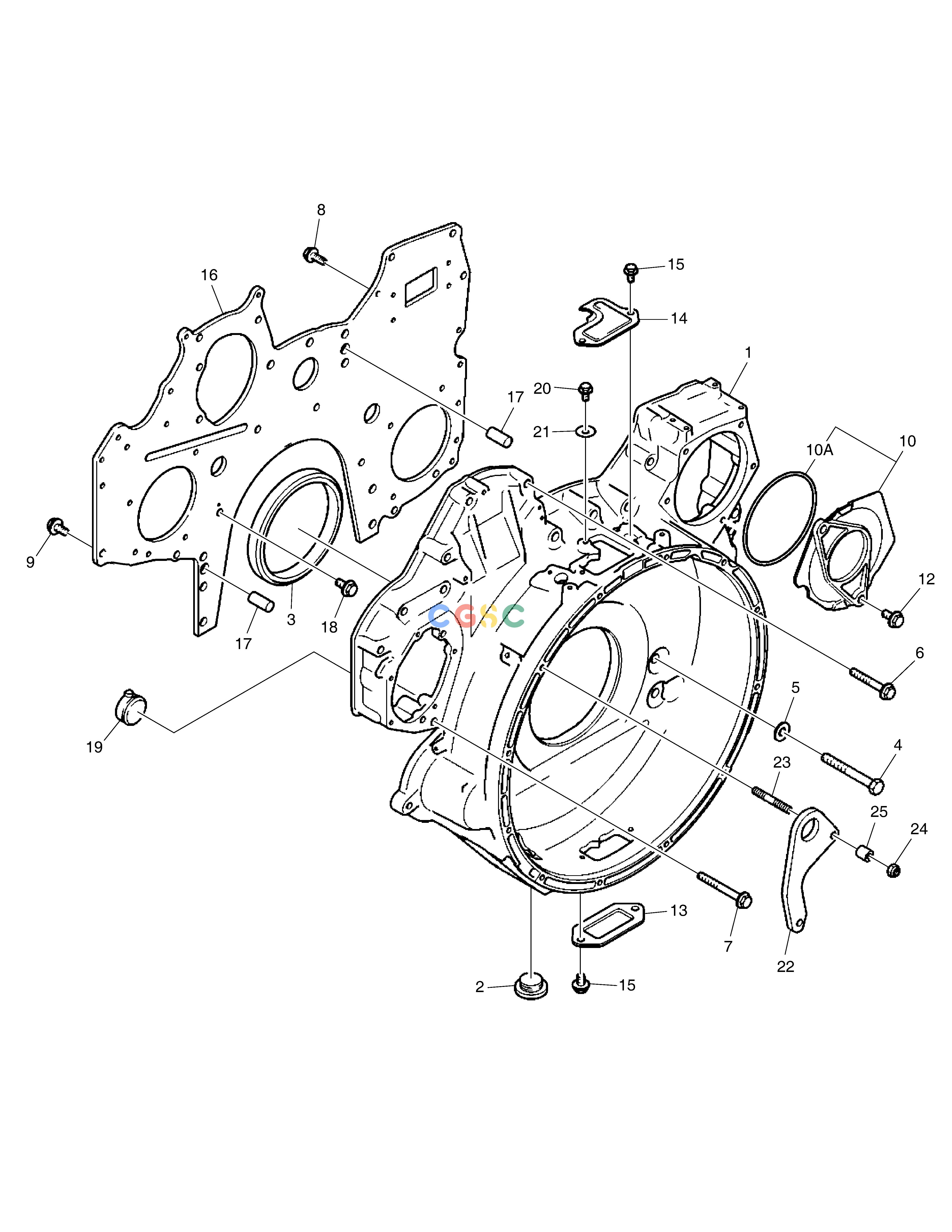

斗山零件查询FLYWHEEL HOUSING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
963 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150114-00145
|
[1] |
|
|
| 10. |
110508-08918
|
[1] |
|
|
| 10A. |
401002-00696
|
[1] |
|
|
| 12. |
120705-00739
|
[2] |
|
|
| 13. |
110508-08906
|
[1] |
|
|
| 14. |
110508-08913
|
[1] |
COUVERCLE
|
|
| 15. |
120705-00730
|
[4] |
VIS
|
|
| 16. |
250201-03081
|
[1] |
|
|
| 17. |
120501-02046
|
[2] |
|
|
| 18. |
120705-00746
|
[6] |
|
|
| 19. |
430221-00573
|
[1] |
|
|
| 2. |
110508-08909
|
[2] |
|
|
| 20. |
120705-00730
|
[1] |
VIS
|
|
| 21. |
120808-00537
|
[1] |
|
|
| 22. |
110411-00115
|
[2] |
|
|
| 23. |
MX509136
|
[12] |
|
|
| 24. |
120311-00111
|
[12] |
ECROU
|
|
| 25. |
MX509139
|
[4] |
|
|
| 3. |
401107-01137
|
[1] |
|
|
| 4. |
120705-00756
|
[9] |
|
|
| 5. |
120808-00533
|
[9] |
|
|
| 6. |
120705-00742
|
[11] |
|
|
| 7. |
120705-00743
|
[rq] |
VIS
|
|
| 8. |
120705-00739
|
[5] |
|
|
| 9. |
120705-00740
|
[1] |
|
|
