纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.701[01]) - BATTERY 100H - OPTIONAL CODE 780101001 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
640 次

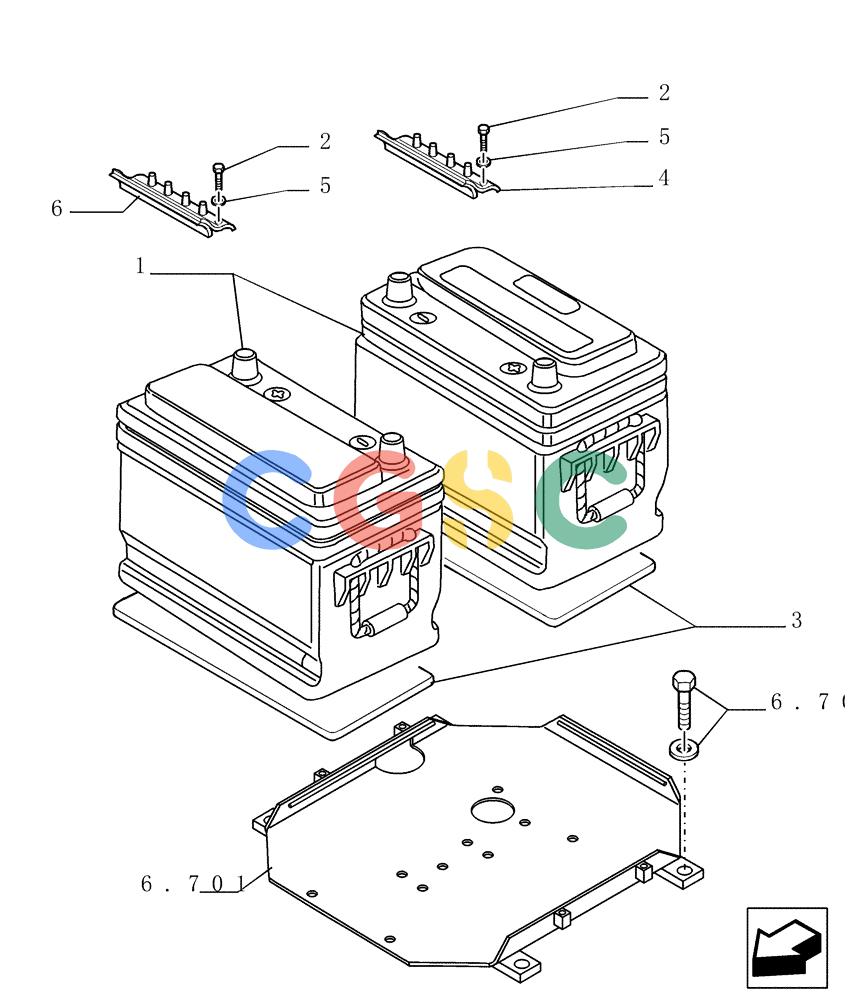

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054676 | [2] | DRY BATTERY | LEC12V - 100AH - 440A Superseded by part number: 73325162 |
| 2. | 16043631 | [8] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 3. | 4991456 | [2] | PLATE | TOR Superseded by part number: 79010787 |
| 4. | 79084347 | [2] | BRACKET | LEC |
| 5. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 6. | 79006036 | [2] | BRACKET | LEC |
