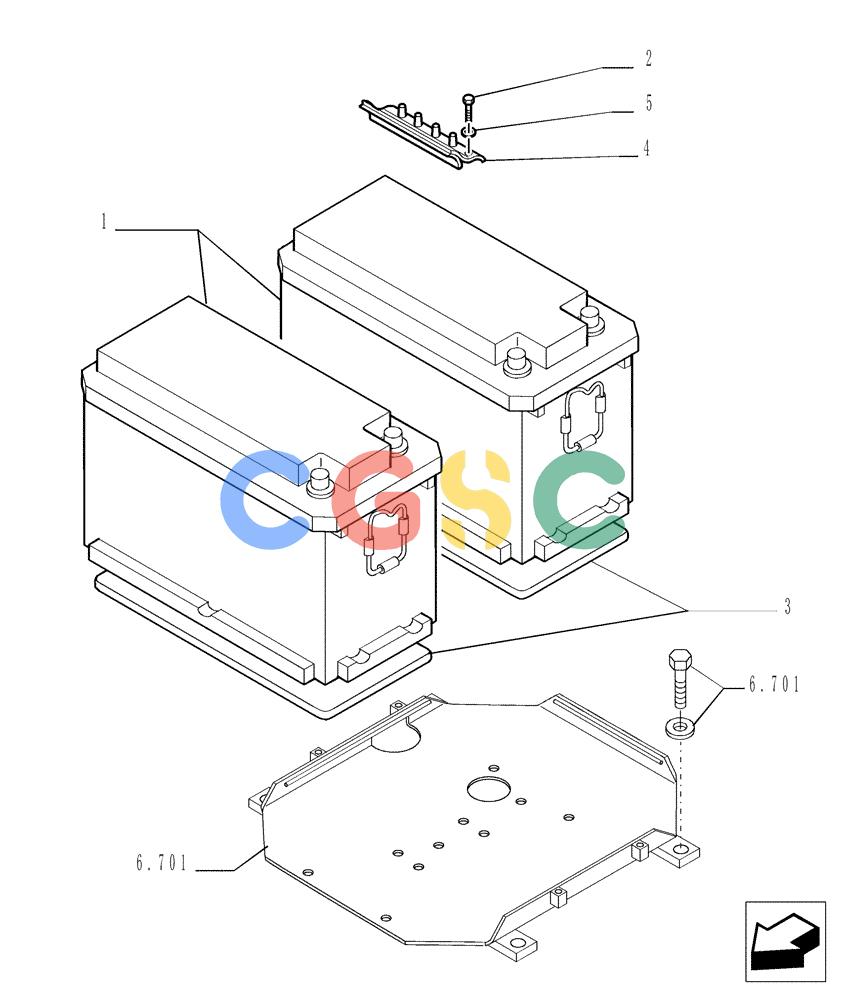

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.702[01]) - BATTERY 160H - OPTIONAL CODE 780102001 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
501 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054677 | [2] | DRY BATTERY | LEC12V - 160AH - 650A Superseded by part number: 73325166 |
| 2. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 3. | 79010787 | [2] | PLATE | LEC |
| 4. | 79006036 | [1] | BRACKET | LEC |
| 5. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
