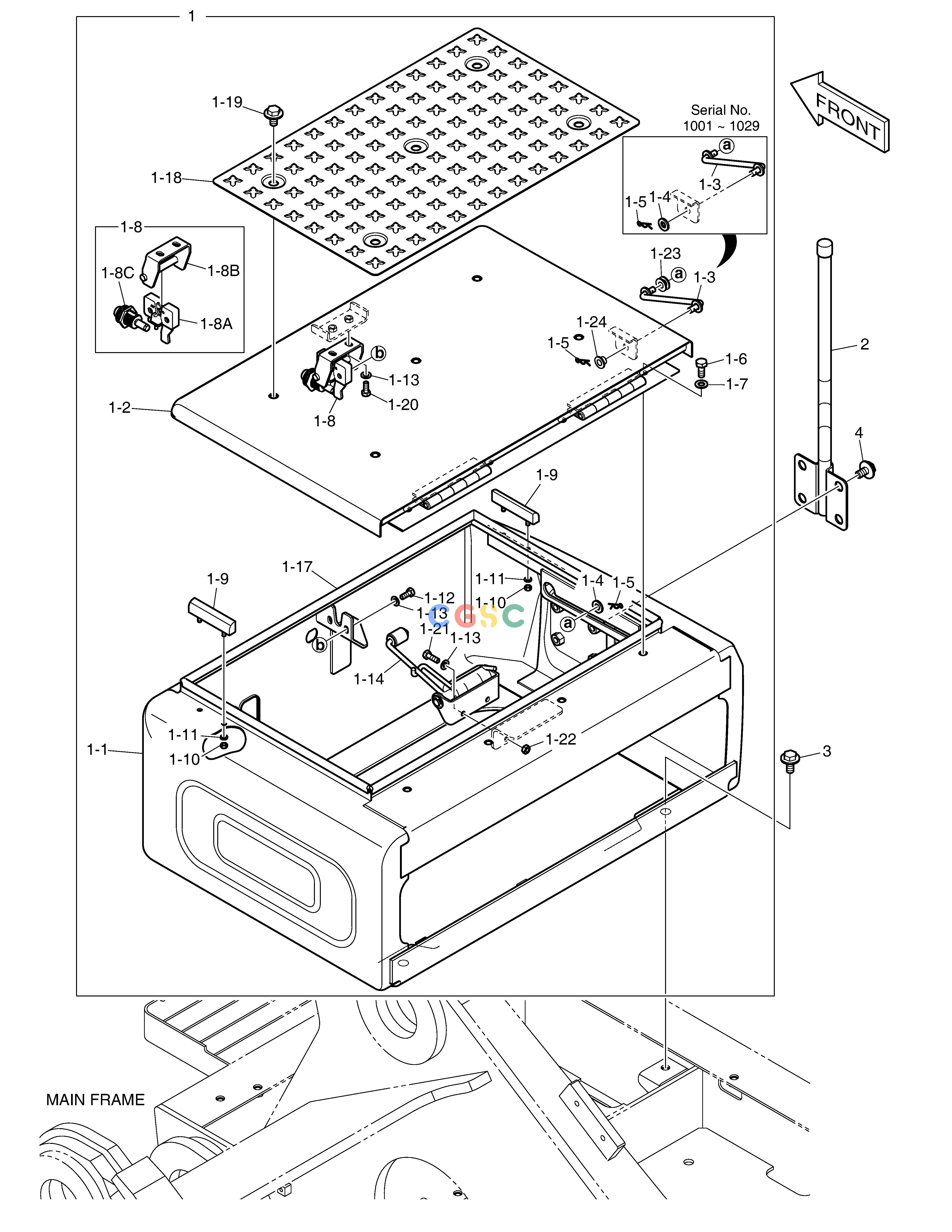

斗山零件查询BATTERY COVER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
915 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110503-00170
|
[-] |
|
|
| 1. |
110503-00164H
|
[1] |
|
110503-00164K
|
| 1. |
110503-00164K
|
[1] |
|
|
| 1-1. |
110503-00167G
|
[1] |
|
|
| 1-10. |
S4012333
|
[4] |
NUT
|
|
| 1-11. |
S5102303
|
[4] |
. WASHER
|
|
| 1-12. |
S0508853
|
[2] |
. BOLT
|
|
| 1-13. |
S5010513
|
[6] |
WASHER
|
|
| 1-14. |
111603-00009A
|
[1] |
|
|
| 1-17. |
220214-00092A
|
[1] |
|
|
| 1-18. |
110508-16933A
|
[1] |
|
110508-16933B
|
| 1-18. |
110508-16933B
|
[1] |
|
|
| 1-19. |
DS0025015
|
[5] |
BOLT
|
|
| 1-2. |
110503-00166E
|
[1] |
|
|
| 1-2. |
110503-00166G
|
[1] |
|
|
| 1-20. |
S0508653
|
[2] |
BOLT
|
|
| 1-21. |
S0509053
|
[2] |
. BOLT
|
|
| 1-22. |
S4012533
|
[2] |
NUT
|
|
| 1-23. |
K1008335
|
[1] |
. BUSHING
|
|
| 1-24. |
K1000602
|
[1] |
. BUSHING
|
|
| 1-3. |
101582-00070
|
[1] |
|
|
| 1-3. |
101582-00472
|
[1] |
|
|
| 1-4. |
2114-1058D63
|
[2] |
WASHER
|
|
| 1-4. |
2114-1058D63
|
[1] |
WASHER
|
|
| 1-5. |
2705-9002
|
[2] |
PIN
|
|
| 1-6. |
S0512066
|
[4] |
. BOLT
|
|
| 1-7. |
S5010613
|
[4] |
WASHER
|
|
| 1-8. |
110933-00033B
|
[1] |
|
|
| 1-8A. |
110933-00054
|
[1] |
|
|
| 1-8B. |
101583-00087
|
[1] |
|
|
| 1-8C. |
110701-00012
|
[1] |
|
|
| 1-9. |
110956-00362
|
[2] |
|
|
| 2. |
101582-00439A
|
[1] |
|
|
| 3. |
DS0025025
|
[4] |
BOLT
|
|
| 4. |
DS0025015
|
[4] |
BOLT
|
|
