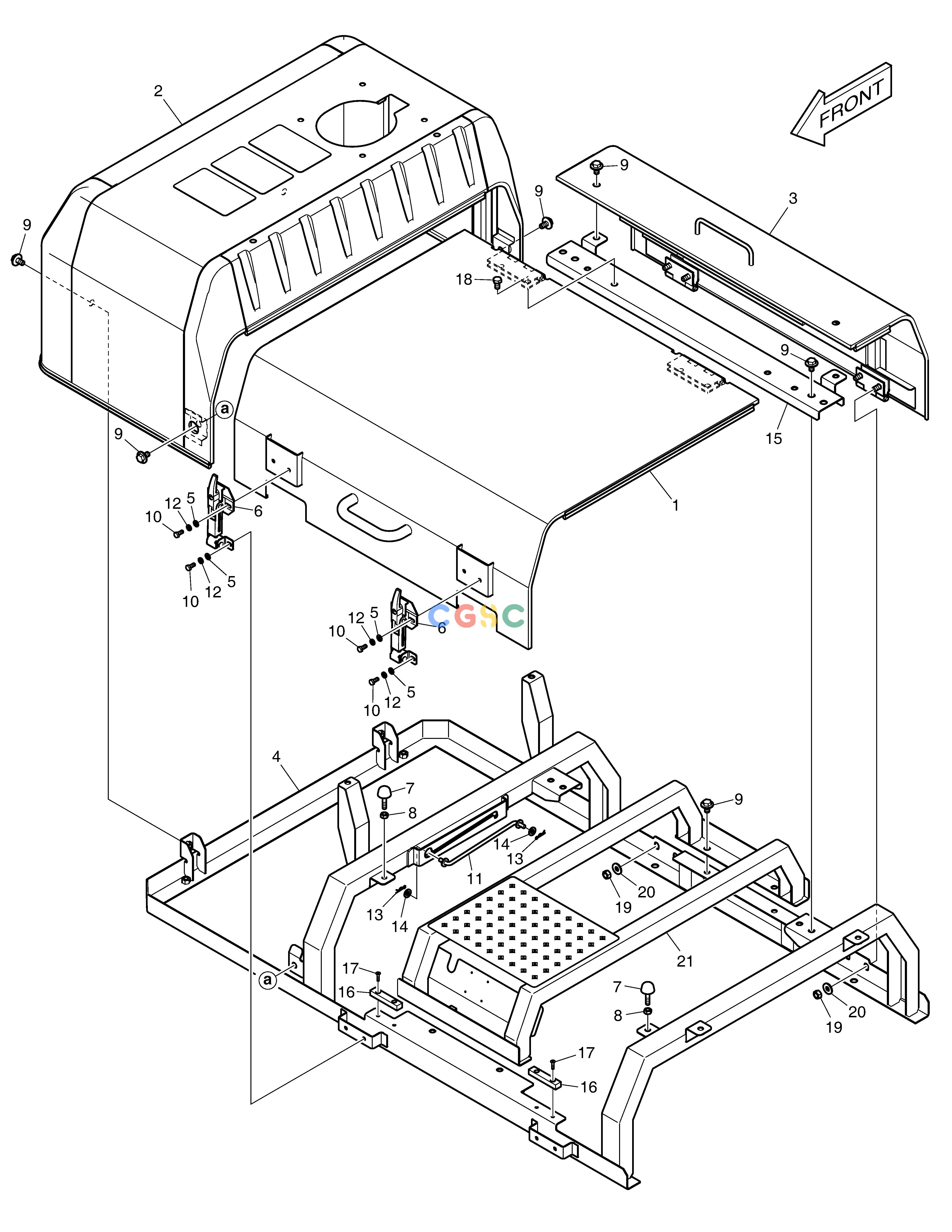

斗山零件查询BONNET DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110501-00186G
|
[1] |
|
|
| 1. |
110501-00265A
|
[1] |
|
|
| 10. |
S0508866
|
[8] |
BOLT
|
|
| 11. |
K1042250
|
[1] |
|
|
| 12. |
S5102503
|
[8] |
. WASHER
|
|
| 13. |
2705-9002
|
[2] |
PIN
|
|
| 14. |
2114-1058D63
|
[2] |
WASHER
|
|
| 15. |
110958-00506C
|
[1] |
|
|
| 16. |
2512-1054
|
[2] |
RUBBER
|
|
| 17. |
S3452983
|
[4] |
SCREW
|
|
| 18. |
S0514966
|
[4] |
BOLT
|
|
| 19. |
S4012733
|
[4] |
NUT
|
|
| 2. |
110501-00197A
|
[1] |
|
|
| 20. |
2114-1154
|
[4] |
WASHER
|
|
| 21. |
110958-02459
|
[1] |
|
|
| 3. |
110501-00266
|
[1] |
|
|
| 4. |
110958-02468C
|
[1] |
|
|
| 5. |
DS0401235
|
[8] |
|
|
| 6. |
125-00075A
|
[2] |
CATCH
|
|
| 7. |
K1001260A
|
[2] |
STOPPER
|
|
| 8. |
S4012633
|
[2] |
NUT
|
|
| 9. |
DS0025015
|
[13] |
BOLT
|
|
