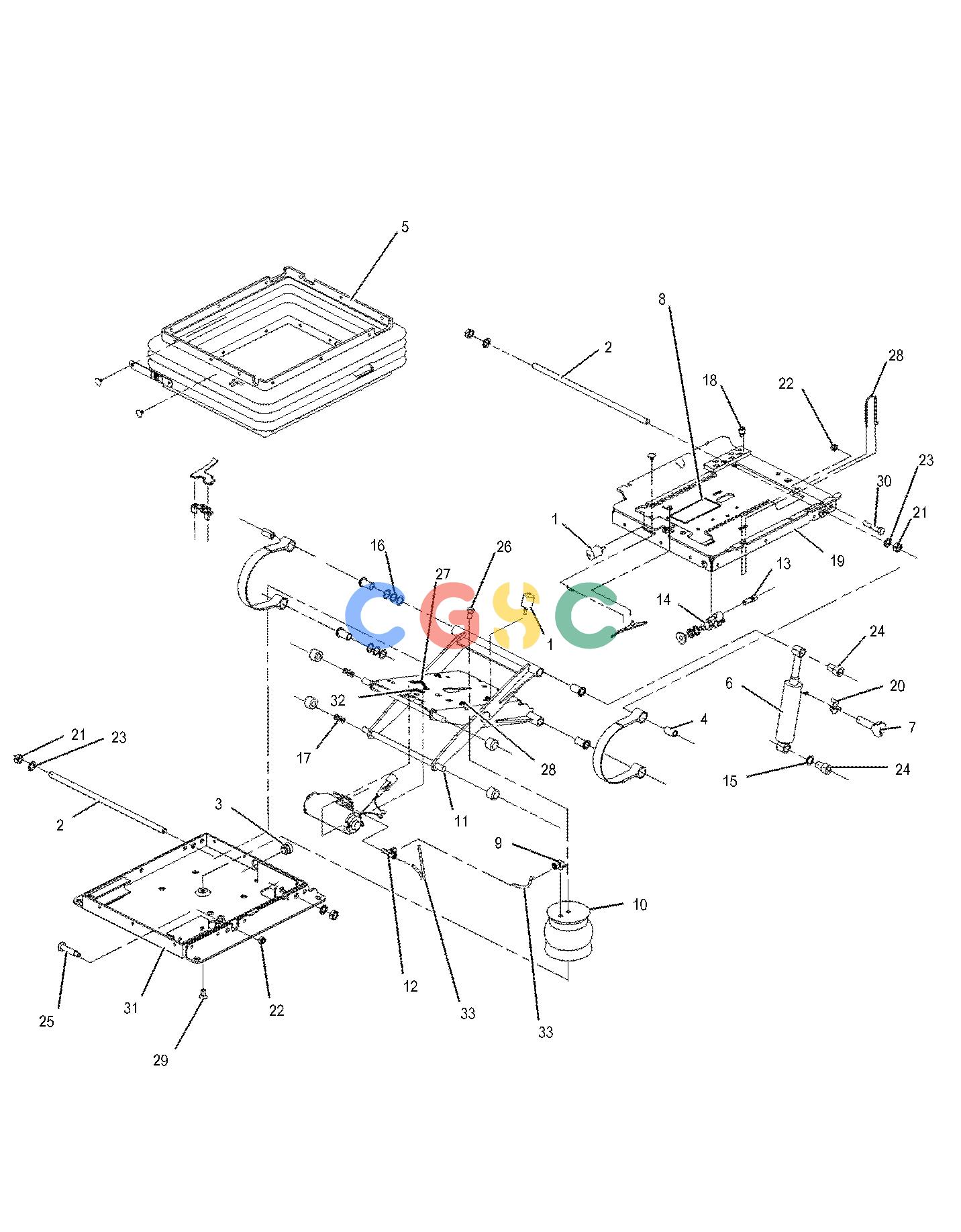

卡特零件查询（725） 169-7034: SUSPENSION GP-SEAT
广数供应链运营团队, 14 02月, 2025，浏览：
762 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-6317 | [4] | BUMPER | |
| 2. | 123-8157 | [2] | SHAFT | |
| 3. | 124-7128 | [1] | BUSHING-RELIEF | |
| 4. | 128-0686 | [2] | SPACER(9.78X15.88X27.8-MM THK) | |
| 5. | 128-5082 | [1] | BOOT | |
| 6. | 128-5084 | [1] | ABSORBER AS-SHOCK | |
| 7. | 128-5085 | [1] | KNOB-DAMPER | |
| 8. | 145-0326 | [1] | FILM-INSTRUCTION(SEAT ADJUSTMENT) | |
| 9. | 147-4549 | [1] | FITTING-ELBOW | |
| 10. | 147-6522 | [1] | SPRING | |
| 11. | 148-3749 | [1] | SCISSORS AS | |
| 12. | 149-2399 | [1] | FITTING | |
| 13. | 149-2400 | [1] | FITTING | |
| 14. | 149-2403 | [1] | VALVE AS | |
| 15. | 160-7765 | [1] | WASHER(16.26X22.23X1.97-MM THK) | |
| 16. | 160-7766B | [6] | WASHER(16.26X22.23X0.51-MM THK) | |
| 17. | 160-7767B | [6] | WASHER(3.68X12.57X0.51-MM THK) | |
| 18. | 169-7380 | [1] | BOLT-SOCKET HEAD(3/8-16X0.375-IN) | |
| 19. | 173-7486 | [1] | HOUSING AS | |
| 20. | 207-6027 | [1] | CLIP | |
| 21. | 1B-4430 | [4] | NUT-JAM(1/2-20-THD) | |
| 22. | 2K-4973 | [3] | LOCKNUT(3/8-16-THD) | |
| 23. | 3J-4818 | [4] | LOCKWASHER | |
| 24. | 4V-7884 | [2] | BEARING | |
| 25. | 4V-8556 | [1] | BOLT(3/8-16X2.20-IN) | |
| 26. | 5P-8167 | [1] | BOLT(3/8-16X0.625-IN) | |
| 27. | 6K-0806 | [1] | STRAP-CABLE | |
| 28. | 8L-8413 | [5] | STRAP-CABLE(WHITE) | |
| 29. | 8M-3267 | [1] | SCREW-HEX SOCKET(3/8-16X0.75-IN) | |
| 30. | 8T-2501 | [2] | BOLT(3/8-16X2-IN) | |
| 31. | 8Y-6922 | [1] | HOUSING AS | |
| 32. | 9M-0164 | [1] | CLAMP-HOSE | |
| 33. | 147-6541E | | TUBE(38-CM) | |
| | | | |
| | 203-7700F | [1] | BOLT(3/8-16-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 149-2398 | [1] | KIT-AIR COMPRESSOR | |
| | | | (INCLUDES COMPRESSOR AS & SLEEVE) |
| | 8Y-6928 | [1] | KIT-FASTENER | |
| | | | (INCLUDES RACHET CLIPS) |
| | 132-3439 | [1] | KIT-INDICATOR(RIDE) | |
| | | | (INCLUDES CAM, INDICATOR, MAGNET CARRIER, NUT, SPRING & LABEL) |
| | 123-9128 | [1] | KIT-ROLLER | |
| | | | (INCLUDES BEARINGS, ROLLERS & STRAP) |
| | 128-0613 | [1] | KIT-TETHER | |
| | | | (INCLUDES TETHERS) |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
