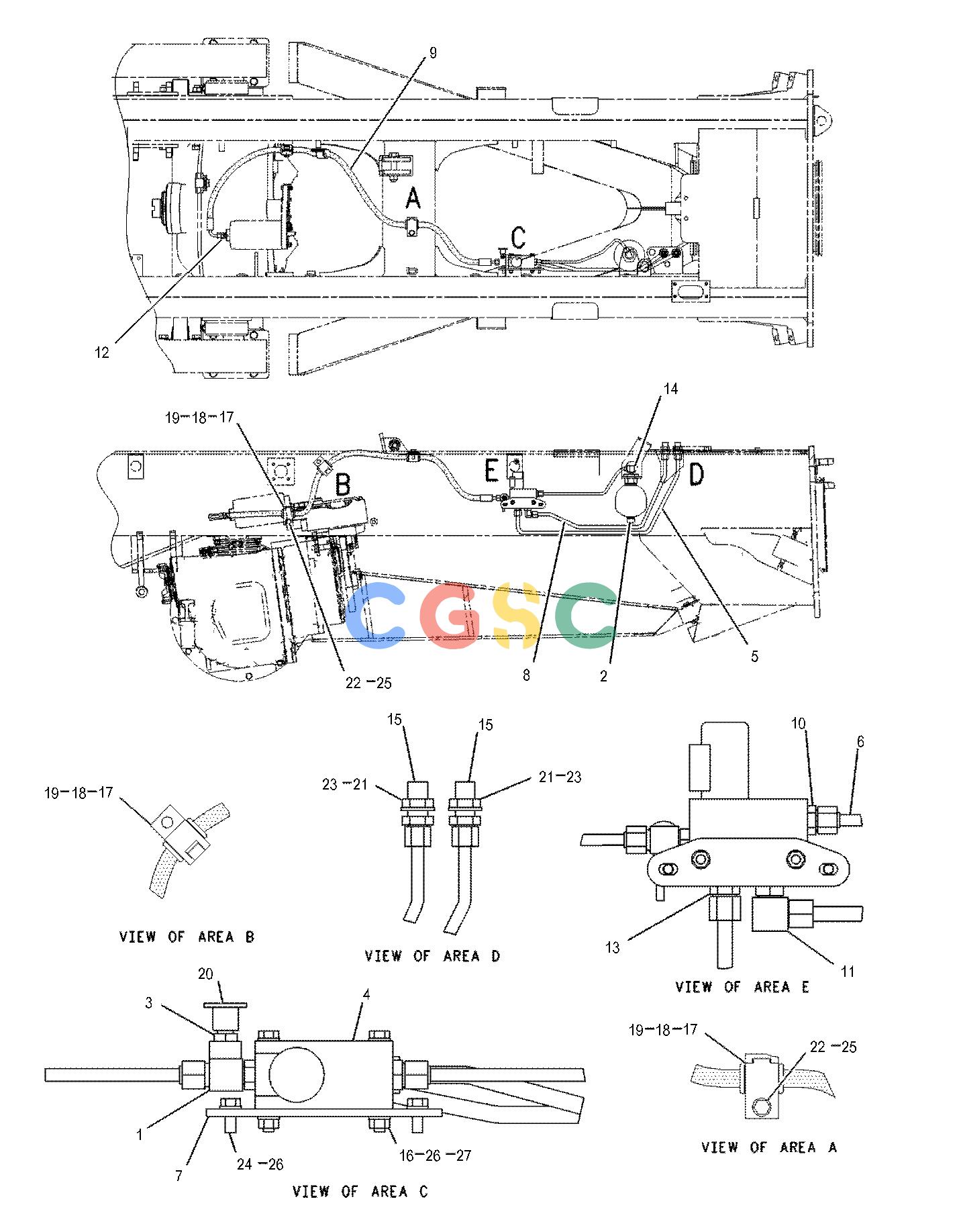

卡特零件查询（725） 149-0111: CONTROL GP-PARKING BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
329 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 150-4027 | [1] | TEE AS | |
| | 3E-2310 | [1] | TEE | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 2. | 163-5632Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 3. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 4. | 174-0020Y | [1] | VALVE GP-PARKING BRAKE | |
| 5. | 177-0808 | [1] | TUBE AS | |
| 6. | 177-0810 | [1] | TUBE AS | |
| 7. | 177-0812 | [1] | PLATE-VALVE MOUNTING | |
| 8. | 190-6285 | [1] | TUBE AS | |
| 9. | 221-5279I | [1] | HOSE AS | |
| 10. | 222-5606 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | | [1] | CONNECTOR |
| 11. | 222-5608 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 222-5609 | [1] | ELBOW | |
| 12. | 148-8326 | [1] | CONNECTOR AS | |
| | 6V-9872 | [1] | CONNECTOR | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 13. | 148-8340 | [1] | CONNECTOR AS | |
| | 6V-8639 | [1] | CONNECTOR | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 14. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 6V-9200 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 15. | 148-8457 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8995 | [2] | UNION(STRAIGHT) | |
| | 6V-8398 | [4] | SEAL-O-RING | |
| 16. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 17. | 5P-7462 | [3] | CLIP(SLOT) | |
| 18. | 5P-7463 | [3] | CLIP(TAB) | |
| 19. | 6V-0683 | [3] | GROMMET | |
| 20. | 6V-0852 | [1] | CAP-DUST | |
| 21. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 22. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 24. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 25. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 26. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 27. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
