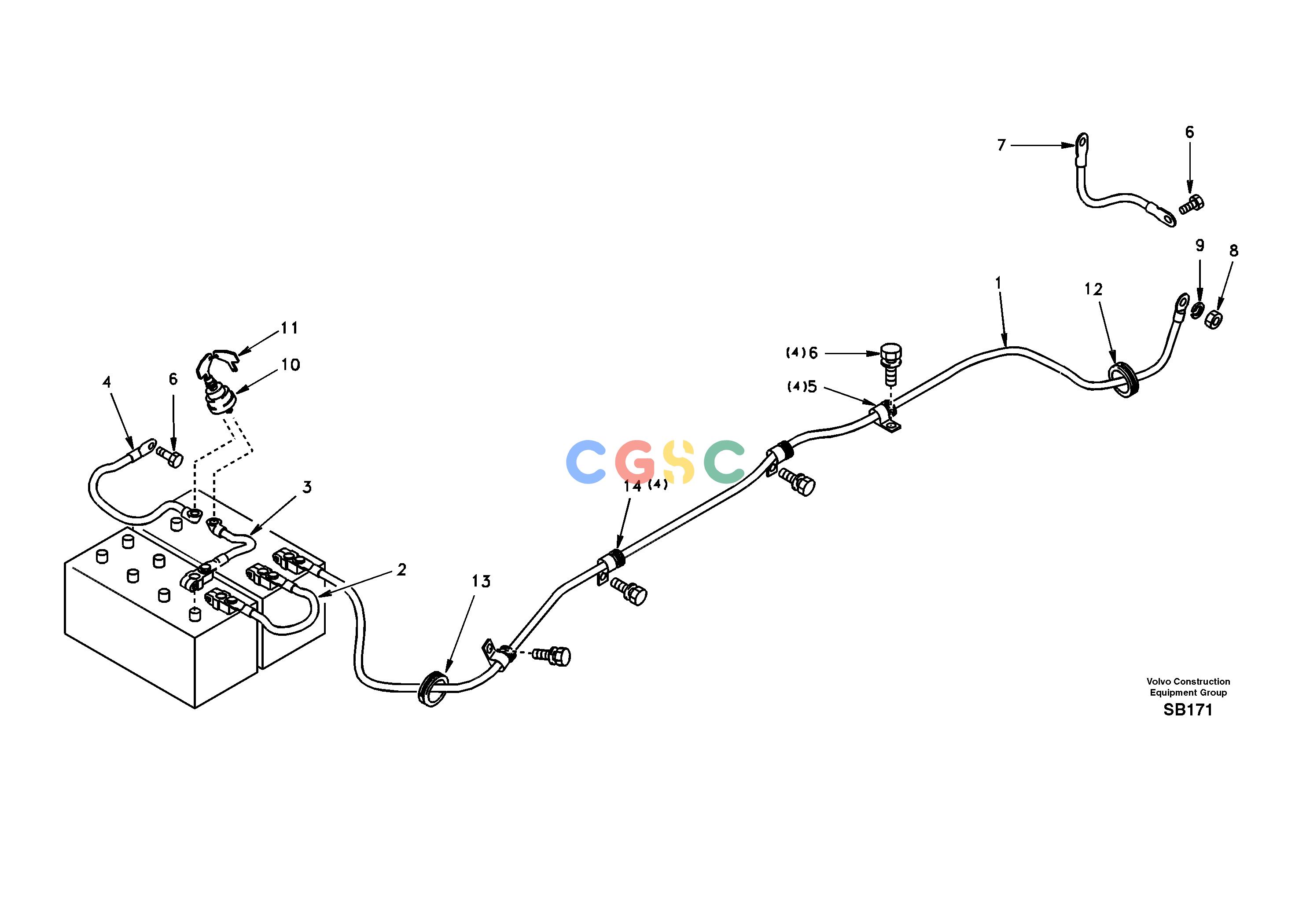

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1121-00710
|
[1] |
Battery cable
|
|
| 2. |
VOE14529070
|
[1] |
Battery cable
|
|
| 3. |
VOE14529072
|
[1] |
Battery cable
|
|
| 4. |
VOE14529071
|
[1] |
Battery cable
|
|
| 5. |
SA9315-03001
|
[4] |
Clip
|
|
| 6. |
SA9041-11003
|
[6] |
Bolt
|
|
| 7. |
SA1021-00820
|
[1] |
Ground cable
|
|
| 8. |
SA9181-11800
|
[1] |
Hexagon nut
|
|
| 9. |
SA9213-12000
|
[1] |
Spring washer
|
|
| 10. |
VOE14714851
|
[1] |
Switch
|
|
| 11. |
VOE14612980
|
[1] |
Switch
|
SWITCH 14588962, 14714851
|
| 11. |
SA8240-00500
|
[2] |
Key
|
SWITCH 1121-00381,
14529076
|
| 12. |
VOE14529331
|
[1] |
Grommet
|
|
| 13. |
VOE14529326
|
[1] |
Grommet
|
|
| 14. |
VOE14529117
|
[4] |
Grommet
|
|
