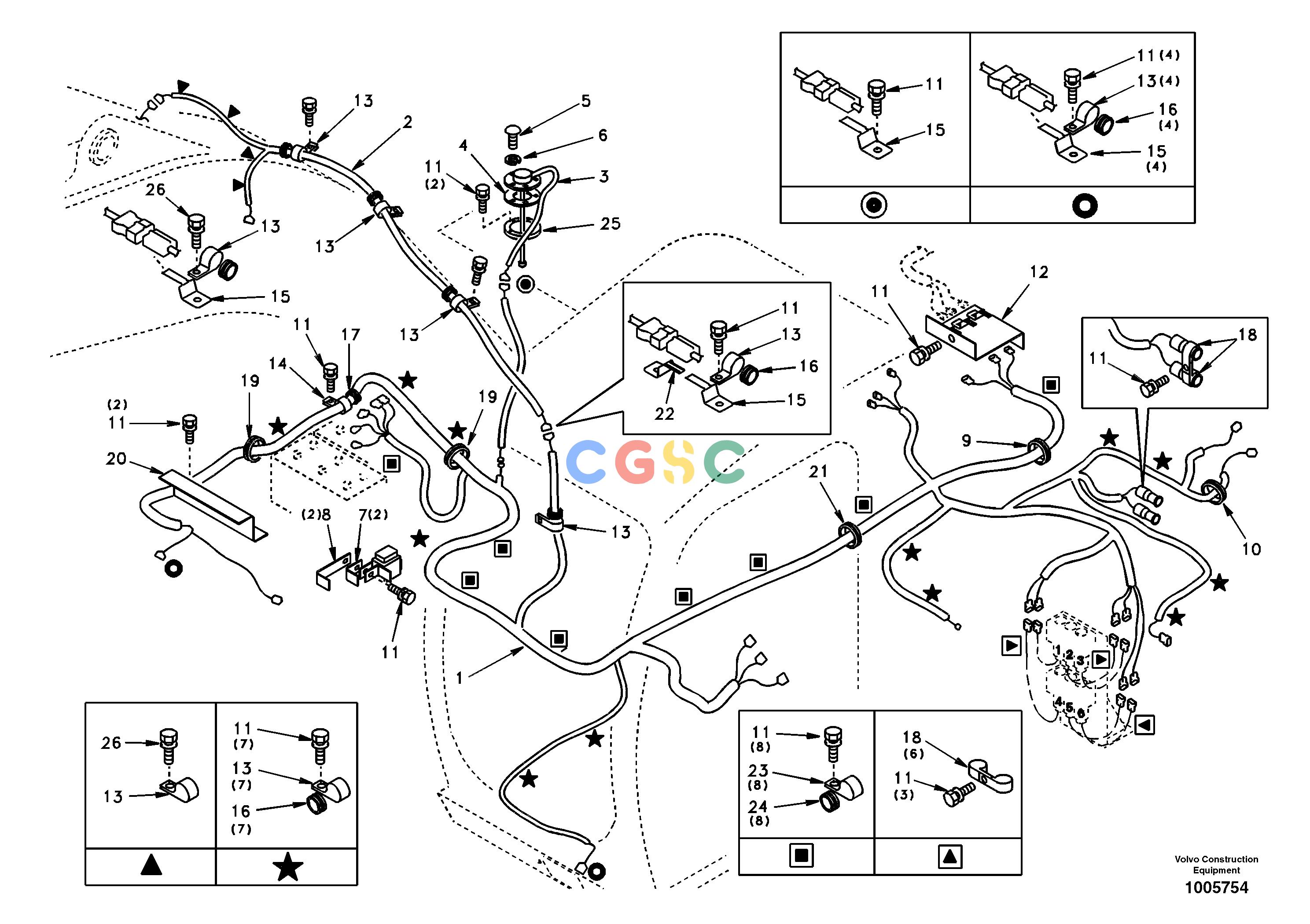

沃尔沃零件查询EC240 Cable and wire harness, mainNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1122-05050
|
[1] |
Cable harness
|
SER NO 3001-3410
|
| |
VOE14507404
|
[1] |
Wire harness
|
SER NO 3411-3869
|
| |
VOE14513039
|
[1] |
Wire harness
|
SER NO 3870-
|
| 2. |
SA1122-00070
|
[1] |
Cable harness
|
SER NO 3001-3869
|
| |
VOE14513041
|
[1] |
Cable harness
|
SER NO 3870-
|
| 3. |
SA1122-00160
|
[1] |
Sensor
|
SER NO 3001-3643
|
| |
VOE14511655
|
[1] |
Sensor
|
SER NO 3644-
|
| 4. |
SA2022-00200
|
[1] |
Gasket
|
|
| 5. |
SA9021-10503
|
[5] |
Cross recessed screw
|
|
| 6. |
SA9213-05000
|
[5] |
Spring washer
|
|
| 7. |
VOE14529099
|
[1] |
Bracket
|
|
| 8. |
VOE14529100
|
[1] |
Bracket
|
|
| 9. |
SA9751-15016
|
[1] |
Grommet
|
|
| 10. |
SA9751-13612
|
[1] |
Grommet
|
|
| 11. |
SA9041-11003
|
[33] |
Bolt
|
SER NO 3001-3209
|
| |
SA9041-11003
|
[37] |
Bolt
|
SER NO 3210-3353
|
| |
SA9041-11003
|
[35] |
Bolt
|
SER NO 3354-
|
| 12. |
SA1122-04040
|
[1] |
Bracket
|
|
| 13. |
SA9315-01602
|
[14] |
Insulating clip
|
SER NO 3001-3209
|
| |
SA9315-01602
|
[21] |
Insulating clip
|
SER NO 3209-3353
|
| |
SA9315-01602
|
[25] |
Insulating clip
|
SER NO 3354-
|
| 14. |
SA9315-02201
|
[8] |
Clip
|
|
| 15. |
SA9392-10130
|
[5] |
Clip
|
|
| 16. |
VOE14529133
|
[14] |
Grommet
|
SER NO 3001-3209
|
| |
VOE14529133
|
[21] |
Grommet
|
SER NO 3209-3353
|
| |
VOE14529133
|
[15] |
Grommet
|
SER NO 3354-
|
| 17. |
VOE14529119
|
[8] |
Grommet
|
|
| 18. |
VOE14529345
|
[6] |
Clip
|
SER NO 3001-3209
|
| |
VOE14529345
|
[8] |
Clip
|
SER NO 3210-
|
| 19. |
SA9751-13606
|
[2] |
Grommet
|
|
| 20. |
SA1122-02161
|
[1] |
Cover
|
|
| 21. |
VOE14529112
|
[1] |
Grommet
|
|
| 22. |
SA9392-20130
|
[1] |
Clip
|
|
| 23. |
SA9315-03001
|
[4] |
Clip
|
|
| 24. |
VOE14529117
|
[9] |
Grommet
|
|
| 25. |
SA1122-04900
|
[1] |
Cover
|
|
| 26. |
SA9041-10803
|
[6] |
Bolt
|
SER NO 3354-
|
