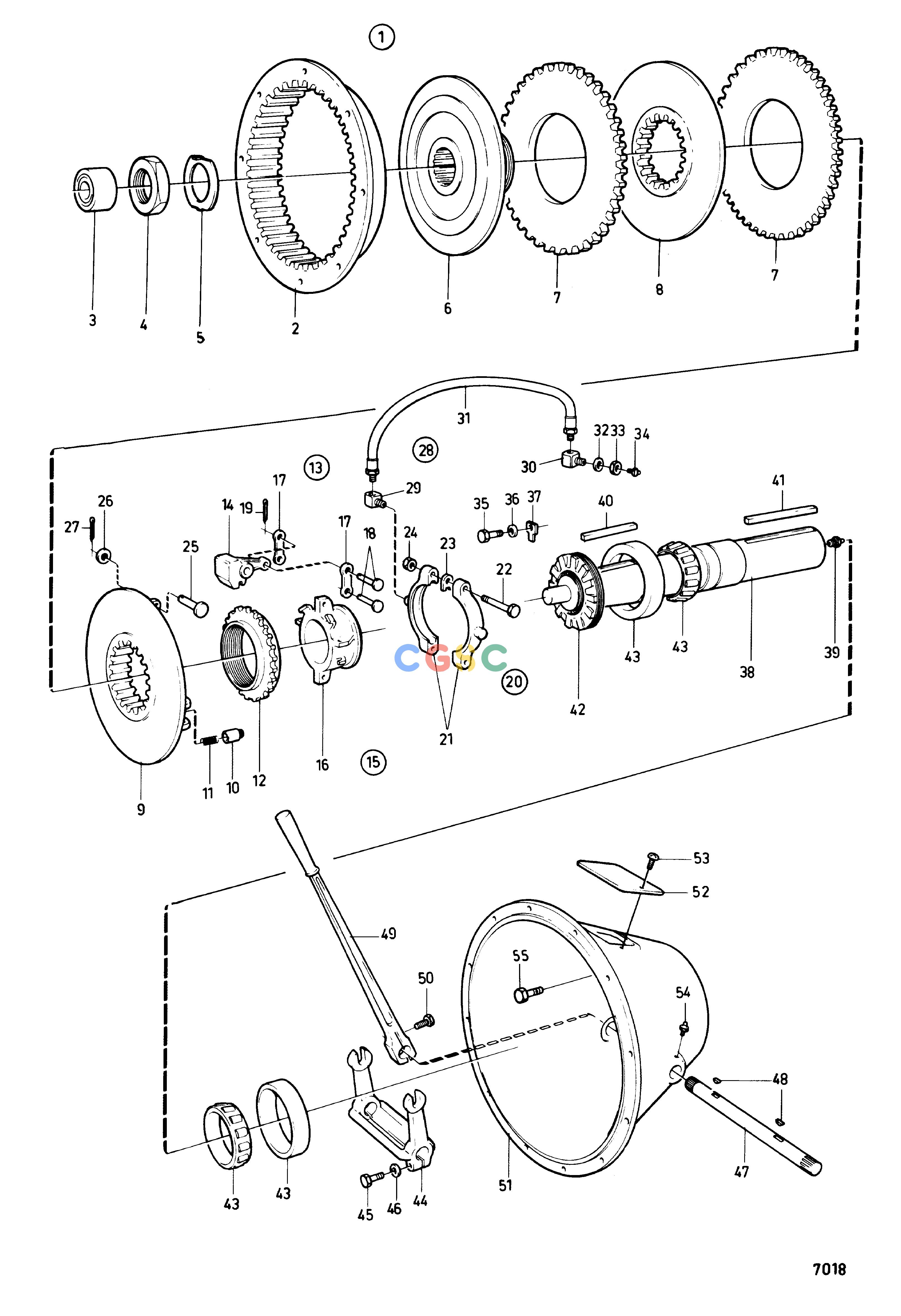

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MClutch, Elastic CouplingClutch Twin Disc 11, 5'', ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
322 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845705
|
[1] |
Clutch
|
SP211
|
| 2. |
848107
|
[1] |
Drive ring
|
|
| 3. |
806596
|
[1] |
Ball bearing
|
|
| 4. |
848118
|
[1] |
Nut
|
|
| 5. |
848119
|
[1] |
Washer
|
|
| 6. |
848108
|
[1] |
Hub
|
|
| 7. |
848109
|
[2] |
Drive plate
|
|
| 8. |
848111
|
[1] |
Plate
|
|
| 9. |
848110
|
[1] |
Disc
|
|
| 10. |
848115
|
[1] |
Pin
|
|
| 11. |
848116
|
[1] |
Spring
|
|
| 12. |
806126
|
[1] |
Adjusting ring
|
|
| 13. |
|
|
|
|
| 14. |
806127
|
[3] |
Intermediate lever
|
|
| 15. |
|
|
|
|
| 16. |
848112
|
[1] |
Sleeve
|
|
| 17. |
806122
|
[6] |
Link
|
|
| 18. |
806123
|
[6] |
Shaft
|
|
| 19. |
907849
|
[6] |
Split pin
|
|
| 20. |
848126
|
[1] |
Stop ring
|
|
| 21. |
|
|
|
|
| 22. |
804869
|
[2] |
Screw
|
|
| 23. |
848114
|
[2] |
Adjusting washer
|
|
| 24. |
804839
|
[2] |
Nut
|
|
| 25. |
827350
|
[3] |
Clevis pin
|
|
| 26. |
806129
|
[6] |
Lock washer
|
|
| 27. |
907861
|
[3] |
Split pin
|
|
| 28. |
|
|
|
|
| 29. |
848128
|
[1] |
Nipple
|
|
| 30. |
848129
|
[1] |
Nipple
|
|
| 31. |
848127
|
[1] |
Hose
|
|
| 32. |
955953
|
[1] |
Toothed washer
|
|
| 33. |
805560
|
[1] |
Nut
|
|
| 34. |
827627
|
[2] |
Lubricator
|
|
| 35. |
848120
|
[1] |
Screw
|
|
| 36. |
808733
|
[1] |
Washer
|
|
| 37. |
827642
|
[1] |
Lock plate
|
|
| 38. |
848106
|
[1] |
Shaft
|
|
| 39. |
805397
|
[1] |
Lubricating nipple
|
|
| 40. |
804819
|
[1] |
Key
|
|
| 41. |
806593
|
[1] |
Key
|
|
| 42. |
848124
|
[1] |
Retainer
|
|
| 43. |
848117
|
[2] |
Bearing
|
|
| 44. |
848121
|
[1] |
Fork
|
|
| 45. |
940162
|
[2] |
Hexagon screw
|
|
| 46. |
955950
|
[2] |
Toothed washer
|
|
| 47. |
806119
|
[1] |
Shaft
|
|
| 48. |
|
|
|
|
| 49. |
805732
|
[1] |
Hand lever
|
|
| 50. |
955563
|
[1] |
Hexagon screw
|
|
| 51. |
|
|
|
|
| 52. |
806007
|
[1] |
Hatch
|
|
| 53. |
805558
|
[2] |
Screw
|
|
| 54. |
914167
|
[2] |
Lubricating nipple
|
|
| 55. |
961921
|
[1] |
Set screw
|
|
