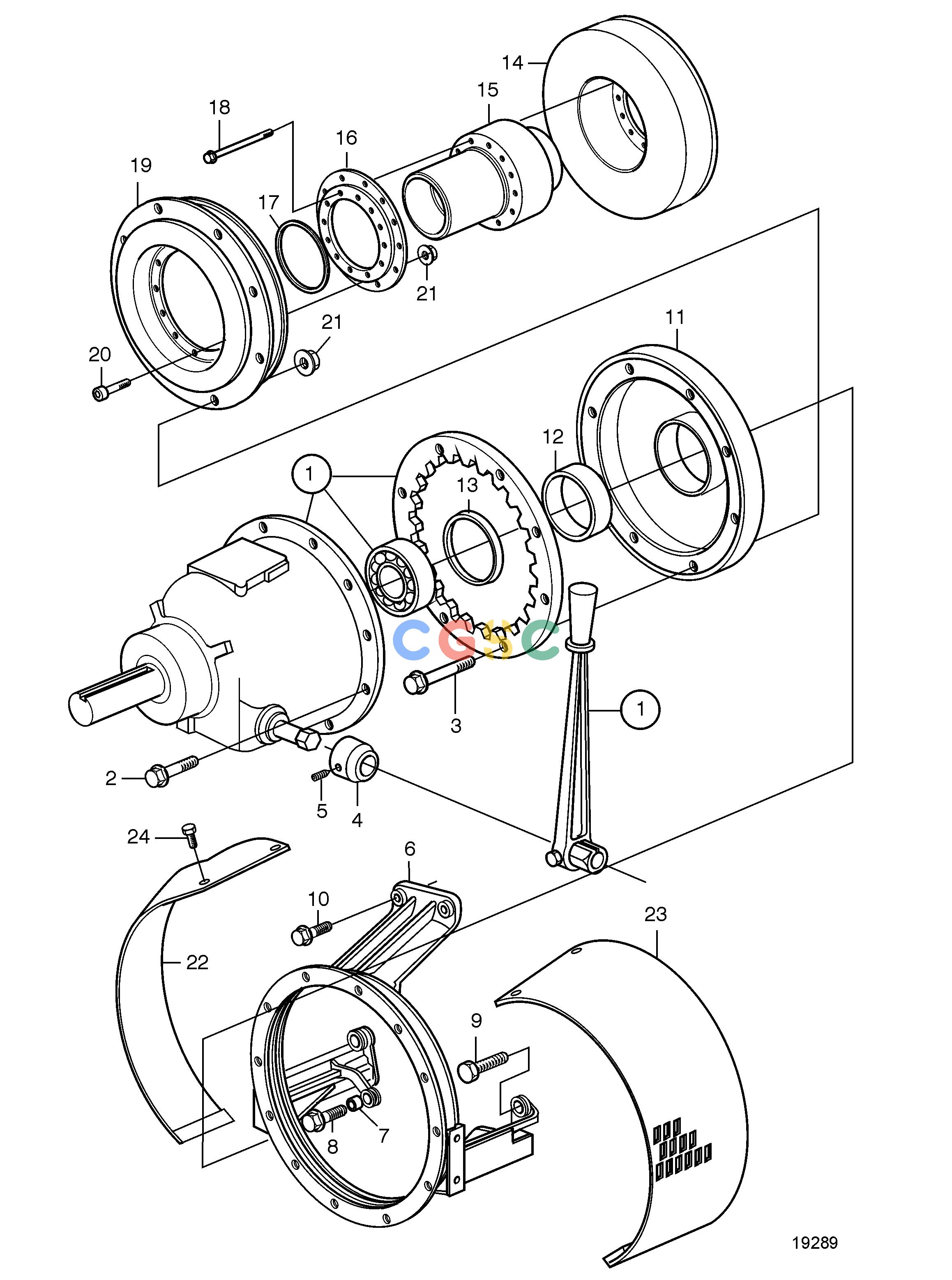

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MClutch, Elastic CouplingClutch Twin Disc 11,5''EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845705
|
[1] |
Clutch, straight stub shaft
|
SP 211 HP3
|
| 1. |
|
|
|
|
| 2. |
946329
|
[12] |
Flange screw
|
|
| 3. |
968237
|
[8] |
Flange screw
|
|
| 4. |
803612
|
[2] |
Stop ring
|
|
| 5. |
946847
|
[4] |
Set screw
|
|
| 6. |
3826646
|
[1] |
Bell housing
|
|
| 7. |
977799
|
[2] |
Spacer sleeve
|
|
| 8. |
965185
|
[2] |
Flange screw
|
|
| 9. |
968902
|
[4] |
Flange screw
|
|
| 10. |
965220
|
[2] |
Flange screw
|
|
| 11. |
3825588
|
[1] |
Companion flange
|
|
| 12. |
863602
|
[1] |
Bearing bushing
|
|
| 13. |
965872
|
[2] |
Sealing ring
|
|
| 14. |
8193930
|
[2] |
Vibration damper
|
|
| 15. |
3825589
|
[1] |
Shaft
|
|
| 16. |
3825587
|
[1] |
Spacer
|
|
| 17. |
965872
|
[1] |
Sealing ring
|
|
| 18. |
963261
|
[10] |
Hexagon screw
|
|
| 19. |
3825593
|
[1] |
Clutch
|
|
| 20. |
959236
|
[16] |
Hex. socket screw
|
|
| 21. |
971098
|
[24] |
Flange lock nut
|
|
| 22. |
3832352
|
[1] |
Protecting plate
|
SB
|
| 23. |
3832353
|
[1] |
Protecting plate
|
P
|
| 24. |
967949
|
[8] |
Flange screw
|
|
