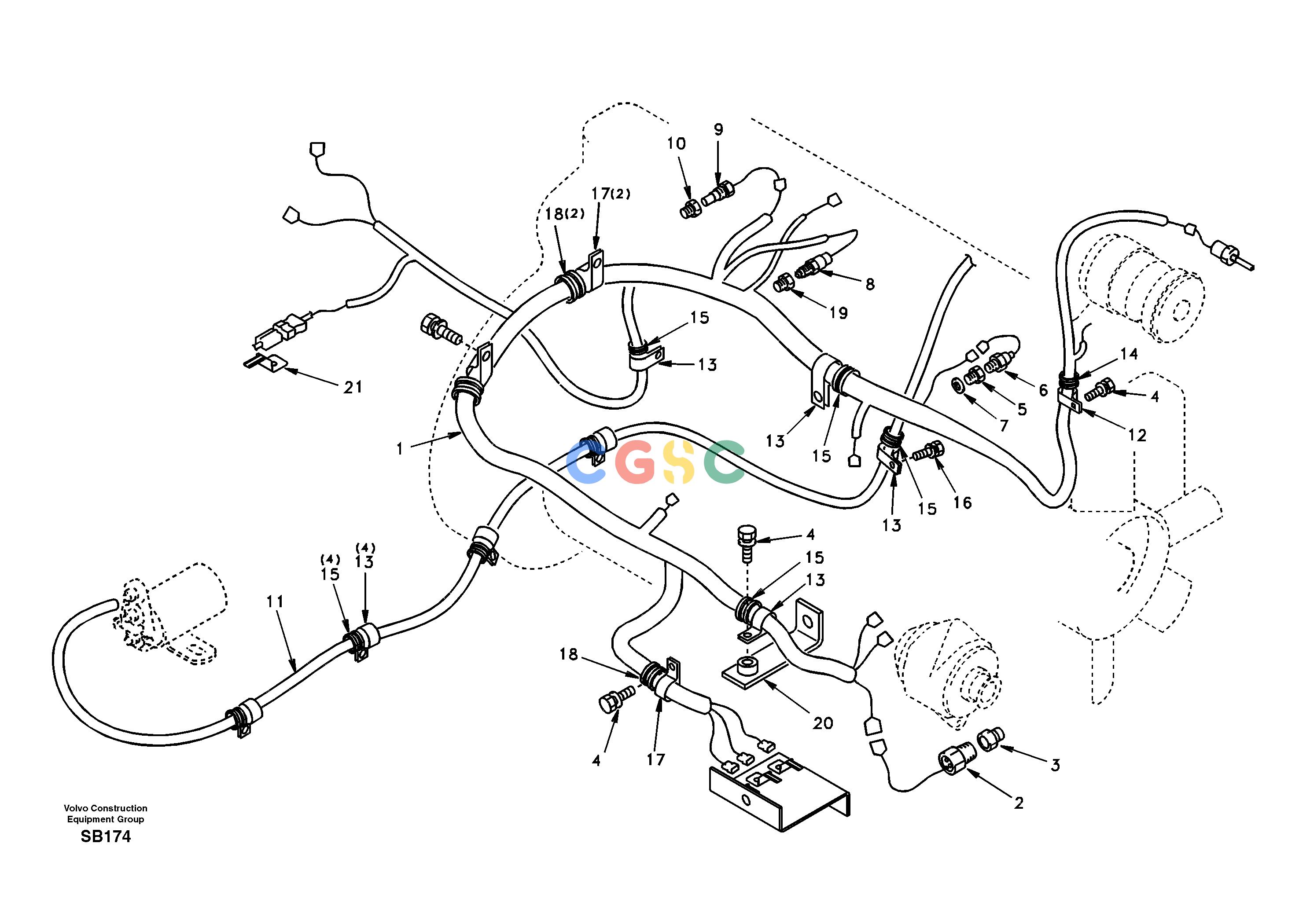

沃尔沃零件查询EC240 Cable harness, engineNoneDE00A001-DE04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1122-05061
|
[1] |
Cable harness
|
|
| 2. |
VOE14529333
|
|
Switch
|
|
| 3. |
SA9411-91900
|
|
Connector
|
|
| 4. |
SA9041-11003
|
[2] |
Bolt
|
|
| 5. |
SA9411-90460
|
[1] |
Connector
|
|
| 6. |
SA1022-05140
|
[1] |
Switch
|
|
| 7. |
SA9426-20020
|
[1] |
Gasket
|
|
| 8. |
VOE14529101
|
[1] |
Switch
|
|
| 9. |
VOE14529102
|
[1] |
Sensor
|
|
| 10. |
SA9411-90470
|
[1] |
Connector
|
|
| 11. |
SA1122-04990
|
|
Cable
|
|
| 12. |
SA9315-01602
|
[4] |
Insulating clip
|
|
| 13. |
SA9315-02201
|
[1] |
Clip
|
|
| 14. |
VOE14529133
|
[4] |
Grommet
|
|
| 15. |
SA1122-02760
|
[1] |
Grommet
|
|
| 16. |
SA9041-11204
|
[1] |
Bolt
|
|
| 17. |
SA9315-03001
|
[3] |
Clip
|
|
| 18. |
VOE14529117
|
[3] |
Grommet
|
|
| 19. |
SA9411-91930
|
[1] |
Connector
|
|
| 20. |
VOE14529343
|
[1] |
Bracket
|
|
| 21. |
SA9392-10130
|
[1] |
Clip
|
|
