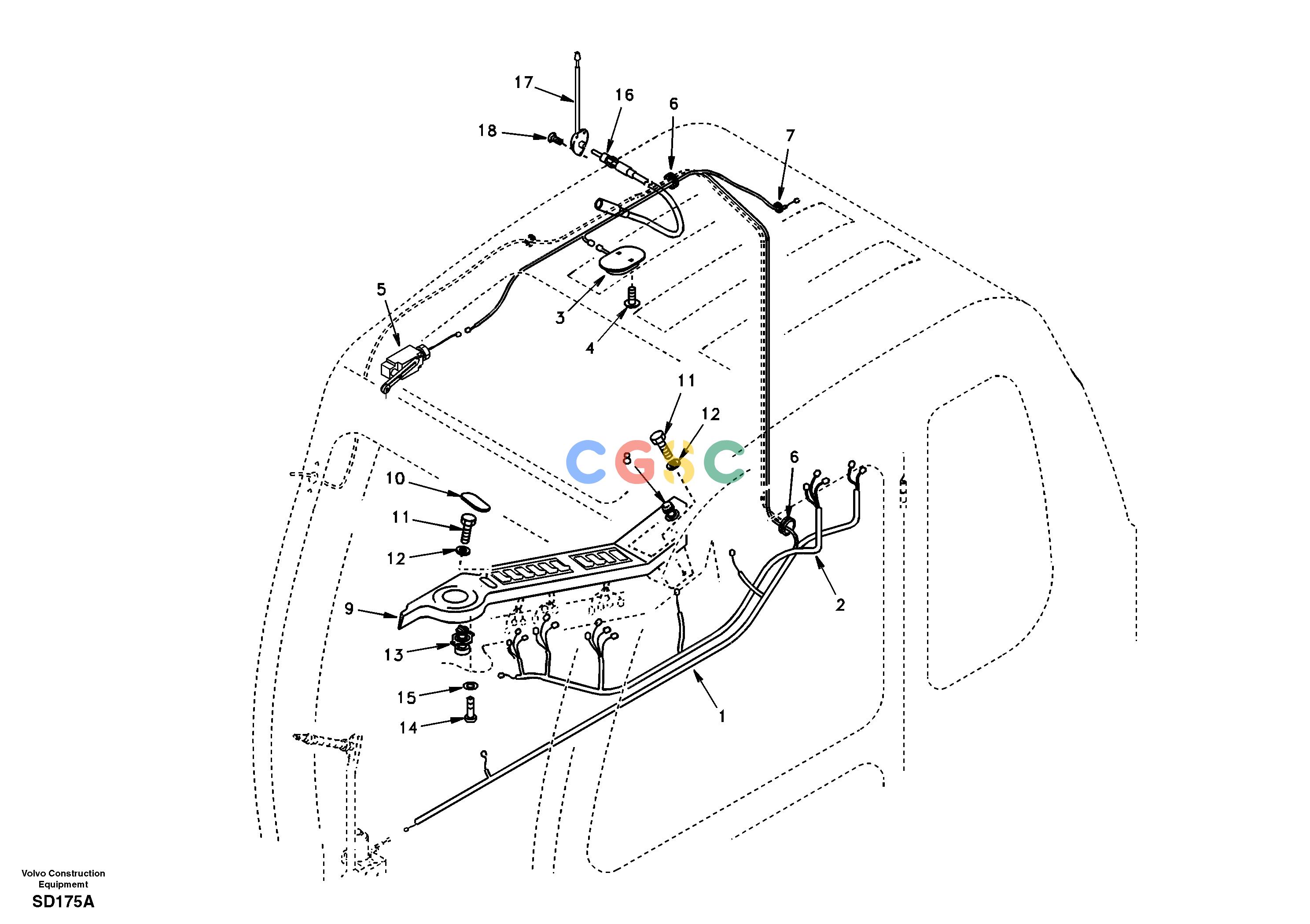

沃尔沃零件查询EC240 Cable harnesses, cabNoneDE08A001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1122-03960
|
[1] |
Cable harness
|
|
| 2. |
SA1122-03950
|
[1] |
Wire harness
|
|
| 3. |
SA1122-01600
|
[1] |
Lamp
|
|
| |
SA1122-01690
|
[1] |
Bulb
|
|
| 4. |
SA9021-10503
|
[2] |
Cross recessed screw
|
|
| 5. |
VOE14529157
|
[1] |
Switch
|
|
| 6. |
VOE14529158
|
[2] |
Grommet
|
|
| 7. |
SA9751-11603
|
[1] |
Grommet
|
|
| 8. |
SA1023-04210
|
[1] |
Cig Lighter
|
|
| 9. |
VOE14529163
|
[1] |
Panel
|
|
| 10. |
VOE14529164
|
[1] |
Cover
|
|
| 11. |
VOE14881310
|
[4] |
Cross recessed screw
|
|
| 12. |
VOE955892
|
[4] |
Plain washer
|
|
| 13. |
VOE14529310
|
[1] |
Potentiometer
|
|
| 14. |
SA9021-10502
|
[2] |
Cross recessed screw
|
|
| 15. |
VOE13940090
|
[2] |
Washer
|
|
| 16. |
SA1028-00270
|
[1] |
Cable
|
|
| 17. |
VOE14535346
|
[1] |
Antenna
|
|
| 18. |
SA9025-04003
|
[3] |
Cross recessed screw
|
|
