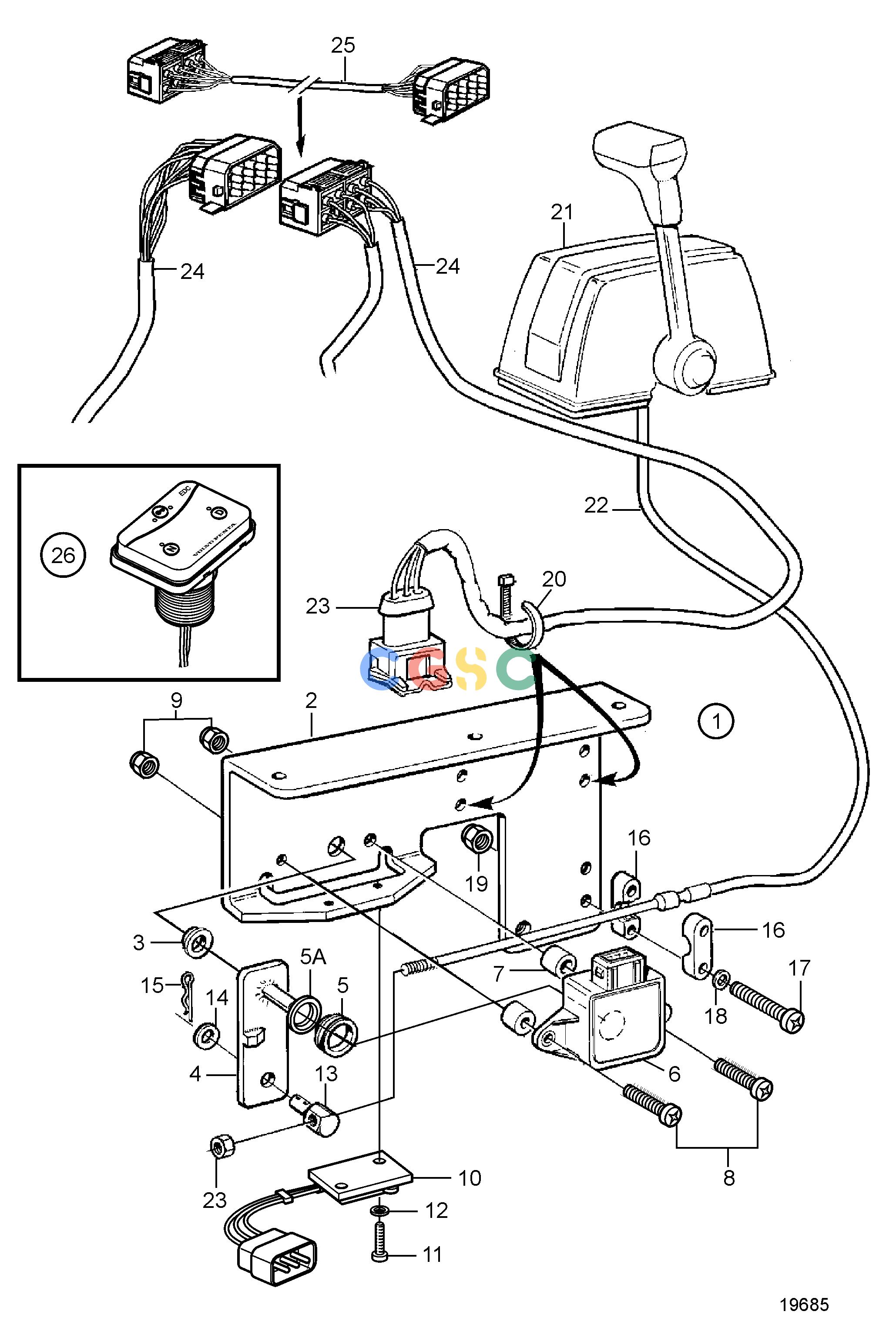

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MControlsAdapter for Mechanical Control, EDCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3842182
|
[1] |
Adapter
|
(3829694)
|
| 2. |
|
|
|
|
| 3. |
3829680
|
[1] |
Bushing
|
|
| 4. |
3825366
|
[1] |
Intermediate lever
|
|
| 5. |
943342
|
[1] |
Sealing ring
|
|
| 5A. |
3829681
|
[1] |
Washer
|
|
| 6. |
1336385
|
[1] |
Potentiometer
|
|
| 7. |
3825525
|
[2] |
Spacer sleeve
|
|
| 8. |
969518
|
[2] |
Six point socket scr
|
L=25mm
|
| 9. |
963103
|
[2] |
Lock nut
|
|
| 10. |
3842171
|
[1] |
Microswitch
|
|
| 11. |
956049
|
[2] |
Cross recessed screw
|
|
| 12. |
955890
|
[2] |
Washer
|
|
| 13. |
814082
|
[1] |
Cube
|
|
| 14. |
955892
|
[1] |
Washer
|
|
| 15. |
664822
|
[1] |
Split pin
|
|
| 16. |
850361
|
[2] |
Cable attachment
|
|
| 17. |
956081
|
[2] |
Cross recessed screw
|
|
| 18. |
940090
|
[2] |
Washer
|
|
| 19. |
949874
|
[2] |
Flange lock nut
|
(946577)
|
| 20. |
948211
|
[2] |
Cable tie
|
|
| 21. |
|
|
|
|
| 22. |
7740680_111
|
|
Control cable
|
|
| 23. |
|
|
|
|
| 24. |
874148
|
[1] |
Cable kit
|
|
| 25. |
873908
|
[1] |
Extension cable
|
L=5000mm
|
| 25. |
873909
|
[1] |
Extension cable
|
L=9000mm
|
| 26. |
7740680_167
|
|
Control panel
|
|
