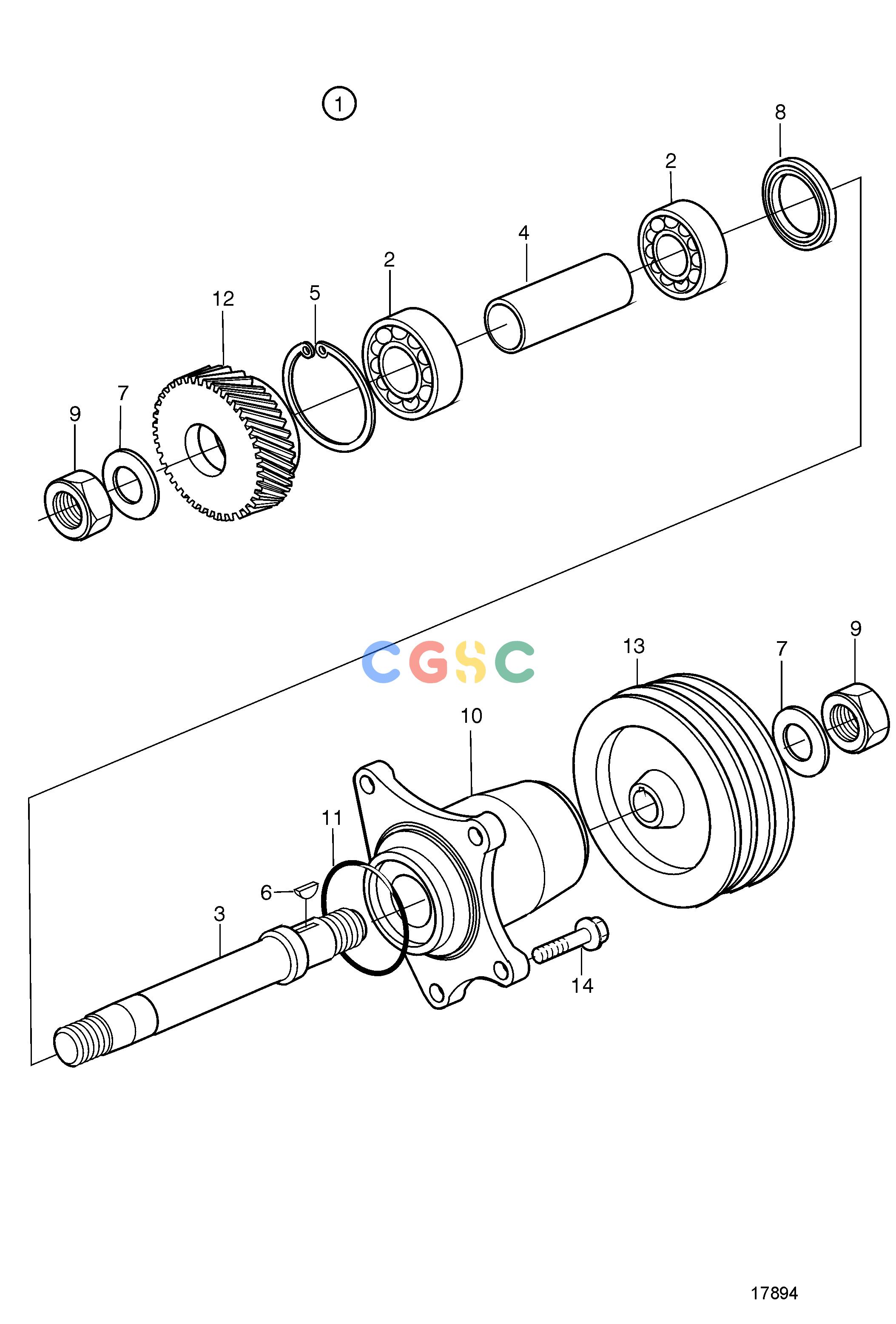

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MClutch, Elastic CouplingPower Take offEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3828176
|
[1] |
Power take-off
|
|
| 2. |
11013
|
[2] |
Ball bearing
|
|
| 3. |
3830551
|
[1] |
Shaft
|
|
| 4. |
862192
|
[1] |
Spacer sleeve
|
|
| 5. |
914533
|
[1] |
Snap ring
|
|
| 6. |
942406
|
[1] |
Woodruff key
|
|
| 7. |
955903
|
[2] |
Washer
|
|
| 8. |
958858
|
[1] |
Sealing ring
|
|
| 9. |
963762
|
[2] |
Hexagon nut
|
|
| 10. |
3828175
|
[1] |
Bearing housing
|
|
| 11. |
948981
|
[1] |
O-ring
|
|
| 12. |
8170446
|
[1] |
Gear
|
|
| 13. |
863652
|
[1] |
V-belt pulley
|
|
| 14. |
965197
|
[4] |
Flange screw
|
|
