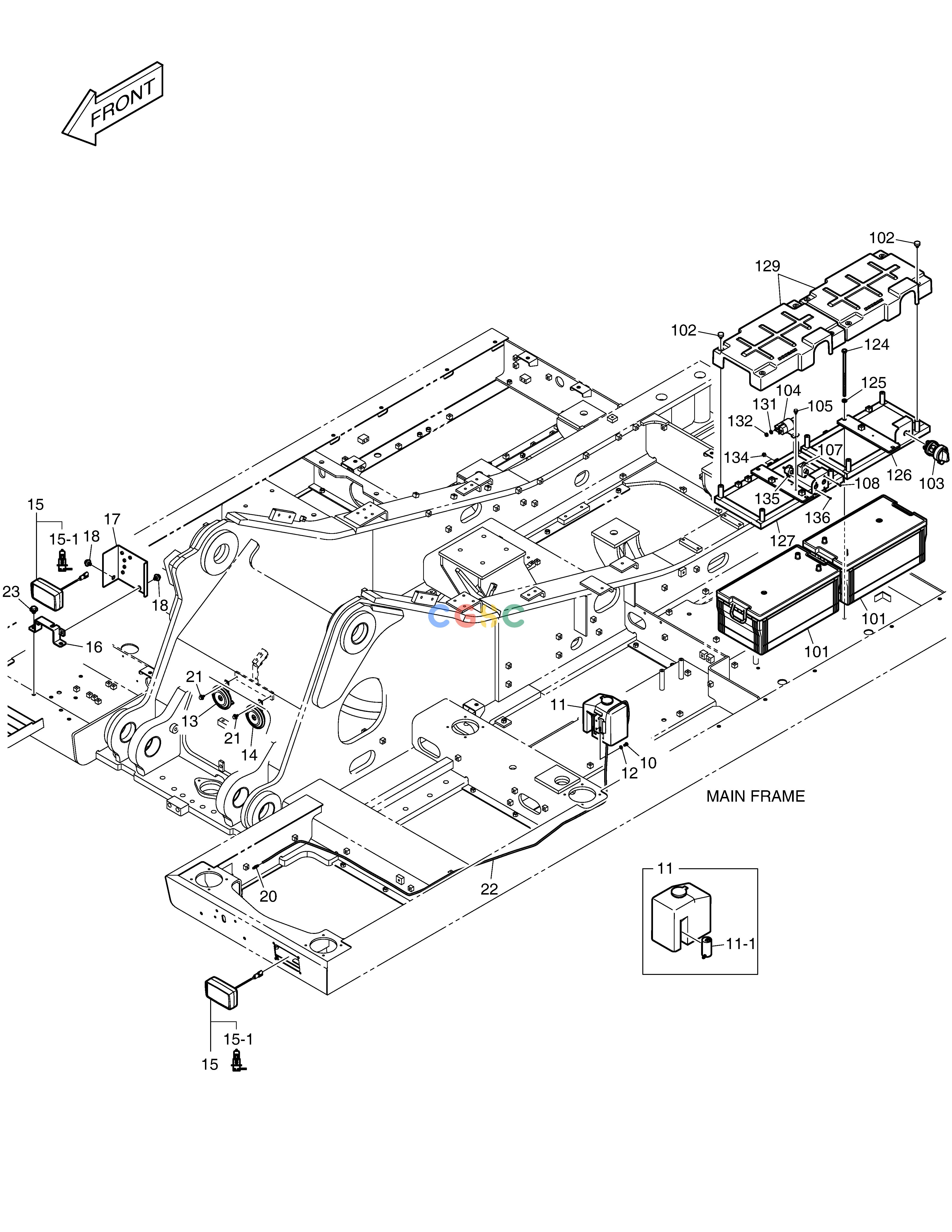

斗山零件查询ELECTRIC PARTS - RELATED DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
304 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01764
|
[-] |
|
|
| 10. |
S0504453
|
[2] |
BOLT
|
|
| 101. |
300101-00327
|
[2] |
|
|
| 102. |
K1003427
|
[8] |
BOLT
|
|
| 103. |
K1057605
|
[1] |
|
|
| 104. |
301202-00153
|
[1] |
RELAY,BATTERY
|
|
| 105. |
DS0025044
|
[2] |
BOLT
|
|
| 107. |
300708-00016
|
[1] |
|
|
| 108. |
K1056613
|
[2] |
SCREW
|
|
| 11. |
K1054553
|
[1] |
TANK,WASHER
|
|
| 11-1. |
K9009874
|
[1] |
. MOTOR,RESERVE TANK
|
|
| 12. |
S5102303
|
[2] |
. WASHER
|
|
| 124. |
DS0001088
|
[4] |
BOLT
|
|
| 125. |
S5010613
|
[4] |
WASHER
|
|
| 126. |
110406-02827C
|
[1] |
|
|
| 127. |
110406-02826B
|
[1] |
|
|
| 129. |
110508-16760
|
[2] |
|
|
| 13. |
300726-00021
|
[1] |
|
|
| 131. |
S4012533
|
[2] |
NUT
|
|
| 132. |
S5102503
|
[2] |
. WASHER
|
|
| 134. |
K1001029
|
[2] |
BOLT
|
|
| 135. |
300708-00341
|
[1] |
|
|
| 136. |
2120-1354
|
[2] |
SCREW
|
|
| 14. |
300726-00022
|
[1] |
|
|
| 15. |
K1055454
|
[2] |
|
|
| 15-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 16. |
195-02622C
|
[1] |
BRACKET
|
|
| 17. |
250201-03062
|
[1] |
|
|
| 18. |
DS0025013
|
[2] |
BOLT
|
|
| 20. |
2415-1018
|
[1] |
ADAPTER
|
|
| 21. |
DS0025033
|
[2] |
BOLT
|
|
| 22. |
4185-1777
|
[1] |
HOSE;WATER
|
|
| 23. |
DS0025025
|
[2] |
BOLT
|
|
