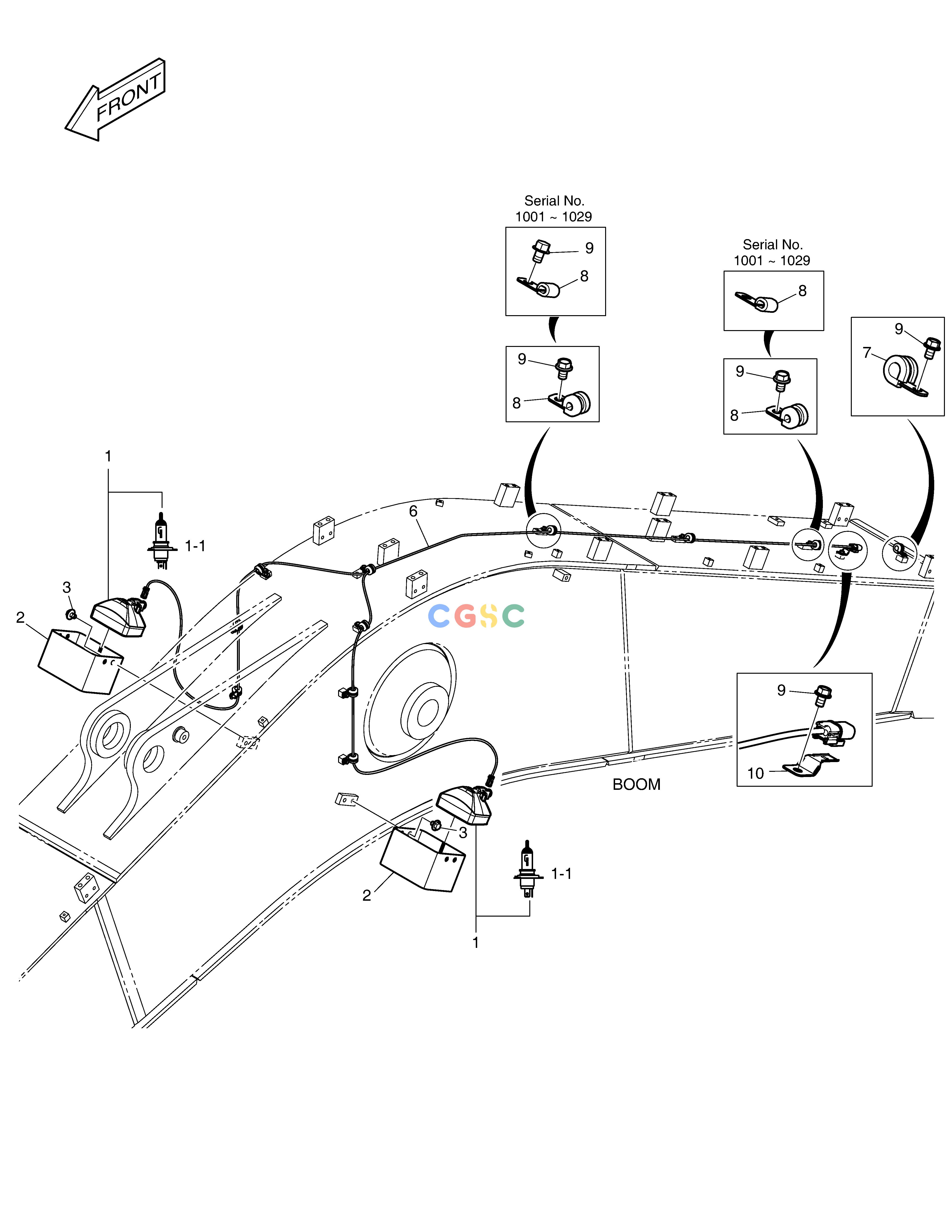

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 300619-02261 | [-] | ||
| 1. | 301005-00132 | [2] | ||
| 1-1. | 2515-1016D4 | [1] | . BULB,HALOGEN | |
| 10. | 2197-1660 | [1] | BRACKET | |
| 2. | 110921-02896 | [2] | ||
| 3. | DS0025019 | [4] | BOLT | |
| 6. | 310207-03443 | [1] | ||
| 6. | 310207-03443A | [1] | ||
| 7. | 124-00208D2 | [1] | CLAMP | |
| 8. | 124-00208D1 | [10] | CLIP | |
| 8. | 124-00208D2 | [10] | CLAMP | |
| 9. | K1001029 | [11] | BOLT | |
| 9. | K1001029 | [12] | BOLT |
