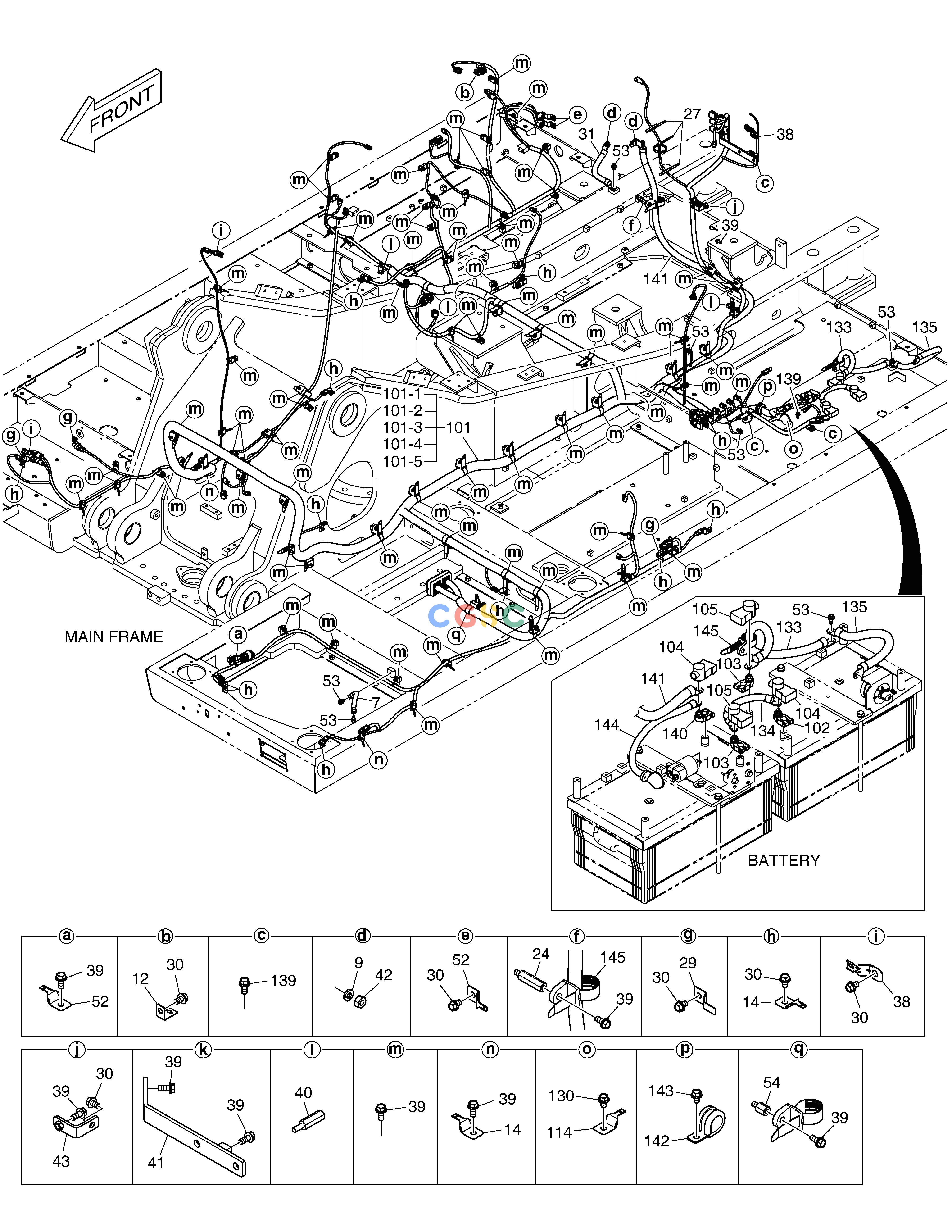

斗山零件查询ELECTRIC WIRING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
408 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02797
|
[-] |
|
|
| 101. |
310207-03430C
|
[1] |
|
|
| 101-1. |
2548-1027
|
[2] |
DIODE
|
|
| 101-2. |
K1000814
|
[2] |
DIODE
|
|
| 101-3. |
K1000815
|
[1] |
DIODE
|
|
| 101-4. |
120402-00439
|
[1] |
CLIP
|
|
| 101-5. |
120402-00440
|
[1] |
CLIP
|
|
| 102. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 103. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 104. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 105. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 114. |
2197-1661
|
[1] |
BRACKET
|
|
| 12. |
110406-02676
|
[1] |
|
|
| 130. |
K1001029
|
[1] |
BOLT
|
|
| 133. |
DS4531160
|
[1] |
|
|
| 134. |
310203-05298
|
[1] |
|
|
| 135. |
2553-1275D132
|
[1] |
|
|
| 139. |
120106-00596
|
[3] |
BOLT
|
|
| 14. |
2197-1661
|
[15] |
BRACKET
|
|
| 140. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 141. |
310203-05676A
|
[1] |
|
|
| 142. |
124-00208D4
|
[1] |
CLIP
|
|
| 143. |
K1001029
|
[1] |
BOLT
|
|
| 144. |
310203-05870
|
[1] |
|
|
| 145. |
120402-00439
|
[1] |
CLIP
|
|
| 24. |
2120-2187
|
[1] |
BOLT
|
|
| 27. |
310101-00035
|
[3] |
TIE,CABLE
|
|
| 29. |
195-02154
|
[3] |
BRACKET
|
|
| 30. |
K1001029
|
[22] |
BOLT
|
|
| 31. |
310203-05871
|
[1] |
|
|
| 38. |
110406-02760A
|
[3] |
BRACKET
|
|
| 39. |
120106-00596
|
[78] |
BOLT
|
|
| 40. |
120117-00073
|
[3] |
|
|
| 41. |
110433-00341
|
[1] |
|
|
| 42. |
S4012633
|
[2] |
NUT
|
|
| 43. |
110406-03388
|
[1] |
|
|
| 52. |
110406-02674
|
[3] |
|
|
| 53. |
120106-00701
|
[6] |
BOLT
|
|
| 54. |
120117-00207
|
[1] |
|
|
| 7. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 9. |
S5102603
|
[2] |
. WASHER
|
|
