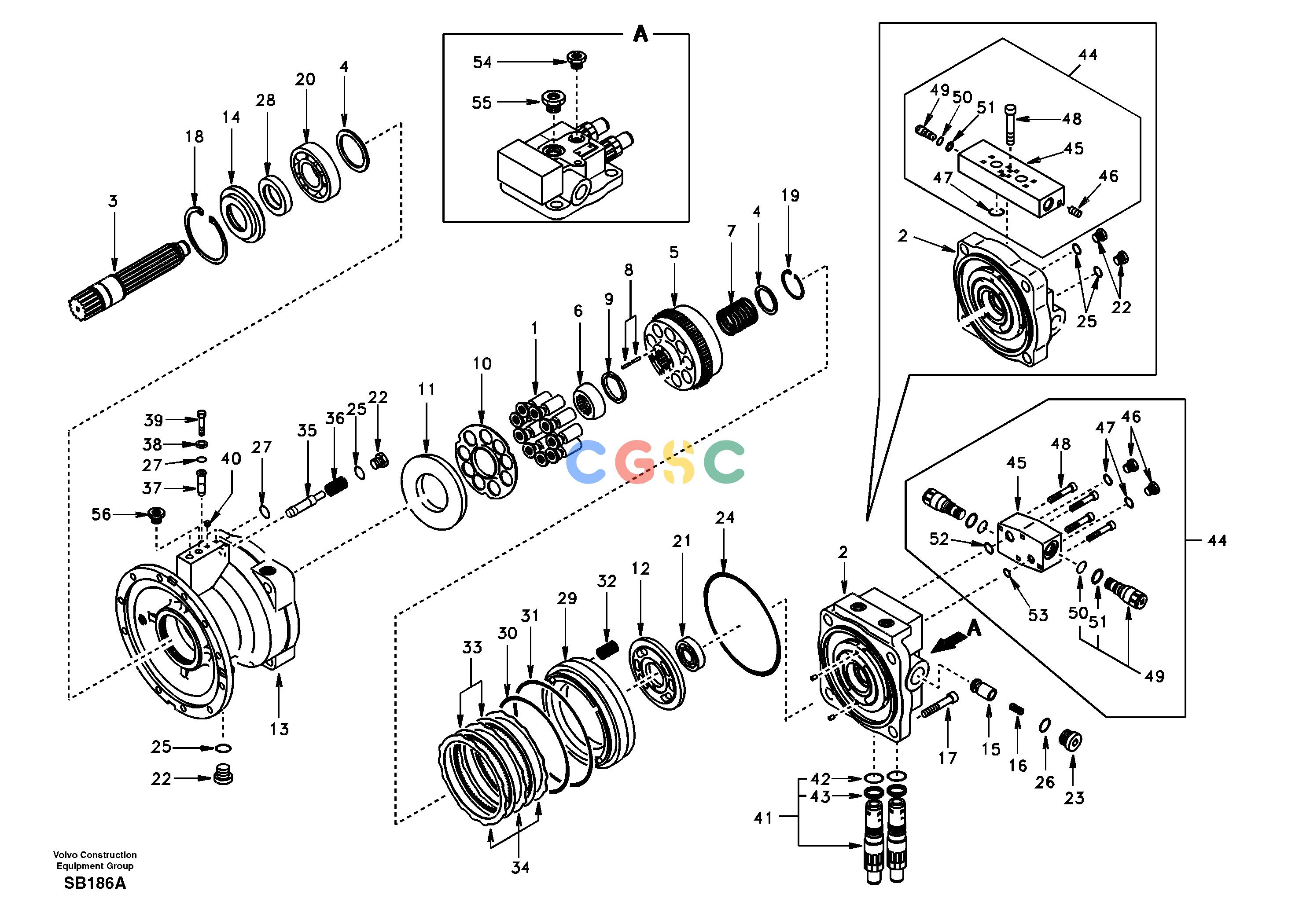

沃尔沃零件查询EC240 Swing motorNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA1142-00520
|
[1] |
Swing motor
|
SER NO 3001-3103
|
| |
VOE14550094
|
[1] |
Swing motor
|
SER NO 3104-
|
| 1. |
VOE14500062
|
[1] |
Piston
|
|
| 2. |
SA8230-13560
|
[1] |
Casing
|
SER NO 3001-3103
|
| |
VOE14509246
|
[1] |
Casing
|
SER NO 3104-
|
| 3. |
VOE14500066
|
[1] |
Shaft
|
|
| 4. |
SA8230-13500
|
[1] |
Spacer
|
|
| 5. |
SA8230-13680
|
[1] |
Cylinder
|
|
| 6. |
SA8230-13700
|
[1] |
Retainer
|
|
| 7. |
SA8230-13460
|
[1] |
Spring
|
|
| 8. |
SA8230-26390
|
[12] |
Bar
|
|
| 9. |
SA8230-13490
|
[3] |
Spacer
|
|
| 10. |
SA8230-13630
|
[1] |
Plate
|
|
| 11. |
SA8230-13710
|
[1] |
Plate
|
|
| 12. |
SA8230-13750
|
[1] |
Plate
|
|
| 13. |
SA8230-13580
|
[1] |
Casing
|
|
| 14. |
SA8230-13540
|
[1] |
Cover
|
|
| 15. |
SA8230-14160
|
[1] |
Control plunger
|
SER NO 3001-3103
|
| |
VOE14501798
|
[2] |
Plunger
|
SER NO 3104-
|
| 16. |
SA8230-14150
|
[1] |
Spring
|
SER NO 3001-3103
|
| |
VOE14501799
|
[2] |
Spring
|
SER NO 3104-
|
| 17. |
SA8230-25820
|
[4] |
Bolt
|
|
| 18. |
SA8230-25760
|
[1] |
Ring
|
|
| 19. |
SA8230-25740
|
[1] |
Ring
|
|
| 20. |
SA8230-26530
|
[1] |
Roller bearing
|
|
| 21. |
SA8230-26600
|
[1] |
Roller bearing
|
|
| 22. |
SA8230-25640
|
[4] |
Plug
|
SER NO 3001-3103
|
| |
SA8230-25640
|
[2] |
Plug
|
SER NO 3104-
|
| 23. |
SA8230-26730
|
[2] |
Plug
|
SER NO 3001-3103
|
| |
VOE14501802
|
[2] |
Plug
|
SER NO 3104-
|
| 24. |
SA8230-25551
|
[1] |
O-ring
|
|
| 25. |
VOE983502
|
[4] |
O-ring
|
SER NO 3001-3103
|
| |
VOE983502
|
[2] |
O-ring
|
SER NO 3104-
|
| 26. |
VOE983526
|
[2] |
O-ring
|
SER NO 3001-3103
|
| |
SA9511-12034
|
[2] |
O-ring
|
SER NO 3104-
|
| 27. |
VOE983503
|
[2] |
O-ring
|
|
| 28. |
VOE14563078
|
[1] |
Seal
|
|
| 29. |
SA8220-10730
|
[1] |
Piston
|
|
| 30. |
VOE14552321
|
[1] |
O-ring
|
|
| 31. |
SA8230-25560
|
[1] |
O-ring
|
|
| 32. |
SA8230-14040
|
[12] |
Spring brake
|
|
| 33. |
SA8230-13770
|
[3] |
Friction plate
|
|
| 34. |
SA8230-13720
|
[4] |
Separating plate
|
|
| 35. |
SA8230-13450
|
[1] |
Slide
|
|
| 36. |
SA8230-13480
|
[1] |
Spring
|
|
| 37. |
VOE14500067
|
[1] |
Plunger
|
|
| 38. |
SA8230-13550
|
[1] |
Cover
|
|
| 39. |
SA8230-25830
|
[2] |
Hex. socket screw
|
|
| 40. |
VOE14560637
|
[3] |
Plug
|
|
| 41. |
VOE14518517
|
[2] |
Relief valve
|
|
| 42. |
VOE990582
|
[1] |
O-ring
|
|
| 43. |
VOE14880837
|
[1] |
Back-up ring
|
|
| 44. |
SA8230-27390
|
[1] |
Block
|
SER NO 3001-3103
|
| |
SA8230-27360
|
[1] |
Block
|
SER NO 3104-
|
| 45. |
SA8230-27150
|
[1] |
Casing
|
SER NO 3001-3103
|
| |
SA8230-29070
|
[1] |
Casing
|
SER NO 3104-
|
| 46. |
SA8240-03270
|
[6] |
Plug
|
SER NO 3001-3103
|
| |
SA8230-25640
|
[2] |
Plug
|
SER NO 3104-
|
| 47. |
VOE990582
|
[2] |
O-ring
|
SER NO 3001-3103
|
| |
VOE983502
|
[2] |
O-ring
|
SER NO 3104-
|
| 48. |
SA8230-25870
|
[2] |
Bolt
|
SER NO 3001-3103
|
| |
SA8240-03610
|
[4] |
Screw
|
SER NO 3104-
|
| 49. |
VOE14500037
|
[2] |
Valve
|
|
| 50. |
VOE983509
|
[1] |
O-ring
|
|
| 51. |
VOE14625240
|
[1] |
Ring
|
|
| 52. |
VOE983503
|
[2] |
O-ring
|
|
| 53. |
VOE983493
|
[2] |
O-ring
|
|
| 54. |
SA8230-26930
|
[1] |
Plug
|
|
| 55. |
SA8230-26920
|
[1] |
Plastic plug
|
SER NO 3001-3103
|
| |
VOE14612219
|
[1] |
Plug
|
SER NO 3104-
|
| 56. |
SA8230-33690
|
[2] |
Plug
|
|
| 100. |
SA8148-10180
|
[1] |
Seal
|
SER NO 3001-3103
|
| |
VOE14556029
|
[1] |
Seal
|
SER NO 3104-
|
