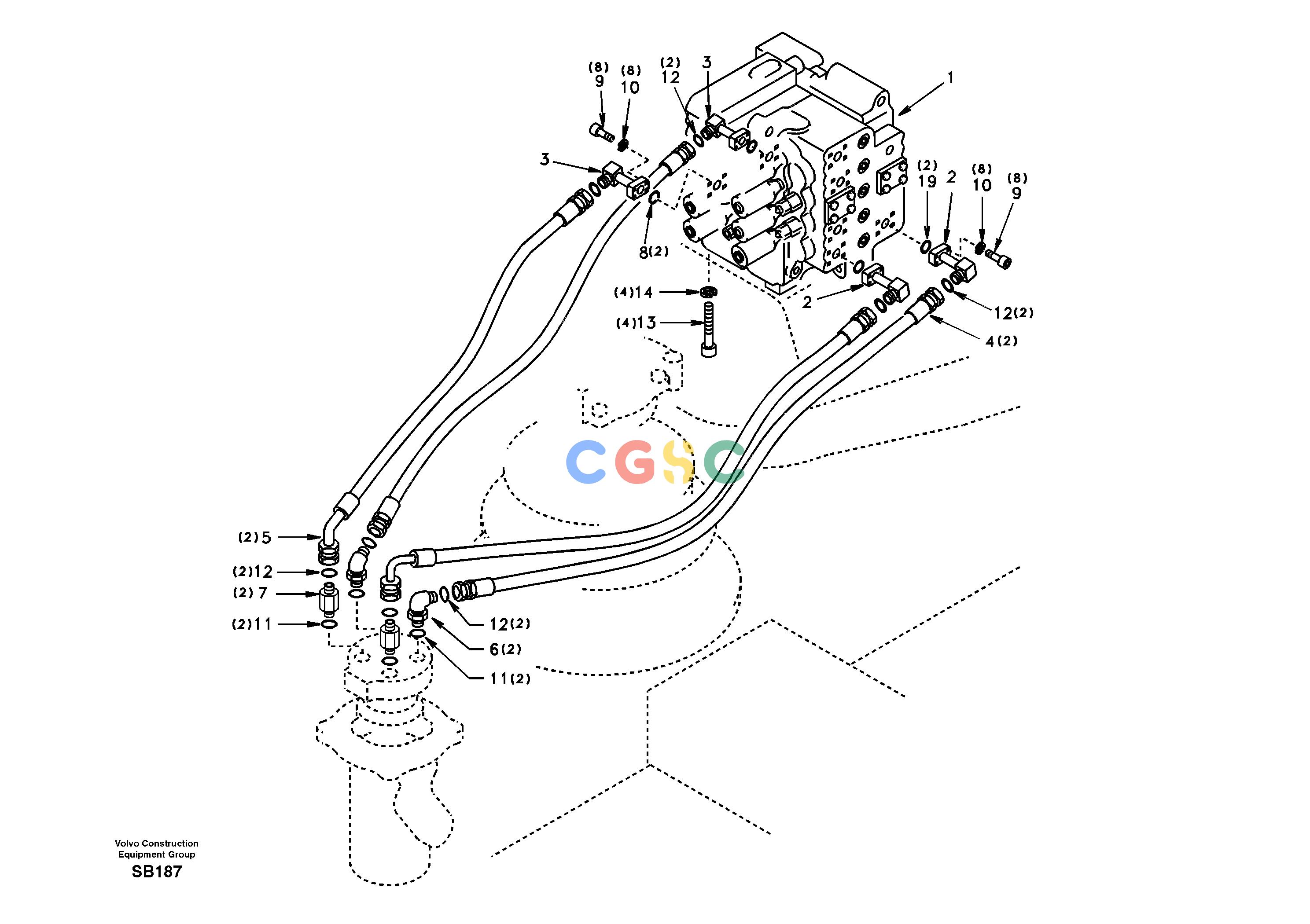

沃尔沃零件查询EC240 Turning joint line, control valve to turning jointNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA7270-00512
|
[1] |
Control valve
|
|
| 2. |
SA1142-03110
|
[2] |
Pipe
|
|
| 3. |
SA1142-03530
|
[2] |
Pipe
|
|
| 4. |
SA9401-05626
|
[2] |
Hose
|
|
| 5. |
VOE936370
|
[2] |
Hose assembly
|
|
| 6. |
VOE14884882
|
[2] |
Elbow Nipple
|
|
| 7. |
SA9419-11080
|
[2] |
Connector
|
|
| 8. |
VOE13948700
|
[4] |
O-ring
|
|
| 9. |
SA9016-11008
|
[16] |
Bolt
|
|
| 10. |
SA9213-10000
|
[16] |
Spring washer
|
|
| 11. |
VOE983527
|
[4] |
O-ring
|
|
| 12. |
VOE981289
|
[8] |
O-ring
|
|
| 13. |
SA9011-11206
|
[4] |
Bolt
|
|
| 14. |
SA9213-12000
|
[4] |
Spring washer
|
|
