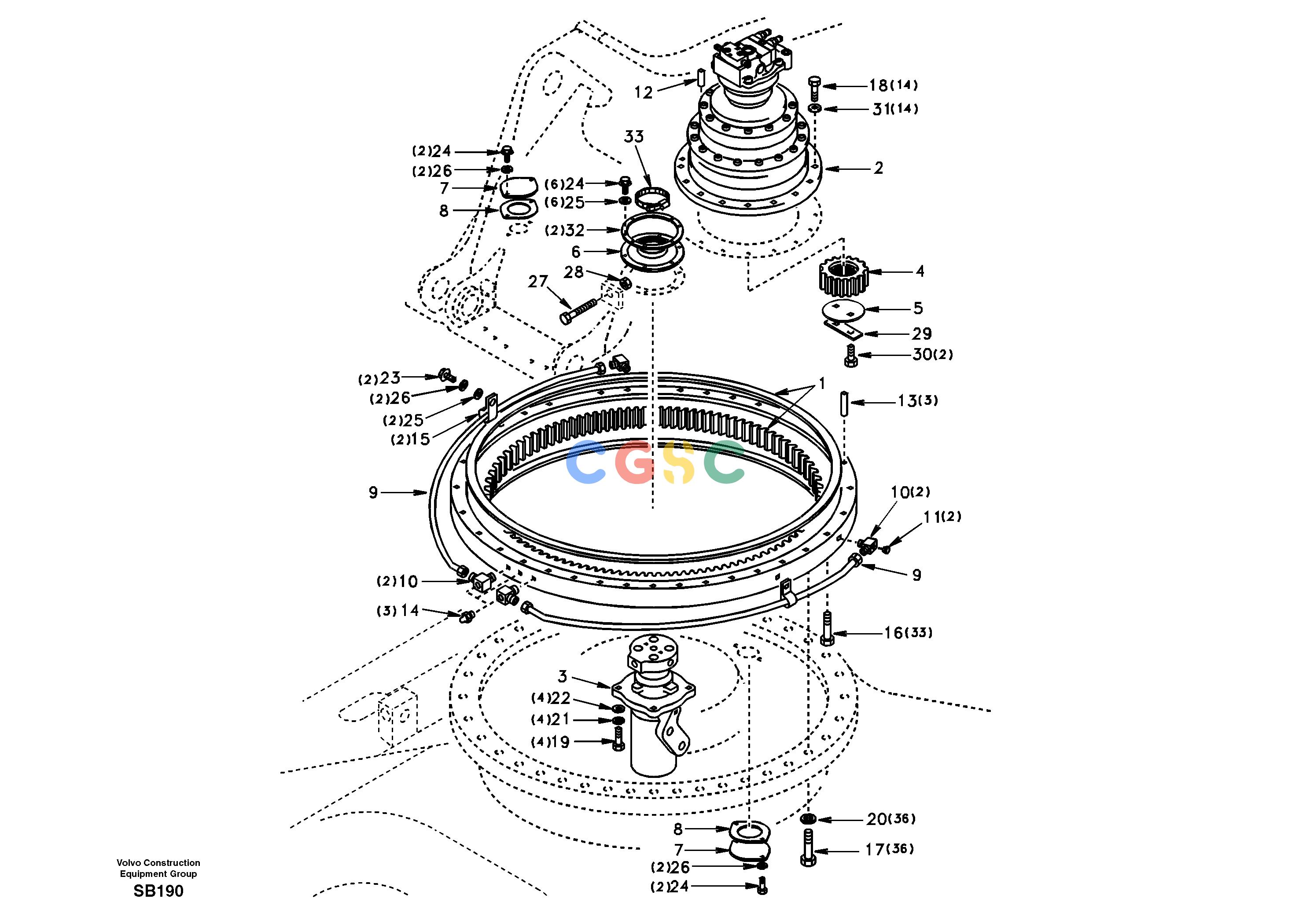

沃尔沃零件查询EC240 Swing systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1155-00040
|
[1] |
Swing Gear
|
|
| |
VOE14511866
|
[2] |
Seal
|
SER NO 3001-3349
|
| |
VOE14511866
|
[2] |
Seal
|
SER NO 3350-
|
| 2. |
SA7118-34000
|
[1] |
Swing Motor
|
SER NO 3001-3103
|
| |
VOE14500454
|
[1] |
Swing Motor
|
SER NO 3104-
|
| 3. |
SA1146-00112
|
[1] |
Turning Joint
|
|
| 4. |
SA1155-00050
|
[1] |
Swing gear
|
GEAR-PINION
|
| 5. |
SA1050-63120
|
[1] |
Plate
|
|
| 6. |
SA1155-01011
|
[1] |
Seal
|
|
| 7. |
SA1050-62100
|
[2] |
Cover
|
|
| 8. |
SA1050-62110
|
[2] |
Packing
|
|
| 9. |
SA1155-01080
|
[2] |
Pipe
|
|
| 10. |
SA1050-14201
|
[4] |
Elbow
|
|
| 11. |
SA9415-43012
|
[2] |
Plug
|
|
| 12. |
SA1055-01342
|
[1] |
Pin
|
|
| 13. |
SA1050-13840
|
[3] |
Pin
|
|
| 14. |
SA9481-11003
|
[3] |
Nipple
|
|
| 15. |
SA9315-01002
|
[2] |
Insulating clip
|
|
| 16. |
VOE992975
|
[33] |
Hexagon screw
|
|
| 17. |
VOE992983
|
[36] |
Hexagon screw
|
|
| 18. |
SA9011-22014
|
[14] |
Bolt
|
|
| 19. |
SA9011-11610
|
[4] |
Bolt
|
|
| 20. |
VOE992059
|
[36] |
Plain washer
|
|
| 21. |
SA9213-16000
|
[4] |
Spring washer
|
|
| 22. |
SA9211-16000
|
[4] |
Washer
|
|
| 23. |
VOE992504
|
[2] |
Hexagon screw
|
|
| 24. |
SA9011-11004
|
[10] |
Bolt
|
|
| 25. |
VOE992040
|
[8] |
Plain washer
|
|
| 26. |
SA9213-10000
|
[6] |
Spring washer
|
|
| 27. |
VOE992979
|
[1] |
Hexagon screw
|
|
| 28. |
VOE991655
|
[1] |
Hexagon nut
|
|
| 29. |
SA1155-01110
|
[1] |
Plate
|
|
| 30. |
SA9011-11607
|
[2] |
Bolt
|
|
| 31. |
VOE60110287
|
[14] |
Washer
|
|
| 32. |
SA1155-01130
|
[1] |
Plate
|
|
| 33. |
VOE14883767
|
[1] |
Hose clamp
|
|
