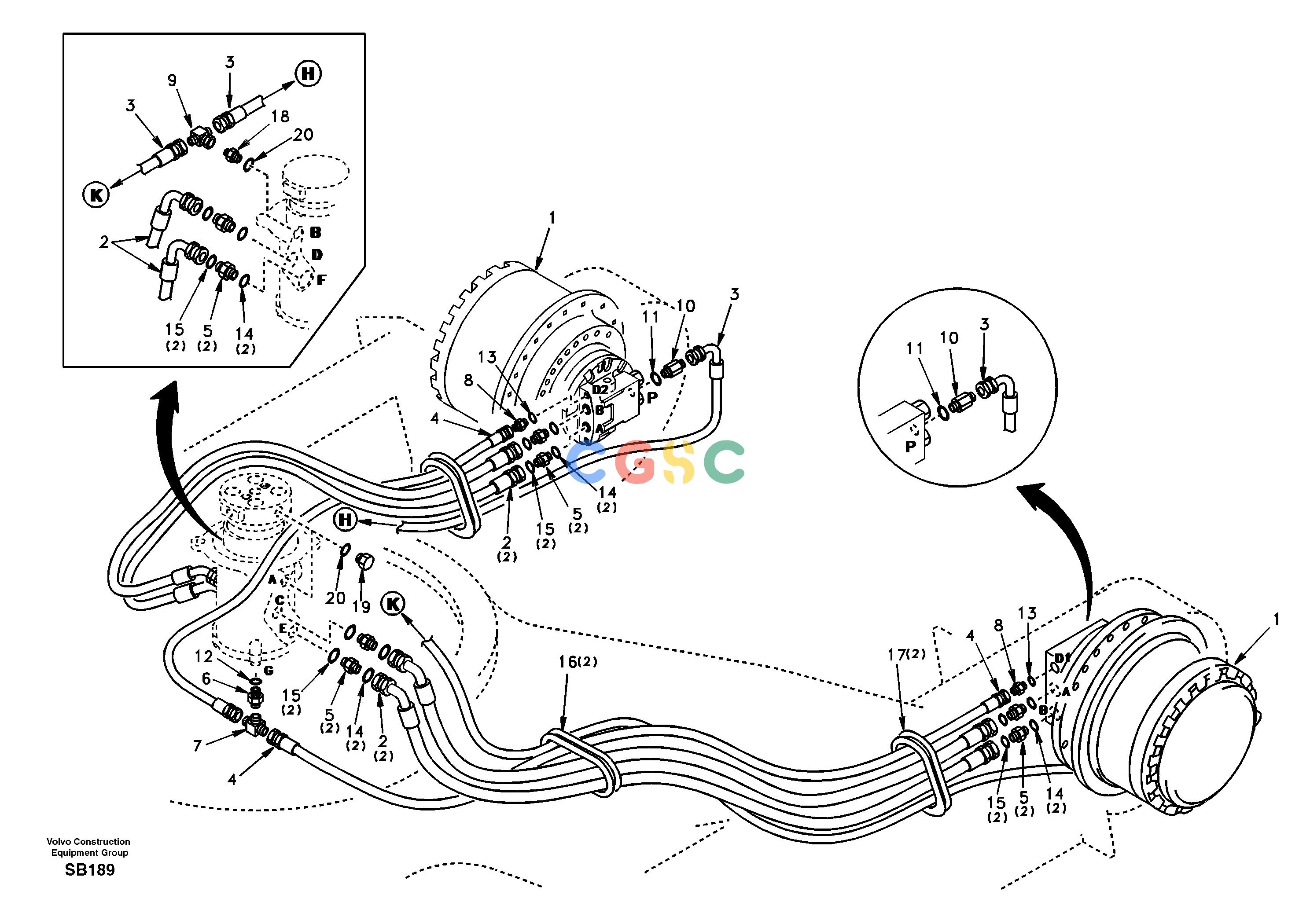

沃尔沃零件查询EC240 Turning joint line, turning joint to travel motorNoneDE16F001-DE16F002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA7117-34001
|
[2] |
Drive unit
|
|
| 2. |
VOE937812
|
[4] |
Hose assembly
|
|
| |
SA9402-05644
|
|
Hose
|
|
| 3. |
SA9453-02359
|
[2] |
Hose assembly
|
SER NO 3001-3544
|
| |
SA9453-02259
|
[2] |
Hose assembly
|
SER NO 3545-
|
| |
SA9453-02358
|
|
Hose assembly
|
SER NO 3001-3544
|
| |
SA9453-02258
|
|
Hose assembly
|
SER NO 3545-
|
| 4. |
SA9451-04348
|
[2] |
Hose assembly
|
|
| |
SA9451-04347
|
|
Hose assembly
|
|
| 5. |
VOE14884872
|
[8] |
Nipple
|
|
| 6. |
SA9412-11170
|
[1] |
Connector
|
|
| 7. |
SA9411-92200
|
[1] |
T-nipple
|
|
| 8. |
VOE14883808
|
[2] |
Nipple
|
|
| 9. |
VOE14720827
|
[1] |
T-nipple
|
|
| 10. |
SA9412-11090
|
[2] |
Nipple
|
|
| 11. |
VOE983502
|
[2] |
O-ring
|
|
| 12. |
VOE983524
|
[1] |
O-ring
|
|
| 13. |
VOE990557
|
[2] |
O-ring
|
|
| 14. |
VOE983527
|
[8] |
O-ring
|
|
| 15. |
VOE981289
|
[8] |
O-ring
|
|
| 16. |
VOE14529325
|
[2] |
Grommet
|
|
| 17. |
SA1043-00190
|
[2] |
Grommet
|
|
| 18. |
SA9412-11130
|
[1] |
Nipple
|
|
| 19. |
SA9415-11031
|
[2] |
Plug
|
|
| 20. |
VOE983505
|
[3] |
O-ring
|
|
