沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemCirculation Pump for Engines without Radiator CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
873 次

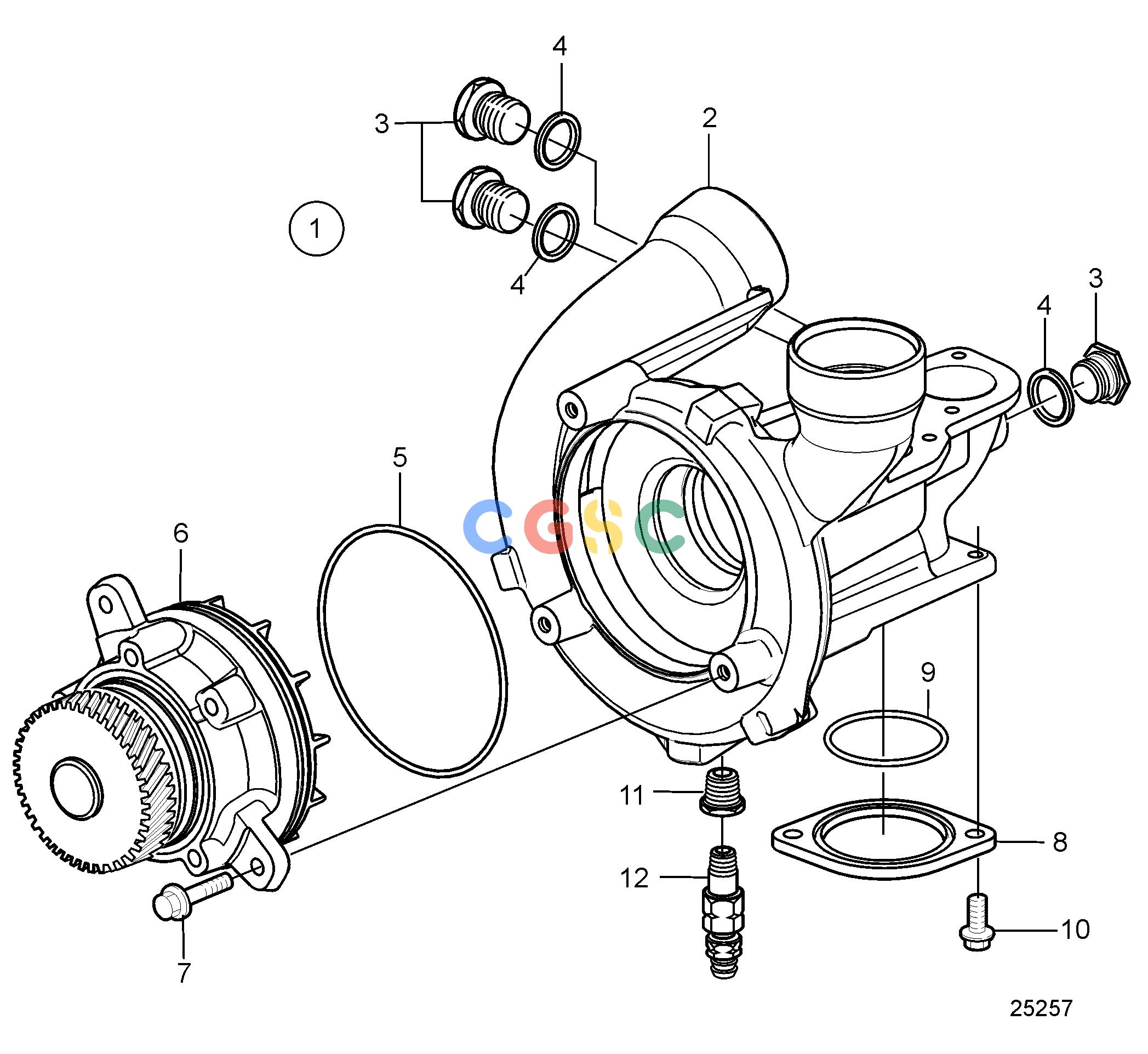

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3826608
|
[1] |
Coolant pump
|
Replaced by pump 21105524
|
| 2. |
21105524
|
[1] |
Coolant pump
|
|
| 3. |
914392
|
[3] |
Plug
|
|
| 4. |
943908
|
[3] |
Gasket
|
|
| 5. |
975687
|
[1] |
O-ring
|
|
| 6. |
20431135
|
[1] |
Bearing housing
|
(8170833) E.U=3803567, Repl by 3803909
|
| 6. |
3803909
|
[1] |
Coolant pump
|
(20431135)
|
| 7. |
946173
|
[3] |
Flange screw
|
|
| 8. |
3827303
|
[1] |
Cap
|
|
| 9. |
925255
|
[1] |
O-ring
|
|
| 10. |
946173
|
[2] |
Flange screw
|
|
| 11. |
479954
|
[1] |
Nipple
|
|
| 12. |
949918
|
[1] |
Shut-off cock
|
|
