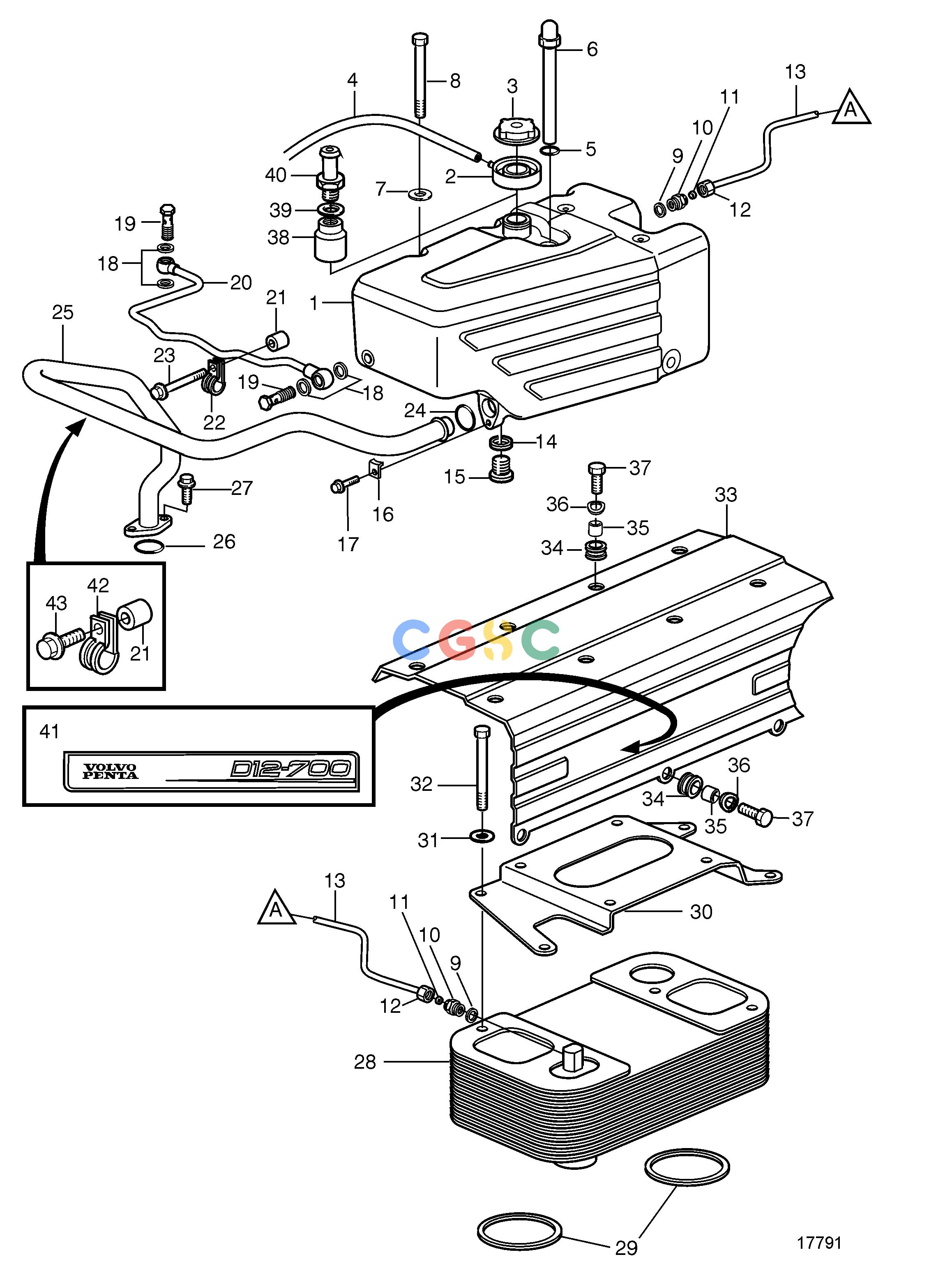

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemExpansion Tank and AftercoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
512 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886225
|
[1] |
Expansion tank
|
|
| 2. |
3828863
|
[1] |
Rubber collar
|
|
| 3. |
1674083
|
[1] |
Pressure cap
|
|
| 4. |
192618
|
[1] |
Hose
|
L=1050mm
|
| 5. |
976932
|
[1] |
Gasket
|
|
| 6. |
3827766
|
[1] |
Level indicator
|
|
| 7. |
941907
|
[4] |
Spring washer
|
|
| 8. |
968999
|
[4] |
Flange screw
|
|
| 9. |
947084
|
[2] |
Gasket
|
|
| 10. |
190132
|
[2] |
Nipple
|
|
| 11. |
956968
|
[2] |
Ferrule
|
|
| 12. |
956982
|
[2] |
Fitting nut
|
|
| 13. |
3831308
|
[1] |
Air vent pipe
|
|
| 14. |
948884
|
[1] |
Gasket
|
|
| 15. |
960632
|
[1] |
Plug
|
|
| 16. |
421654
|
[1] |
Clamp
|
|
| 17. |
946440
|
[1] |
Flange screw
|
|
| 18. |
947084
|
[4] |
Gasket
|
|
| 19. |
969299
|
[2] |
Hollow screw
|
|
| 20. |
3827549
|
[1] |
Air vent pipe, therm. housing
|
|
| 21. |
843075
|
[2] |
Spacer sleeve
|
|
| 22. |
942400
|
[1] |
Clamp
|
|
| 23. |
968999
|
[1] |
Flange screw
|
|
| 24. |
471637
|
[1] |
Sealing ring
|
|
| 25. |
3587289
|
[1] |
Coolant pipe, circulation pump
|
|
| 26. |
862637
|
[1] |
Gasket
|
|
| 27. |
946173
|
[2] |
Flange screw
|
|
| 28. |
21423502
|
[1] |
Charge air cooler
|
|
| 29. |
976063
|
[2] |
O-ring
|
|
| 30. |
3828754
|
[1] |
Bracket
|
|
| 31. |
941908
|
[4] |
Spring washer
|
|
| 32. |
963261
|
[4] |
Hexagon screw
|
|
| 33. |
3830041
|
[1] |
Cover
|
|
| 34. |
673989
|
[11] |
Grommet
|
|
| 35. |
3830336
|
[11] |
Spacer
|
|
| 36. |
941670
|
[11] |
Washer
|
|
| 37. |
946730
|
[11] |
Hexagon screw
|
|
| 38. |
3826167
|
[1] |
Adapter
|
|
| 39. |
836169
|
[1] |
Gasket
|
|
| 40. |
943268
|
[1] |
Hose nipple
|
|
| 41. |
3835918
|
[1] |
Decal
|
D12-715
|
| 41. |
3830377
|
[1] |
Decal
|
D12-700
|
| 41. |
3830378
|
[1] |
Decal
|
D12-675
|
| 41. |
3830379
|
[1] |
Decal
|
D12-650
|
| 41. |
3830380
|
[1] |
Decal
|
D12-615
|
| 41. |
3832799
|
[1] |
Decal
|
D12-550, Repl by 3887842
|
| 41. |
3837126
|
[1] |
Decal
|
D12-525
|
| 41. |
3808810
|
[1] |
Decal
|
D12-500, Repl by 3887842
|
| 41. |
3832800
|
[1] |
Decal
|
D12-450, Repl by 3887842
|
| 41. |
3832801
|
[1] |
Decal
|
D12-400, Repl by 3887842
|
| 41. |
3808809
|
[1] |
Decal
|
D12-350, Repl by 3887842
|
| 41. |
3808808
|
[1] |
Decal
|
D12-300, Repl by 3887842
|
| 41. |
3887842
|
[1] |
Decal
|
D12-MH
|
| 42. |
947827
|
[1] |
Clamp
|
|
| 43. |
945444
|
[1] |
Flange screw
|
|
