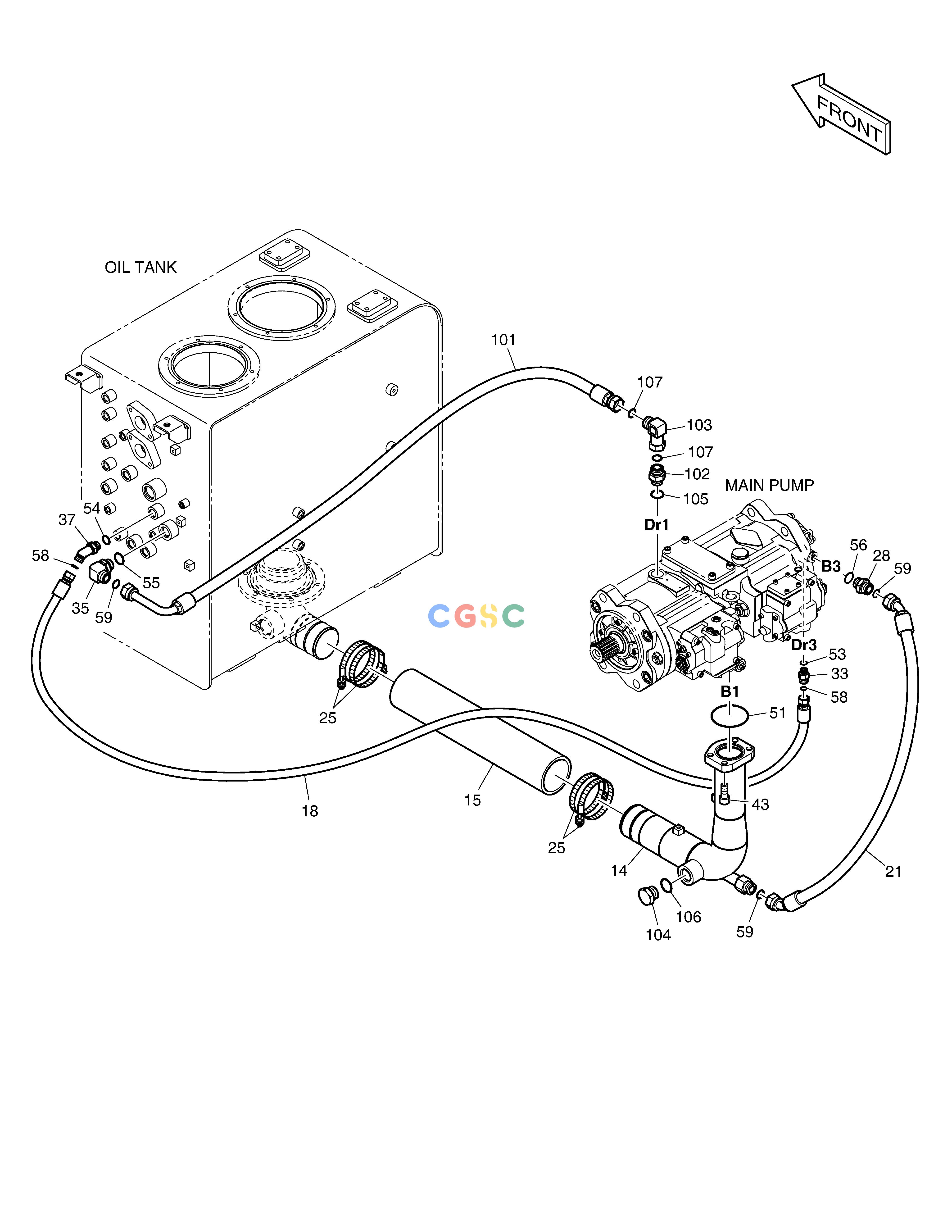

斗山零件查询OIL COOLER PIPING(1) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08577
|
[-] |
|
|
| 101. |
DS20132561
|
[1] |
|
|
| 102. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 103. |
DS2291014
|
[1] |
ELBOW
|
|
| 104. |
2181-1950D9
|
[1] |
PLUG
|
|
| 105. |
S8000241
|
[1] |
O-RING
|
|
| 106. |
S8000291
|
[1] |
O-RING
|
|
| 107. |
S8030121
|
[2] |
O-RING
|
|
| 14. |
420218-00364A
|
[1] |
|
|
| 15. |
2185-1737D1
|
[1] |
HOSE
|
|
| 18. |
DS20111699
|
[1] |
|
|
| 21. |
DS2020214
|
[1] |
|
|
| 25. |
S8500118
|
[4] |
COLLIER
|
|
| 28. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 33. |
DS2232130
|
[1] |
ADAPTER
|
|
| 35. |
2181-2294D10
|
[1] |
ELBOW
|
|
| 37. |
DS2338046
|
[1] |
|
|
| 43. |
S2215466
|
[4] |
BOLT
|
|
| 51. |
2180-1026D31
|
[1] |
O-RING
|
|
| 53. |
S8000141
|
[1] |
O-RING
|
|
| 54. |
S8000181
|
[1] |
O-RING
|
|
| 55. |
S8000231
|
[1] |
O-RING
|
|
| 56. |
S8000241
|
[1] |
O-RING
|
|
| 58. |
S8030081
|
[2] |
O-RING
|
|
| 59. |
S8030121
|
[3] |
O-RING
|
|
