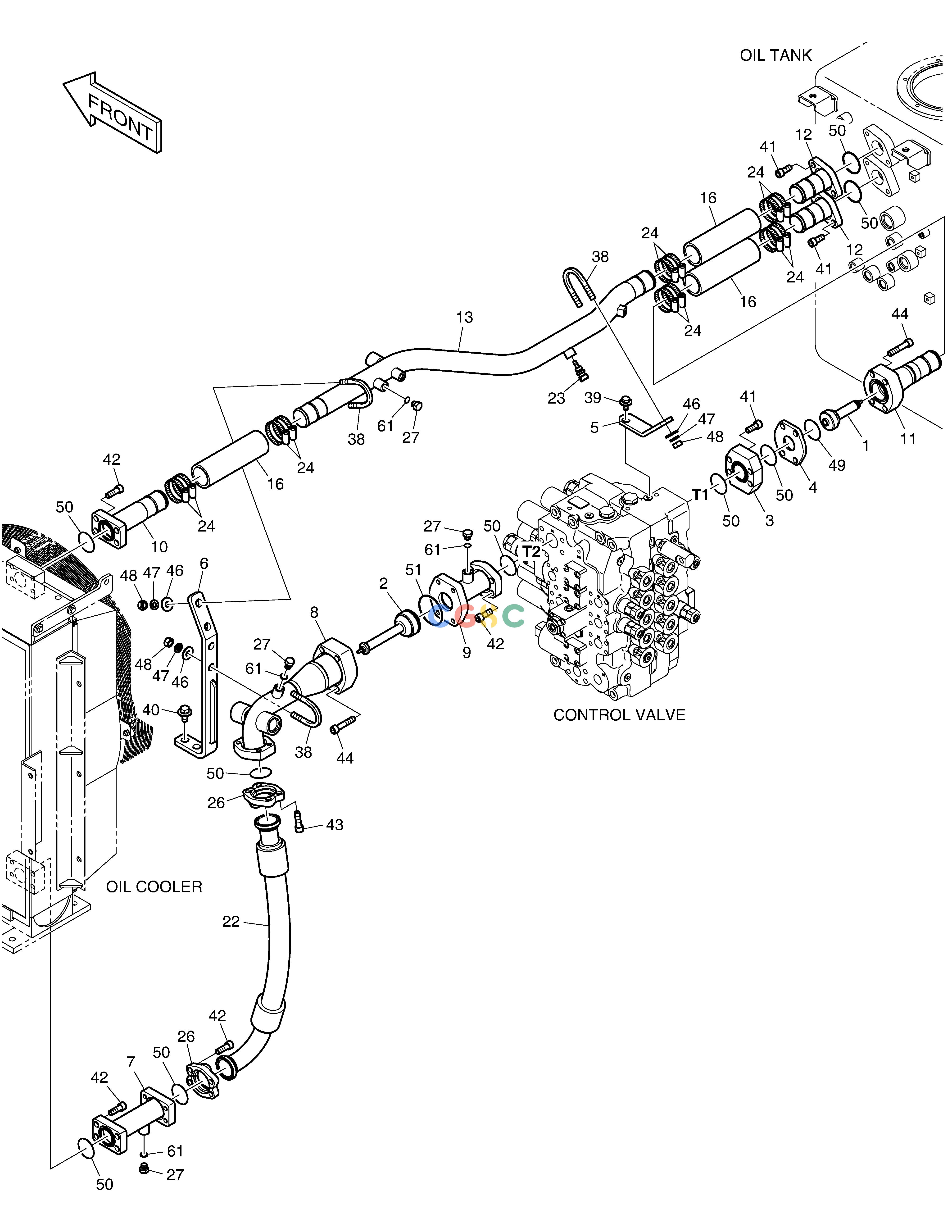

斗山零件查询OIL COOLER PIPING(2) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
468 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08577
|
[-] |
|
|
| 1. |
410128-00005A
|
[1] |
|
|
| 10. |
420207-00078A
|
[1] |
|
|
| 11. |
420207-00079A
|
[1] |
|
|
| 12. |
420207-00080
|
[2] |
|
|
| 13. |
420207-02785A
|
[1] |
|
|
| 16. |
2185-1776D2
|
[3] |
HOSE 200L
|
|
| 2. |
410128-00053
|
[1] |
|
|
| 22. |
DS20401202
|
[1] |
|
|
| 23. |
K1003296
|
[1] |
SENSOR,HYD OIL TEMP
|
|
| 24. |
S8500067
|
[12] |
CLAMP
|
|
| 26. |
4215-1003D5
|
[4] |
FLANGE
|
|
| 27. |
2181-1950D1
|
[4] |
PLUG
|
|
| 3. |
100201-00008A
|
[1] |
|
|
| 38. |
120-00317
|
[3] |
BOLT
|
|
| 39. |
DS0025017
|
[1] |
BOLT
|
|
| 4. |
100201-00009A
|
[1] |
|
|
| 40. |
DS0025018
|
[2] |
BOLT
|
|
| 41. |
S2215266
|
[8] |
BOLT
|
|
| 42. |
S2215366
|
[16] |
BOLT
|
|
| 43. |
S2215466
|
[4] |
BOLT
|
|
| 44. |
S2215866
|
[8] |
BOLT;SOCKET M12X1.75X60
|
|
| 46. |
2114-1058D72
|
[6] |
WASHER
|
|
| 47. |
S5102703
|
[6] |
WASHER
|
|
| 48. |
S4012733
|
[6] |
NUT
|
|
| 49. |
2180-1026D27
|
[1] |
O-RING
|
|
| 5. |
110406-00092
|
[1] |
|
|
| 50. |
2180-1026D28
|
[9] |
O-RING
|
|
| 51. |
2180-1026D31
|
[1] |
O-RING
|
|
| 6. |
110406-00163A
|
[1] |
|
|
| 61. |
S8000111
|
[4] |
O-RING
|
|
| 7. |
420207-02782
|
[1] |
|
|
| 8. |
420207-02783
|
[1] |
|
|
| 9. |
420207-02784
|
[1] |
|
|
