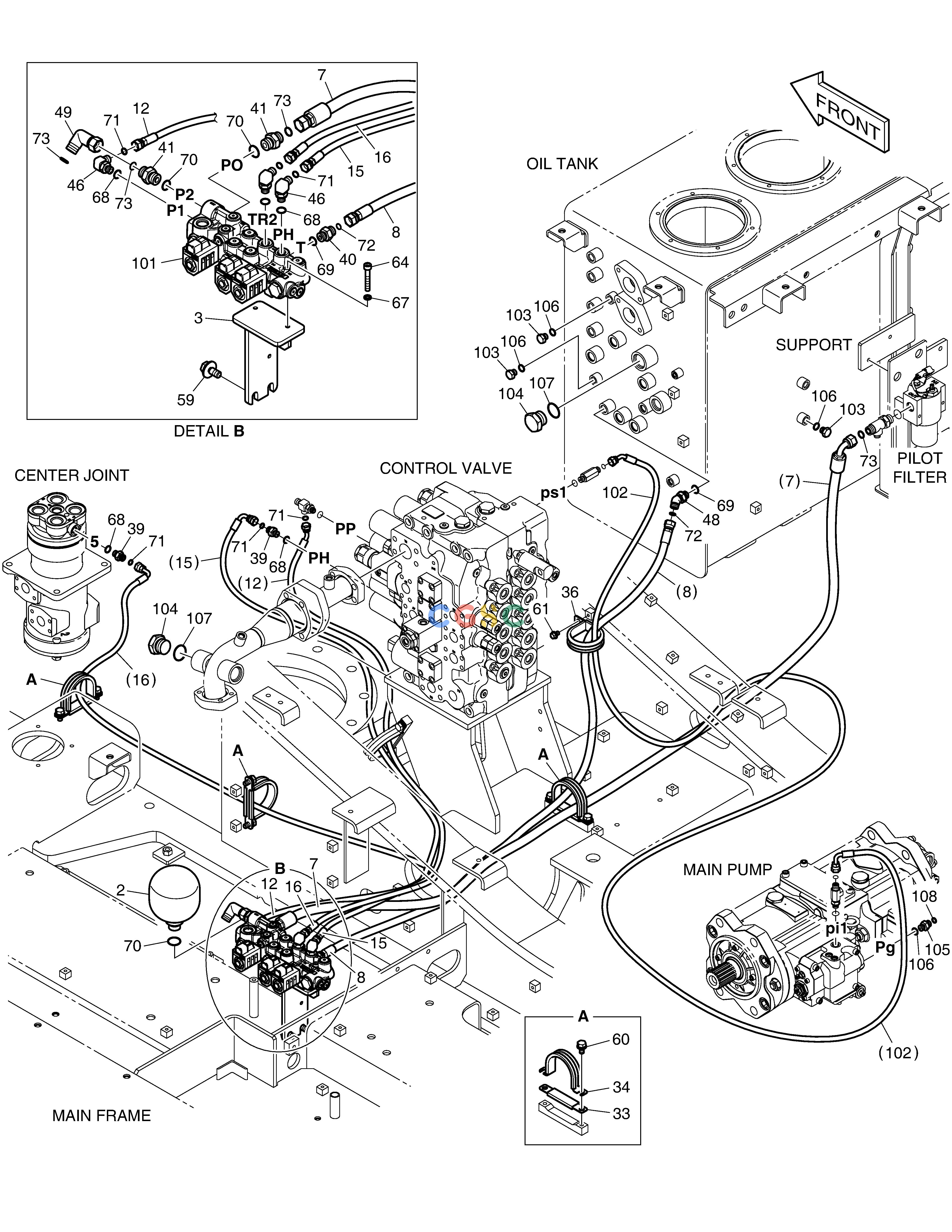

斗山零件查询PILOT PIPING(2) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08546
|
[-] |
|
|
| 101. |
410135-00237A
|
[1] |
|
|
| 102. |
DS2122121
|
[1] |
|
|
| 103. |
2181-1950D1
|
[3] |
PLUG
|
|
| 104. |
2181-1950D9
|
[2] |
PLUG
|
|
| 105. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 106. |
S8000111
|
[4] |
O-RING
|
|
| 107. |
S8000291
|
[2] |
O-RING
|
|
| 108. |
S8030041
|
[1] |
O-RING
|
|
| 12. |
DS2120021
|
[1] |
|
|
| 15. |
DS2121045
|
[1] |
|
|
| 16. |
DS2121212
|
[1] |
|
|
| 2. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 3. |
110425-00240
|
[1] |
|
|
| 33. |
120202-00055
|
[3] |
|
|
| 34. |
120202-00137
|
[3] |
|
|
| 36. |
124-00208D8
|
[1] |
CLIP
|
|
| 39. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 40. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 41. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 46. |
2181-2815D4
|
[3] |
ELBOW
|
|
| 48. |
2181-2816D5
|
[1] |
ELBOW
|
|
| 49. |
DS2291011
|
[1] |
ELBOW
|
|
| 59. |
DS0025018
|
[2] |
BOLT
|
|
| 60. |
DS0025042
|
[6] |
BOLT
|
|
| 61. |
K1001029
|
[1] |
BOLT
|
|
| 64. |
S2209666
|
[2] |
BOLT
|
|
| 67. |
S5110503
|
[2] |
WASHER
|
|
| 68. |
S8000111
|
[5] |
O-RING
|
|
| 69. |
S8000141
|
[2] |
O-RING
|
|
| 7. |
DS20131589
|
[1] |
|
|
| 70. |
S8000181
|
[3] |
O-RING
|
|
| 71. |
S8030041
|
[6] |
O-RING
|
|
| 72. |
S8030061
|
[2] |
O-RING
|
|
| 73. |
S8030081
|
[4] |
O-RING
|
|
| 8. |
DS2119049
|
[1] |
|
|
