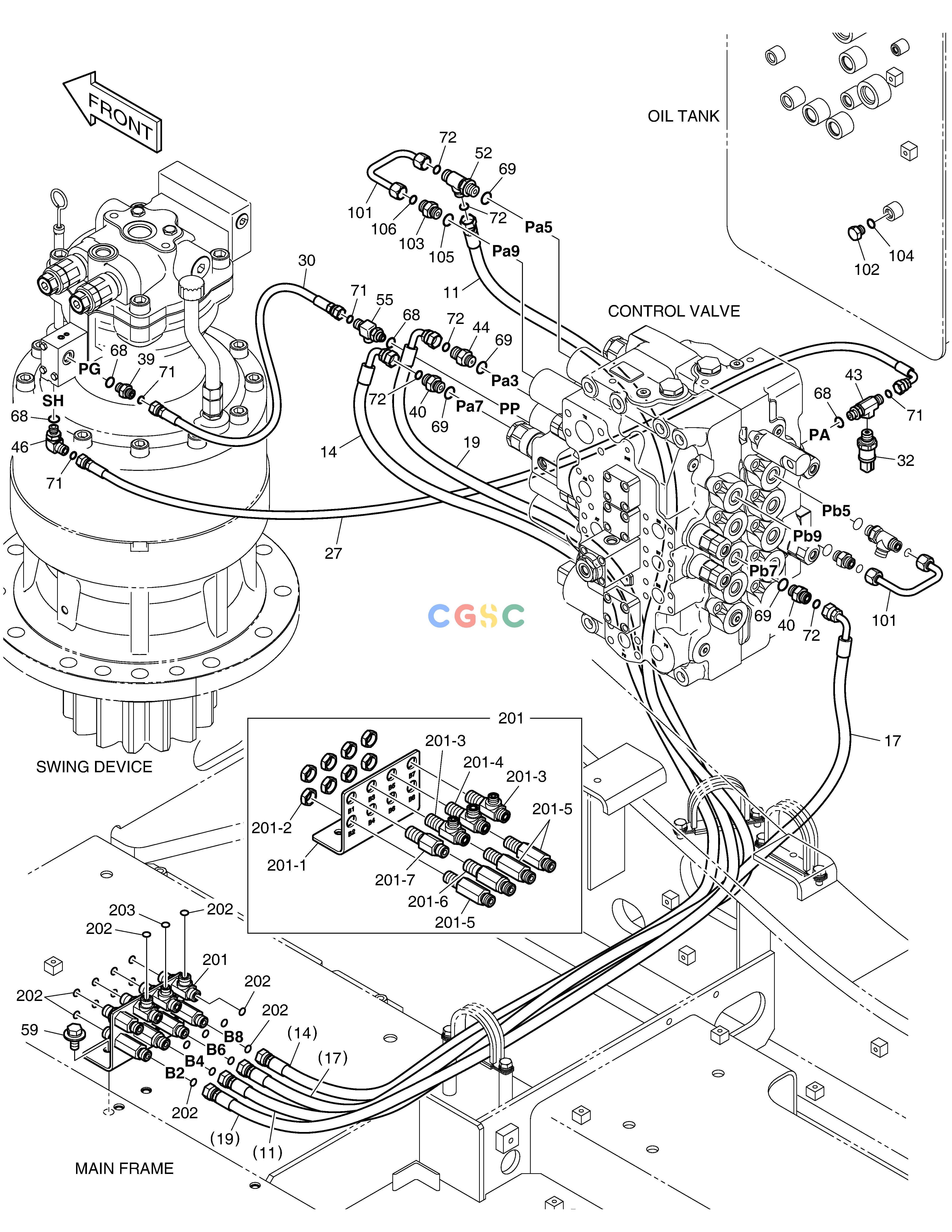

斗山零件查询PILOT PIPING(3) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
180 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08546
|
[-] |
|
|
| 101. |
920403-00071
|
[2] |
|
|
| 102. |
2181-1950D1
|
[1] |
PLUG
|
|
| 103. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 104. |
S8000111
|
[1] |
O-RING
|
|
| 105. |
S8000141
|
[1] |
O-RING
|
|
| 106. |
S8030061
|
[1] |
O-RING
|
|
| 11. |
DS2119239
|
[1] |
|
|
| 14. |
DS2121140
|
[1] |
|
|
| 17. |
DS2121251
|
[1] |
|
|
| 19. |
DS2121287
|
[1] |
|
|
| 201. |
430216-00205
|
[1] |
|
|
| 201-1. |
250122-00080
|
[1] |
|
|
| 201-2. |
DS0301032
|
[8] |
NUT
|
|
| 201-3. |
DS2416002
|
[2] |
|
|
| 201-4. |
DS2416006
|
[1] |
|
|
| 201-5. |
DS2415019
|
[3] |
|
|
| 201-6. |
410133-00003D1
|
[1] |
|
|
| 201-7. |
DS2415021
|
[1] |
|
|
| 202. |
S8030061
|
[18] |
O-RING
|
|
| 203. |
S8030041
|
[1] |
O-RING
|
|
| 27. |
DS2143004
|
[1] |
|
|
| 30. |
DS2144002
|
[1] |
|
|
| 32. |
K1057340
|
[1] |
SENSOR,PRESSURE
|
|
| 39. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 40. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 43. |
430201-00129
|
[1] |
ADAPTER
|
|
| 44. |
DS2413003
|
[1] |
|
|
| 46. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 52. |
181-00121D2
|
[1] |
TEE
|
|
| 55. |
430225-00027
|
[1] |
|
|
| 59. |
DS0025018
|
[2] |
BOLT
|
|
| 68. |
S8000111
|
[4] |
O-RING
|
|
| 69. |
S8000141
|
[4] |
O-RING
|
|
| 71. |
S8030041
|
[4] |
O-RING
|
|
| 72. |
S8030061
|
[5] |
O-RING
|
|
