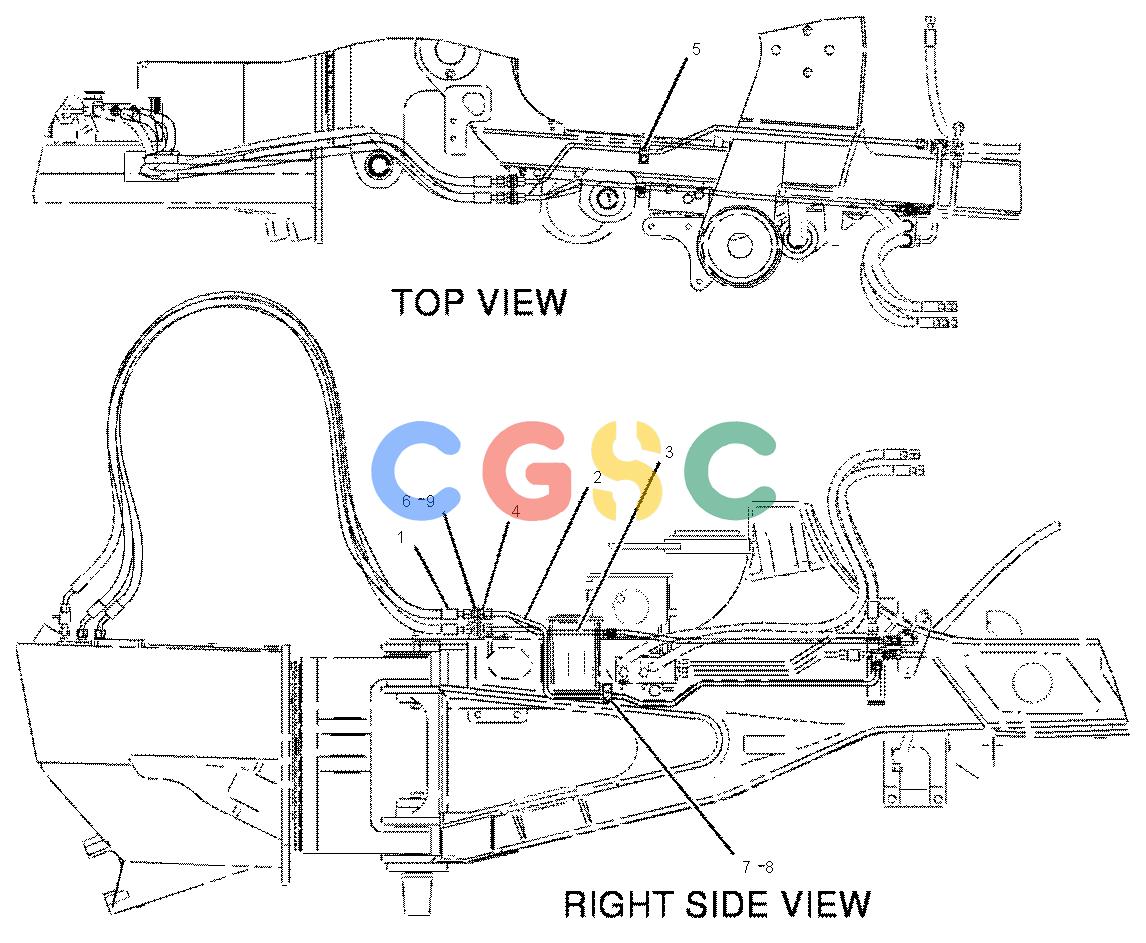

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 179-9407I | [2] | HOSE AS | |
| 2. | 179-9419 | [1] | TUBE AS | |
| 3. | 179-9420 | [1] | TUBE AS | |
| 4. | 148-8457 | [2] | UNION AS(STRAIGHT) | |
| (EACH INCLUDES) | ||||
| 6V-8398 | [2] | SEAL-O-RING | ||
| 6V-8995 | [1] | UNION(STRAIGHT) | ||
| 5. | 3U-2752 | [1] | CLIP(LOOP) | |
| 6. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 7. | 8T-1885 | [1] | CLIP(SLOT) | |
| 8. | 8T-1886 | [1] | CLIP(TAB) | |
| 9. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
