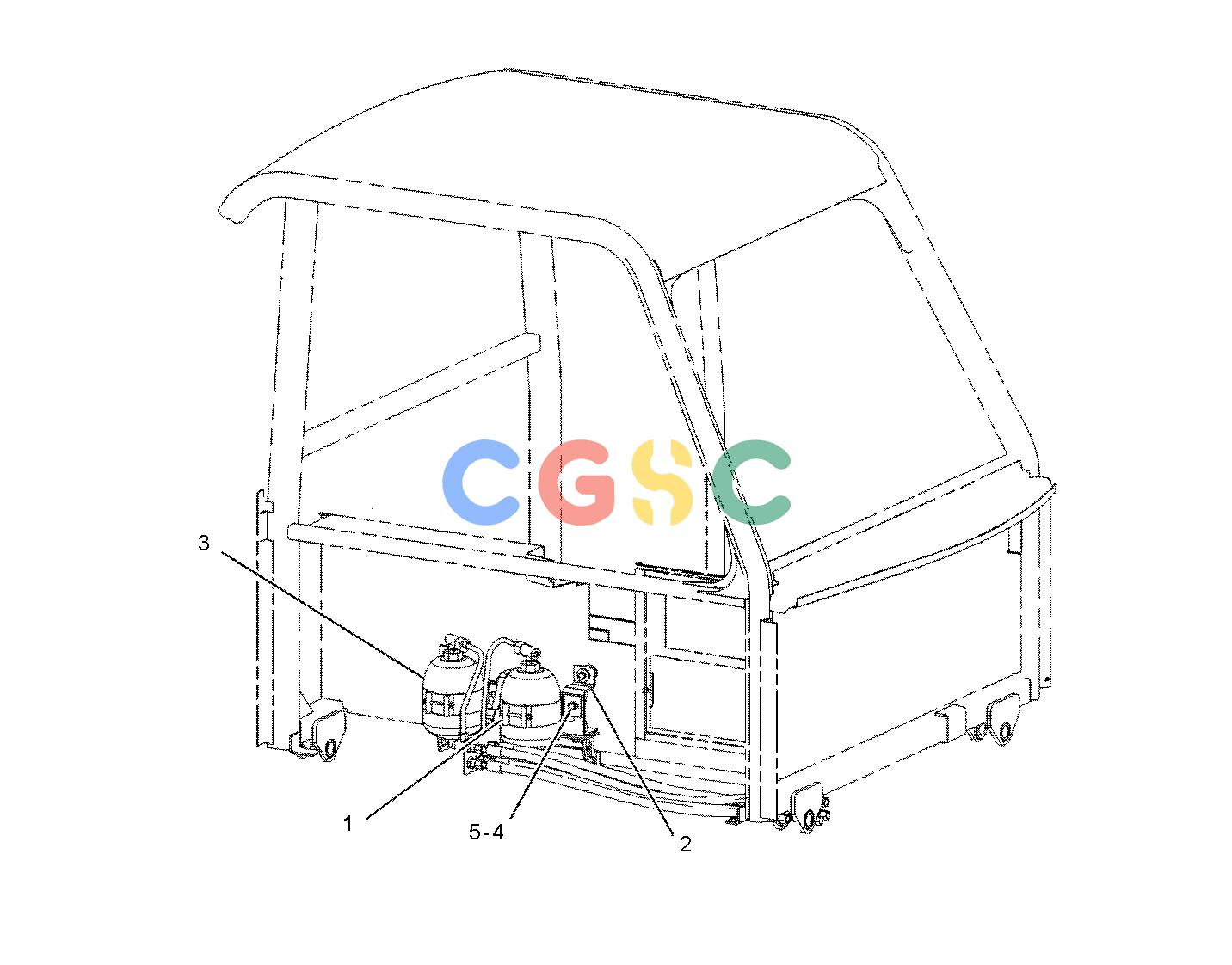

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 163-9417 | [2] | CLAMP AS | |
| 2. | 163-9423 | [1] | PLATE AS | |
| 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | ||
| 3. | 174-3183Y | [2] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 4. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
