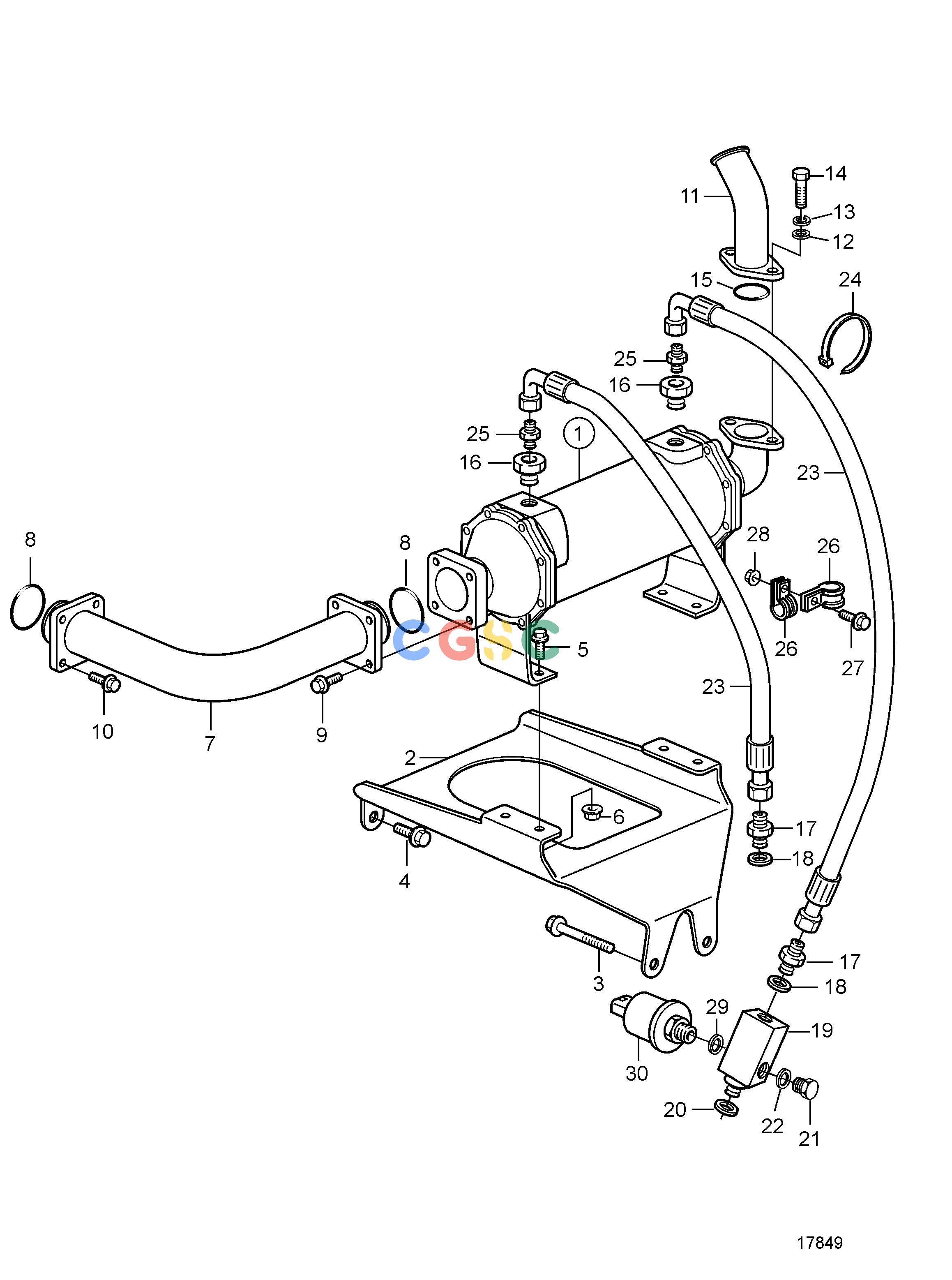

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemOil Cooler for ZF350A-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
990 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3837041
|
[1] |
Bracket
|
|
| 3. |
965190
|
[2] |
Flange screw
|
|
| 4. |
965185
|
[2] |
Flange screw
|
|
| 5. |
946173
|
[4] |
Flange screw
|
|
| 6. |
945408
|
[4] |
Flange nut
|
|
| 7. |
3830105
|
[1] |
Water pipe
|
|
| 8. |
843584
|
[2] |
Gasket
|
|
| 9. |
946173
|
[4] |
Flange screw
|
|
| 10. |
946173
|
[4] |
Flange screw
|
|
| 10. |
947760
|
[4] |
Flange screw
|
For engines in keel cooled version.
|
| 11. |
3828777
|
[1] |
Tube
|
|
| 12. |
191172
|
[2] |
Washer
|
|
| 13. |
941907
|
[2] |
Spring washer
|
|
| 14. |
940135
|
[2] |
Hexagon screw
|
|
| 15. |
925092
|
[1] |
O-ring
|
|
| 16. |
949707
|
[2] |
Reduction nipple
|
|
| 17. |
941751
|
[2] |
Nipple
|
|
| 18. |
976932
|
[2] |
Gasket
|
|
| 19. |
3828349
|
[1] |
X-nipple
|
|
| 20. |
948885
|
[1] |
Gasket
|
|
| 21. |
960632
|
[1] |
Plug
|
|
| 22. |
976931
|
[1] |
Gasket
|
|
| 23. |
3828843
|
[2] |
Hose
|
|
| 24. |
948211
|
[1] |
Cable tie
|
|
| 25. |
981303
|
[2] |
Nipple
|
|
| 26. |
945081
|
[2] |
Clamp
|
|
| 27. |
946173
|
[1] |
Flange screw
|
|
| 28. |
945408
|
[1] |
Flange nut
|
|
| 29. |
948885
|
[1] |
Gasket
|
|
| 30. |
|
|
|
See group 30
|
