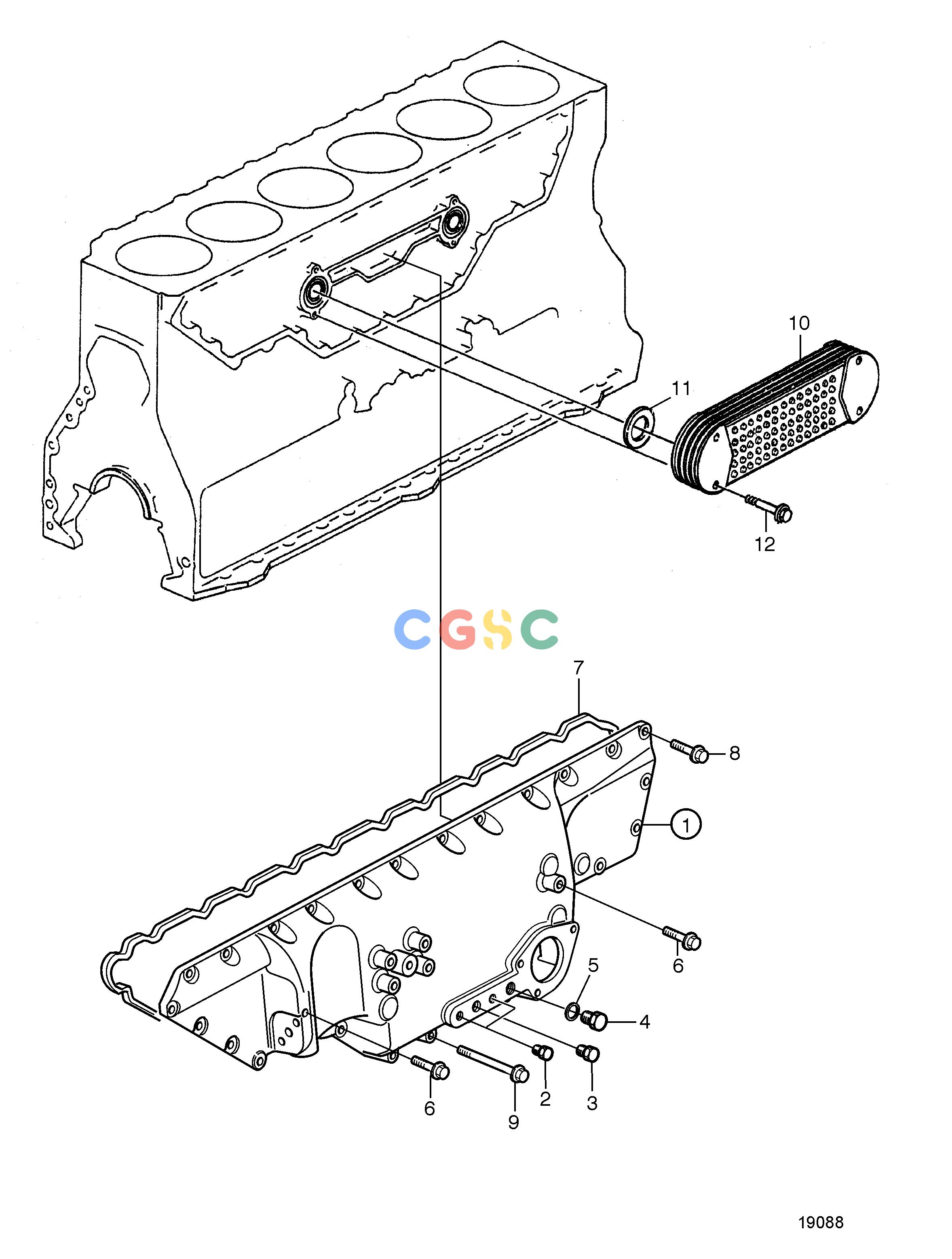

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemOil Cooler, EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841320
|
[1] |
Cover
|
(3832668)
|
| 2. |
479979
|
[2] |
Plug
|
1/8x9,5mm
|
| 3. |
861551
|
[1] |
Plug
|
1/4x14mm
|
| 4. |
960632
|
[1] |
Plug
|
M18x12mm
|
| 5. |
11998
|
[1] |
Gasket
|
|
| 6. |
946440
|
[2] |
Flange screw
|
|
| 7. |
20712545
|
[1] |
Gasket
|
|
| 8. |
945444
|
[22] |
Flange screw
|
|
| 9. |
965180
|
[5] |
Flange screw
|
|
| 10. |
3826589
|
[1] |
Oil cooler
|
|
| 11. |
20551483
|
[2] |
Sealing ring
|
(1677516)
|
| 12. |
981497
|
[4] |
Flange screw
|
|
