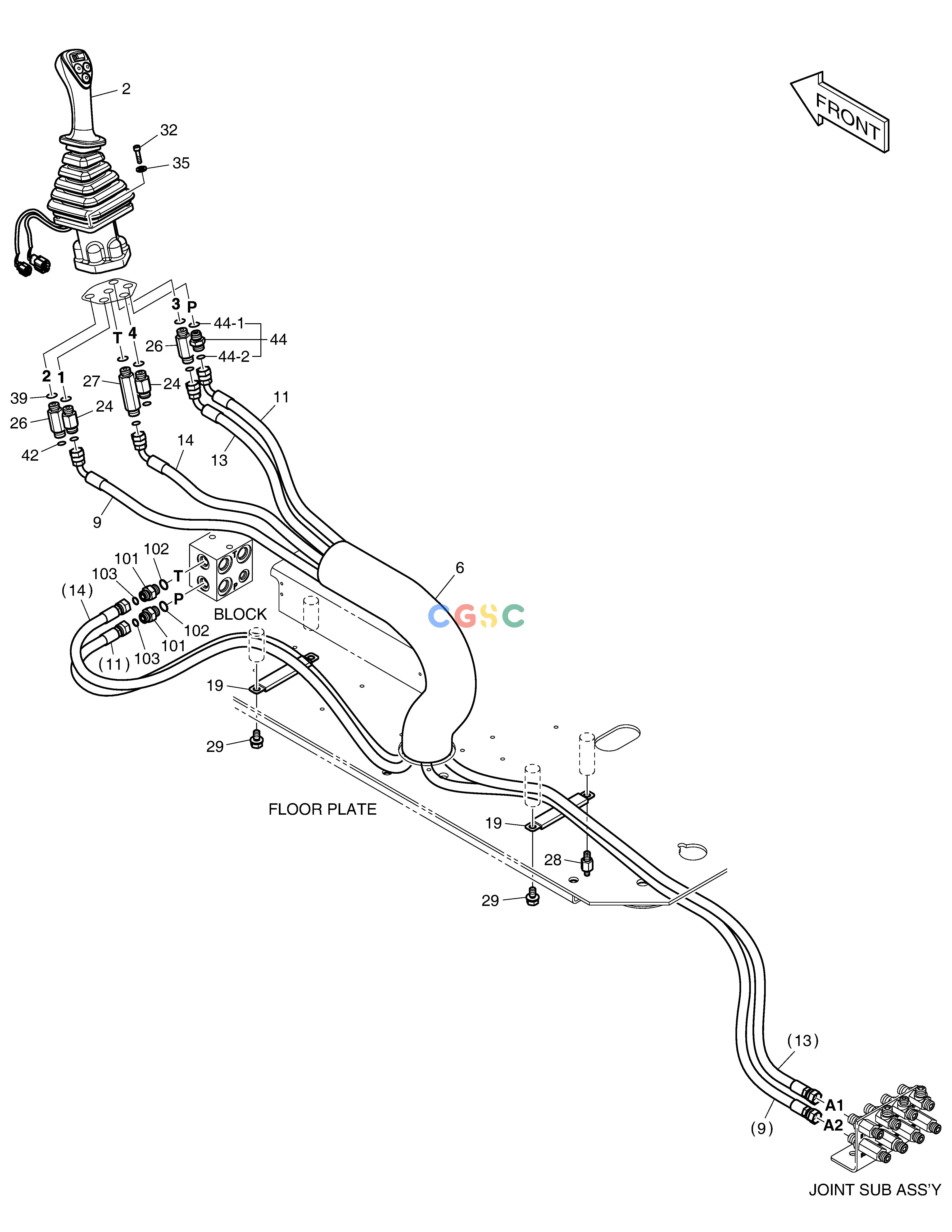

斗山零件查询PILOT PIPING(6) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08588B
|
[-] |
|
|
| 101. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 102. |
S8000141
|
[2] |
O-RING
|
|
| 103. |
S8030061
|
[2] |
O-RING
|
|
| 11. |
DS2113043
|
[1] |
|
|
| 13. |
DS2113050
|
[1] |
|
|
| 14. |
DS2113054
|
[1] |
|
|
| 19. |
120202-00008
|
[2] |
|
|
| 2. |
410113-00211B
|
[1] |
|
|
| 2. |
410113-00211A
|
[1] |
|
|
| 24. |
2181-4133D24
|
[2] |
ADAPTER
|
|
| 26. |
DS2232085
|
[2] |
ADAPTER
|
|
| 27. |
DS2232169
|
[1] |
|
|
| 28. |
DS0014013
|
[1] |
|
|
| 29. |
DS0025042
|
[3] |
BOLT
|
|
| 32. |
S2205066
|
[4] |
BOLT
|
|
| 35. |
S5010313
|
[4] |
WASHER
|
|
| 39. |
S8000141
|
[5] |
O-RING
|
|
| 42. |
S8030061
|
[5] |
O-RING
|
|
| 44. |
300202-00029
|
[1] |
|
|
| 44-1. |
S8000141
|
[1] |
O-RING
|
|
| 44-2. |
S8030161
|
[1] |
O-RING
|
|
| 6. |
K1003945
|
[1] |
PROTECTOR
|
|
| 9. |
DS2113003
|
[1] |
|
|
