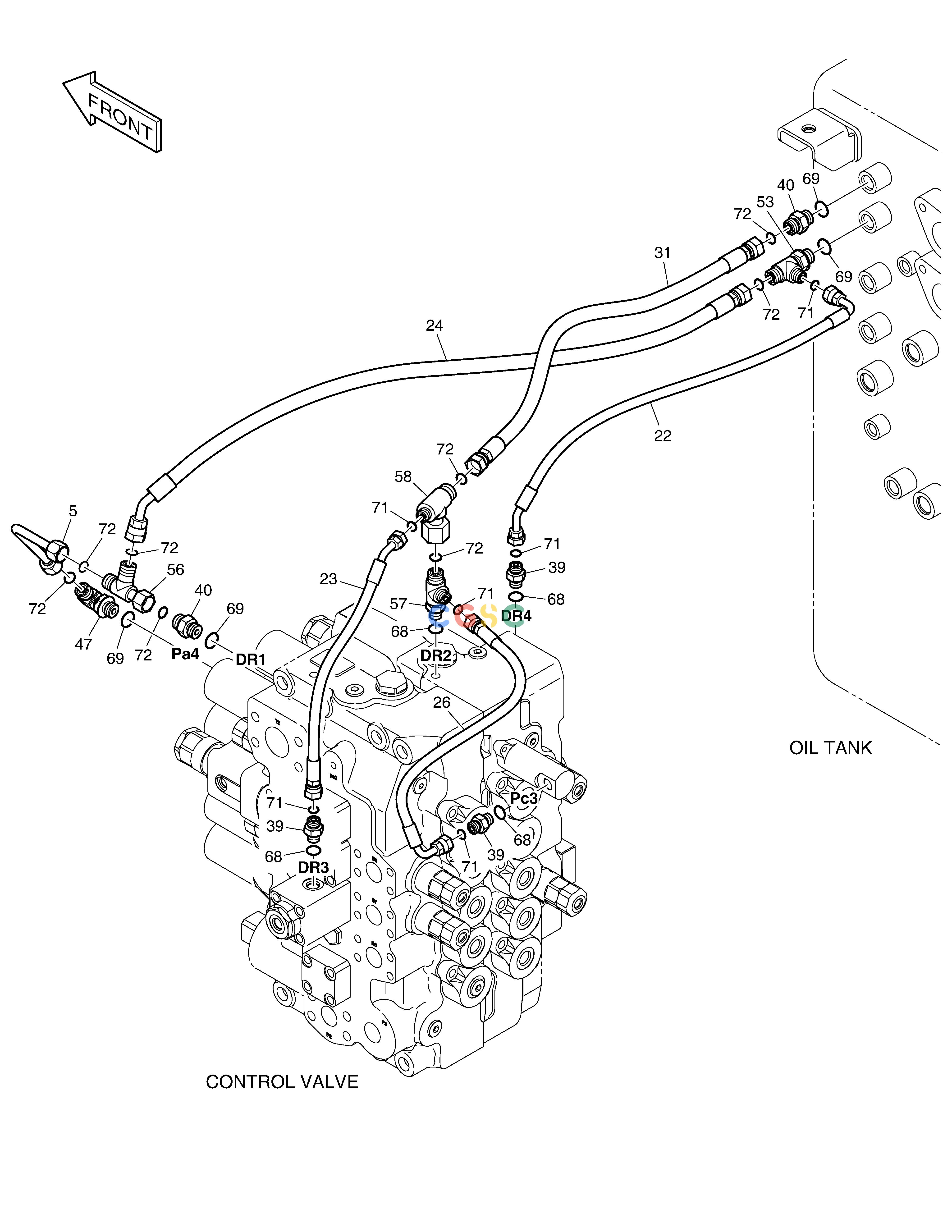

斗山零件查询PILOT PIPING(5) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
902 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08546
|
[-] |
|
|
| 22. |
DS2140005
|
[1] |
|
|
| 23. |
DS2120149
|
[1] |
|
|
| 24. |
DS2142004
|
[1] |
|
|
| 26. |
DS2121339
|
[1] |
|
|
| 31. |
DS2144003
|
[1] |
|
|
| 39. |
2181-4133D1
|
[3] |
ADAPTER
|
|
| 40. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 47. |
2181-2815D6
|
[1] |
ELBOW
|
|
| 5. |
920403-00100
|
[1] |
|
|
| 53. |
181-00121D4
|
[1] |
TEE
|
|
| 56. |
DS2362011
|
[1] |
|
|
| 57. |
DS2412033
|
[1] |
|
|
| 58. |
DS2417010
|
[1] |
|
|
| 68. |
S8000111
|
[4] |
O-RING
|
|
| 69. |
S8000141
|
[4] |
O-RING
|
|
| 71. |
S8030041
|
[6] |
O-RING
|
|
| 72. |
S8030061
|
[9] |
O-RING
|
|
