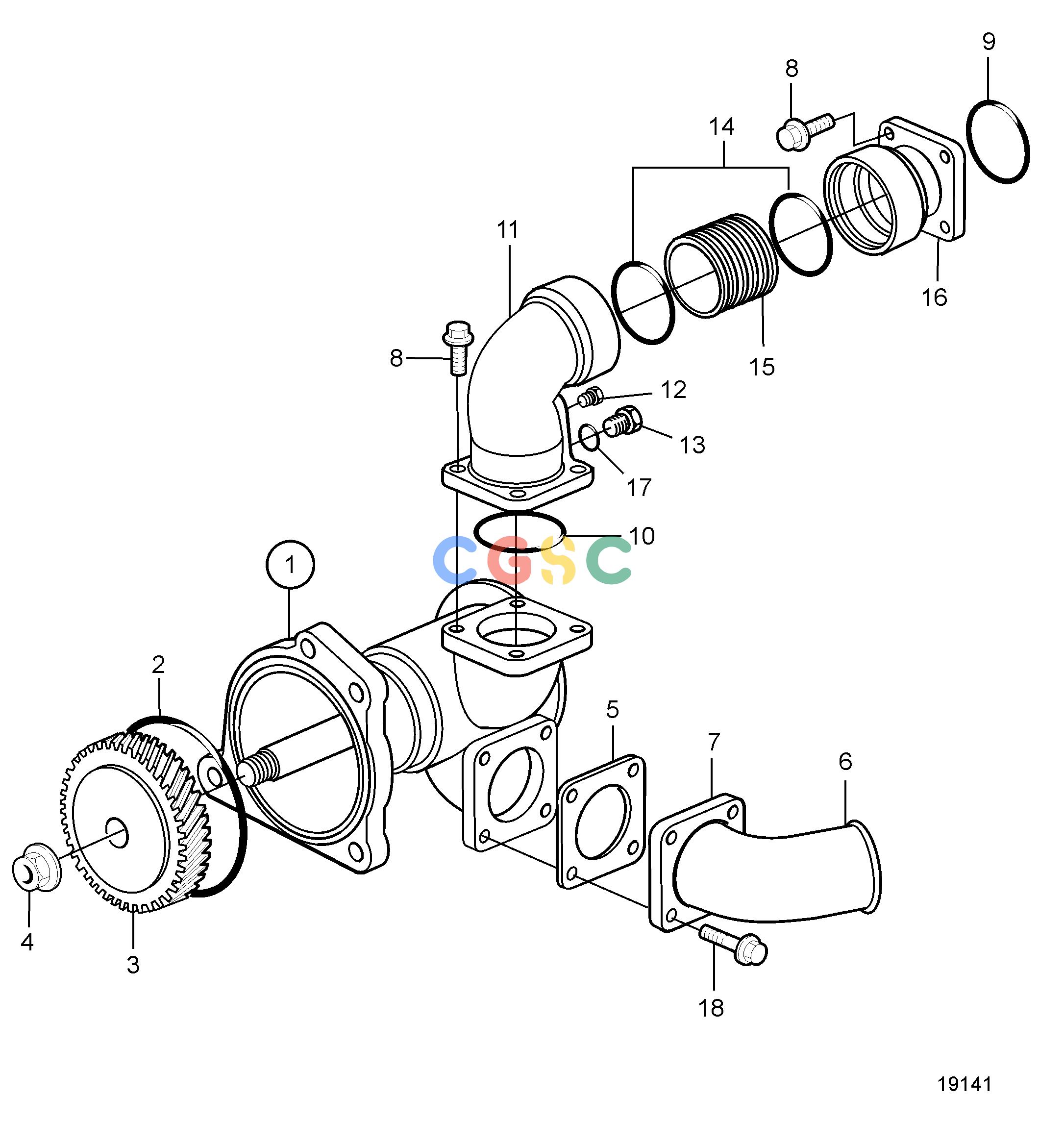

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MCooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3838207
|
[1] |
Sea water pump
|
(865295)
|
| 1. |
|
|
|
|
| 2. |
949736
|
[1] |
O-ring
|
|
| 3. |
865931
|
[1] |
Gear
|
|
| 4. |
955786
|
[1] |
Hexagon nut
|
|
| 5. |
862583
|
[1] |
Gasket
|
|
| 6. |
3828559
|
[1] |
Hose attachment
|
70°
|
| 6. |
842868
|
[1] |
Hose attachment
|
90°
|
| 7. |
842867
|
[1] |
Flange
|
|
| 8. |
946173
|
[8] |
Flange screw
|
|
| 9. |
925072
|
[1] |
O-ring
|
|
| 10. |
925073
|
[1] |
O-ring
|
|
| 11. |
3832782
|
[1] |
Pipe connection
|
|
| 12. |
981749
|
[1] |
Plug
|
|
| 13. |
982293
|
[1] |
Plug
|
|
| 14. |
863209
|
[2] |
Sealing ring
|
|
| 15. |
866610
|
[1] |
Sleeve
|
|
| 16. |
866612
|
[1] |
Pipe connection
|
|
| 17. |
11998
|
[1] |
Gasket
|
|
| 18. |
946441
|
[4] |
Flange screw
|
|
